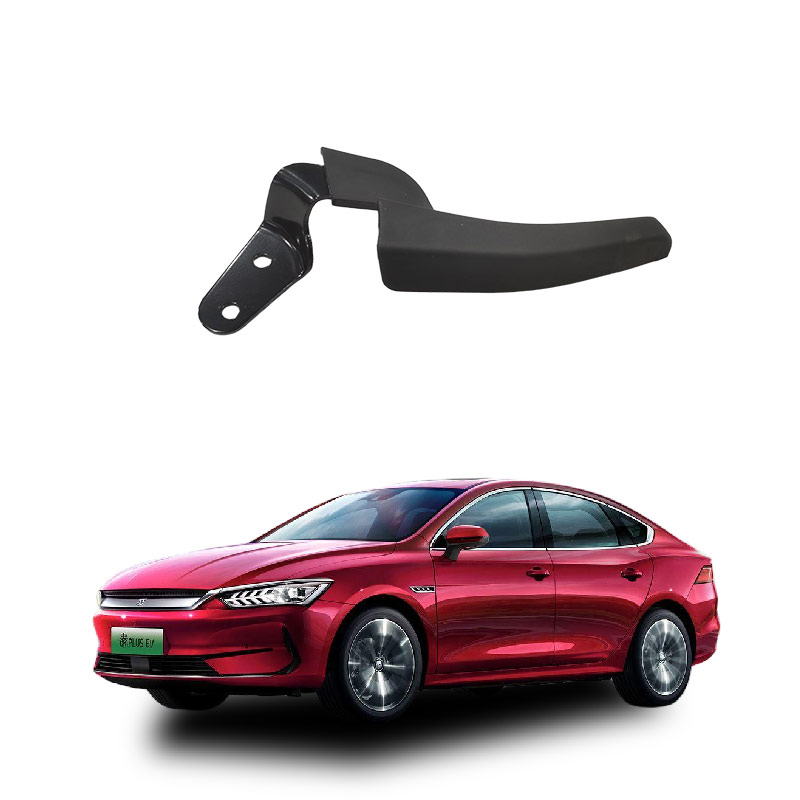

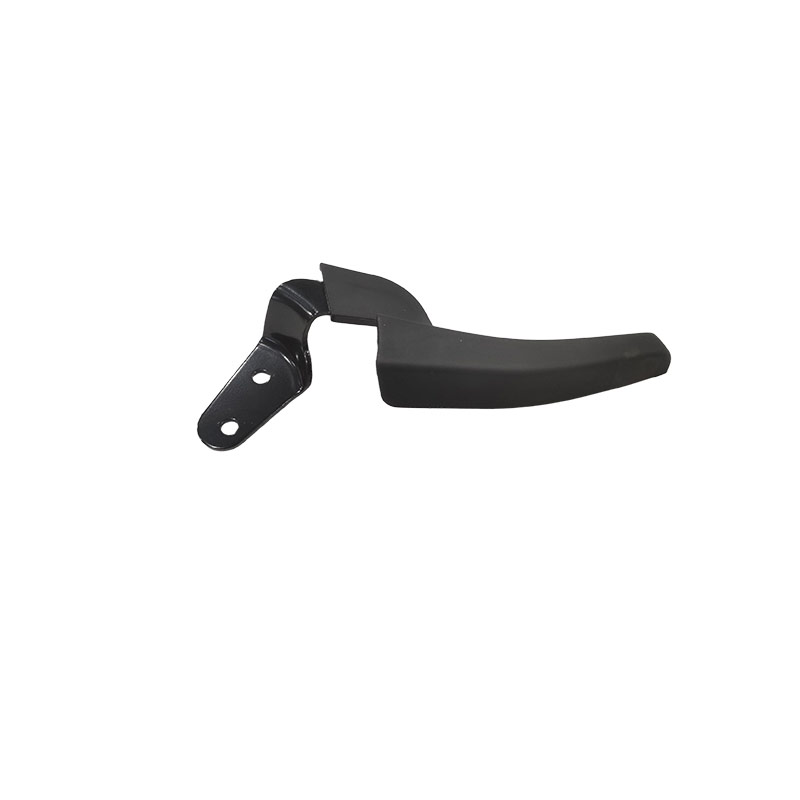

What is the height adjustment handle for the driver's seat in a car?
The height adjustment handle for the driver's seat is a mechanical operation device used to manually adjust the vertical height of the driver's seat. It is usually located on the left side of the seat or on the side, and when pulled or turned, it releases the locking mechanism, allowing the seat to move up and down. Once released, it automatically locks.
It is mostly red or colored handles, making them easy to identify. They are commonly found on manually adjustable seats.
When operating, one needs to lift or turn the handle while applying force to adjust the seat up and down. Once in place, release the handle to lock it.
Not all models have this handle: some use electric buttons (without handles) or only front/back or backrest adjustment.
The position is usually on the left side of the driver's seat near the door, under the cushion or on the side panel. Some models are located at the front edge of the cushion or on the armrest.
It distinguishes from the front and back adjustment handles (usually located below the cushion) and the backrest adjustment handle (usually located at the side angle of the backrest), with independent functions.
If the vehicle has an electric seat, there is no such handle. Instead, it is controlled by side buttons for height adjustment. When adjusting, ensure clear vision, be able to step on the pedal firmly, and keep the arm slightly bent.
The height adjustment handle for the driver's seat (usually a manual lever or handle-type) is linked with the height adjustment mechanism through mechanical locking to achieve height changes. The core principle is to release the locking of the seat guide rail or the scissor/tilt-type lifting frame, then adjust by applying force and relying on gravity or spring return. Release the handle to automatically lock.
Manual handle structure: The handle is connected to an internal ratchet or latch mechanism. When lifted or pressed down, it disengages the meshing teeth between the seat frame and the guide rail or lifting frame. At this point, the cushion can be manually raised or lowered (using gravity or built-in springs for assistance); after releasing the handle, the spring or mechanical latch bites the toothed groove to lock the position.
Common types: Mostly scissor-type lifting frame or a combination of a toothed guide rail and a lever unlock mechanism. The handle is equivalent to a "clutch" that does not directly drive the lifting but only releases the lock; some models use gear teeth and a gear rack, where the rotating handle (not a lever) moves the gear rack to achieve lifting.
Operation logic: Lifting the handle usually raises the seat, and pressing down (or pulling back) lowers it. One should gently press the body to assist the movement; after adjustment, shake the seat to confirm the lock and prevent sliding during driving.
No power intervention: It is a purely mechanical structure, not relying on motors or hydraulics. It relies on human force to overcome friction and locking force, and amplifies the operating torque through levers.
Electric adjustment is completely different (buttons → motor → screw). However， the issue specifically refers to the handle， so only the mechanical principle applies.
If the height adjustment handle of the driver's seat malfunctions， it is mostly a problem with the manual mechanical structure. One can first check if the locking screw of the seat frame is loose or stuck， then check if the adjustment lever and the gear rack are disengaged， if the latch is broken or if there is an object stuck； if it is purely manually adjustable (without a motor)， there is no need to check fuses or circuits.
First， loosen the locking screw beside the seat frame (usually on the seat's exterior or front)； try to lift or lower the seat manually； if it works， it indicates that the screw is too tight or the locking mechanism has triggered by mistake. Adjust to the appropriate height and then re-lock it.
If the screw is normal but the handle cannot be turned or the seat does not move， it may be that the adjusting gear/rack is not meshing properly， the plastic latch is broken， or the adjustment lever is detached - remove the seat side cover (be careful to pry open) to check if the connecting parts are intact. A slight jam can be lubricated with a silicone-based lubricant (do not use engine oil).
Check if there are any foreign objects (coins， bottle caps， debris) stuck in the guide rail or adjustment mechanism； move the seat to the extreme position to assist in cleaning.
If the adjustment lever is completely broken， the gear is shattered， or the seat frame is deformed， repairing it yourself is difficult and risky. It is recommended to have it handled by a professional auto repair shop to avoid damaging the guide rail or creating safety hazards through violent operation. Note: The manual seats have no motors or fuses. If the vehicle is equipped with "electric height adjustment", it belongs to a different fault system (requiring inspection of the motor, wiring, and switches), but if the problem specifically mentions "handle", it should be a manual structure.
If the above attempts still fail, or if there is a need for metal parts to be broken or welded, do not forcibly adjust. Contact a maintenance professional as soon as possible; temporarily, you can manually adjust to the usable height and use a cable tie or locking screw (if the original locking screw is still usable) to make a simple fix to ensure driving safety.
