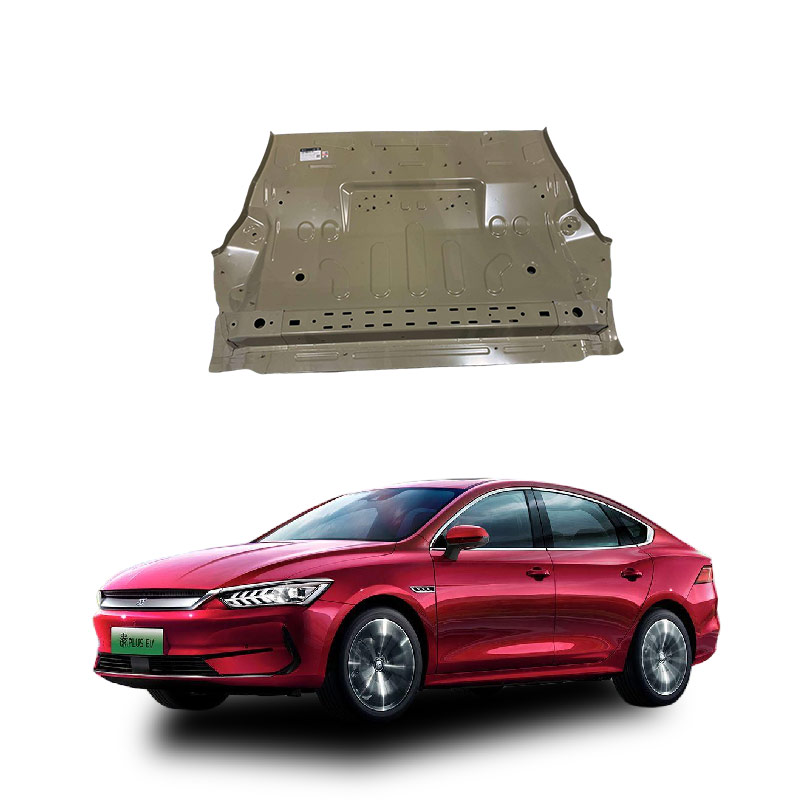

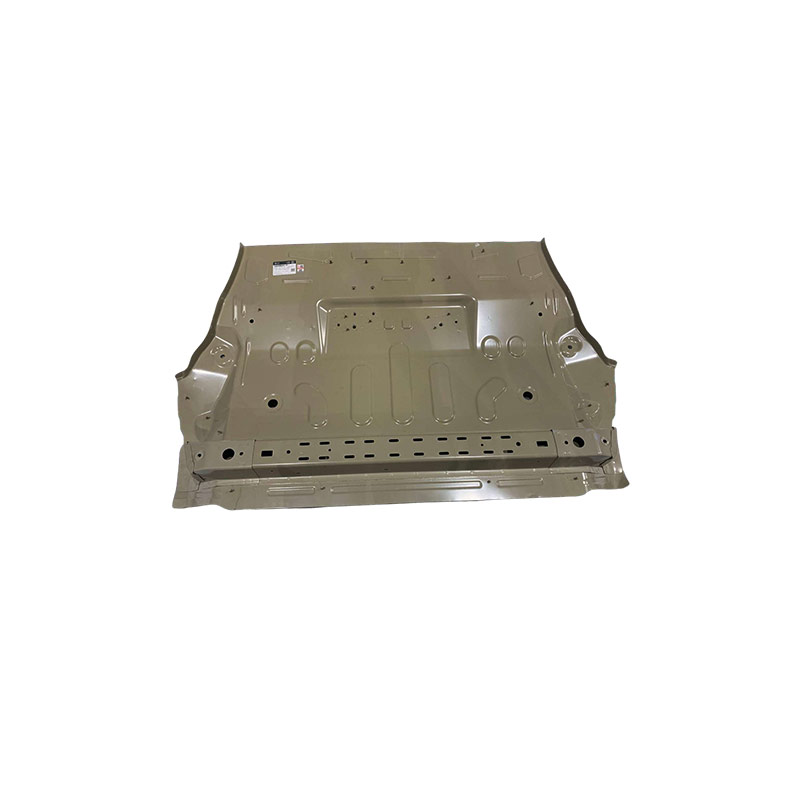

What are the components of the mid-floor of a car?
"Medium-sized floor assembly" is not a standard automotive engineering term. It usually refers to the main structural components of the floor assembly of mid-sized vehicles (such as sedans and compact SUVs), classified according to the white body structure as follows:
- Front floor assembly (including front floor panels, front floor beams, seat crossbeams, floor reinforcement plates)
- Middle floor assembly (the main body of the passenger compartment, often integrated with the front and rear floors, including side threshold reinforcement pieces, central passage/ transmission shaft cavities)
- Rear floor assembly (including rear floor panels, rear beams, rear crossbeams, trunk floor support structure)
- Threshold beams (left and right longitudinal load-bearing components, connecting the front/middle/rear floors, participating in collision force transmission)
- Central passage (for manual transmission/ rear-wheel drive/four-wheel drive vehicles, it has a raised structure, accommodating the transmission shaft or exhaust pipe; for front-wheel drive vehicles, it is often flat or slightly concave)
Note: If the question intends to refer to the "underbody floor" (unloaded body), it belongs to the body structure rather than the chassis component; if it refers to the "interior floor" (such as carpets, floor mats, guard plates), it does not belong to the structural components. Mid-sized vehicles usually do not refer to "medium-sized floor assemblies" alone, but are divided according to the front/middle/rear floor assemblies. In modern trends, some models adopt "integrated floor casting or integrated floor" (such as CTB battery body integration), with a reduced number of structural components, but the above basic divisions are still applicable.
The main functions of the medium-sized vehicle floor assemblies (usually referring to the front and rear floor assemblies, which are the core structural components of the vehicle bottom) are: to bear passengers and components, to build vehicle rigidity, to ensure collision safety, to support system layout, and to participate in NVH control.
Structural load-bearing and rigid support: As a key load-bearing component of the white body, connecting the front/rear floors, thresholds, beams, etc., it bears the weight of seats, passengers, and luggage, and enhances the torsional and bending stiffness of the entire vehicle.
Safety protection: In rear collisions, it protects the fuel tank, battery (especially for EVs) and passenger space; the raised areas (such as the rear row) are often used to accommodate the transmission shaft or exhaust pipe, and at the same time enhance the local bending resistance of the floor.
System integration platform: Provides electrical wiring, hydraulic pipelines (such as braking, fuel), exhaust system and suspension mounting points; in pure electric vehicles, it may integrate the battery pack (such as CTB technology).
NVH performance contribution: Cooperates with sound insulation/damping materials to block road noise and vibration; the closed cavity structure can assist in acoustic absorption.
Space and comfort foundation: Forms the floor of the passenger compartment, affecting the legroom and seating posture; mid-sized vehicles usually retain a moderate central bulge to balance the transmission layout and rigidity, and some models (such as MPVs or pure electric vehicles) tend to a flat design.
"Medium-sized" usually refers to the vehicle model level (such as B-class sedans or mid-sized SUVs), and its floor assemblies have a material (high-strength steel/aluminum), structural complexity and functional integration level between compact and large vehicles, but the core function is the same. If referring specifically to "middle floor" (such as the connection section of the front and rear floors), it focuses on transitional stiffness and installation point coordination.
"Medium-sized vehicle floor assemblies" usually refer to the middle floor (the bottom structure of the passenger compartment), if damaged, it is necessary to immediately assess whether it affects structural safety or chassis pipelines; minor damage can be repaired locally, severe deformation/corrosion/puncture must be welded or replaced by a professional shop, do not ignore the risk of rust spread.
First, confirm the nature of the damage: is it the damage of the interior carpet/ floor glue (only aesthetic/sound insulation issues), or is it the "metal body floor" (including reinforcement beams, crossbeams) with "rust penetration, depression, cracks"? The latter concerns the vehicle's rigidity and safety.
Minor damage (small area rust spots, non-penetrating scratches): Remove rust thoroughly → sanding → apply anti-rust primer + chassis armor, can be handled by yourself.
Moderate damage (a few centimeter-sized holes, local deformation but not affecting the wiring harness/oil tank/seat mounting points): Professional sheet metal cutting patching and carbon dioxide protection welding are required. It is recommended to find a repair shop that is not an 4S store but is skilled in body repair (original factory parts are usually not sold separately for the floor pan).
Severe damage (structural component fractures, large-scale corrosion, affecting suspension/transmission system installation): The entire floor pan assembly must be replaced. The vehicle needs to be lifted, the interior/decorative seats need to be removed. The repair should be carried out by a repair shop with white body welding qualifications. After the repair, four-wheel alignment and safety checks are required.
Do not delay: Rust on the floor pan will spread rapidly, weakening the body's torsional stiffness, and posing a danger to the passenger compartment in case of a collision. If the primer is visible or the metal is exposed, rust prevention treatment should be done within 72 hours.
If only referring to foot mats or PVC floor coverings (non-structural components), the damaged area can be cut out and a new sheet can be glued on with special adhesive, or the entire floor pan can be replaced (decoration seats need to be removed for construction).
If it is not possible to determine whether it is a "structural component damage", lift the vehicle and shine a flashlight on the floor pan (the area from the front seat to the front of the rear seat) to observe if there are honeycomb rust, obvious dents or light-transmitting holes - if so, stop driving immediately and tow it to a professional shop. Do not weld by yourself to avoid damaging airbag lines or pipes. Brand 4S stores can use original floor pan parts but the price is high; independent body repair shops have better cost performance and need to confirm that they have CO₂ welding qualifications and are compatible with the model.
