What is the assembly component of the automotive combination instrument?

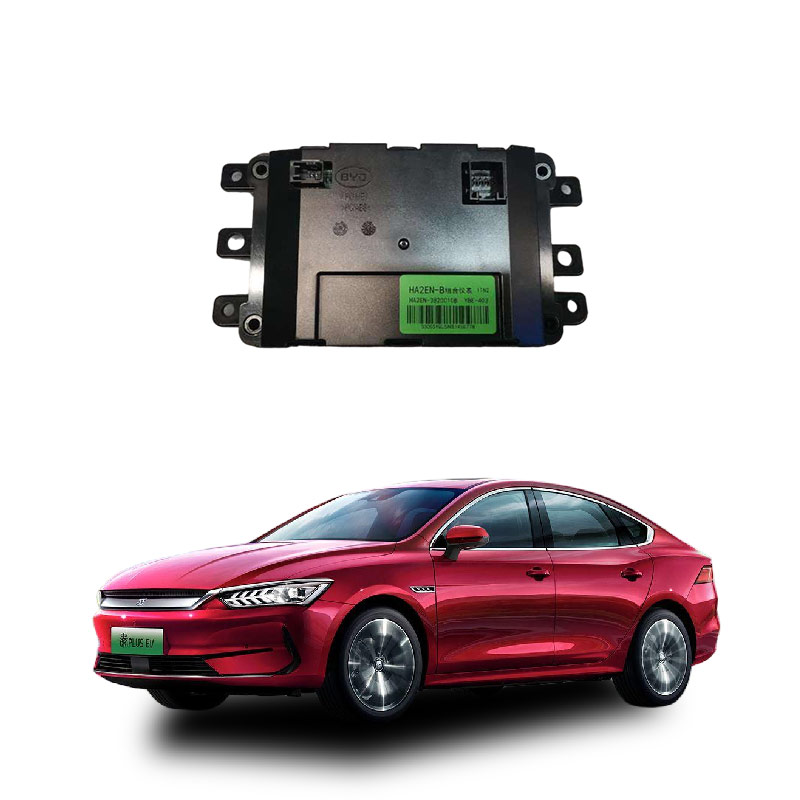

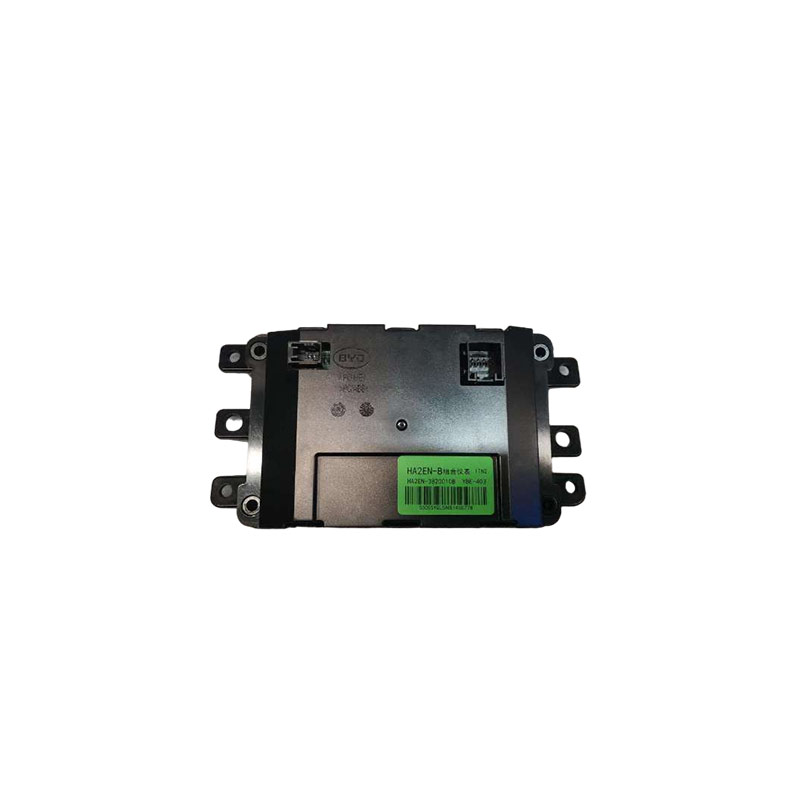

"Automobile assembly instrument assembly parts" should typically be referred to as "automobile assembly instrument assembly parts", which refers to an instrument assembly unit that integrates functions such as vehicle speed, engine speed, fuel quantity, water temperature, etc., along with alarm lights, and is composed of components such as covers, circuit boards, movement cores, connectors, indicators, microcontrollers (MCU), etc., which are pre-assembled into modular components.
Essentially: It is a combined instrument (Cluster) in the automotive instrument system and belongs to a combined component (a functional module pre-installed according to technical requirements from multiple parts/sets). It is not a standalone "instrument".
Core components: Printed circuit board (PCB), stepper motor/LCD/OLED display, cover and base shell, alarm buzzer, connector (wiring harness interface), various pointer or digital display units (such as vehicle speed, engine speed, fuel, water temperature gauge), and fault indicator lights.
The meaning of "assembly parts": In the classification of automotive components, a combined component refers to a module assembled from several parts or sets that needs to be coordinated with other systems of the vehicle (such as ECU, sensors, wiring harness) to function properly; an assembly part is more broadly defined as a pre-assembled unit completed during the manufacturing process. These terms are often used interchangeably, but a combined instrument is a typical functional combined component.
Note: If referring to "dashboard assembly", it includes the combined instrument, center console, storage box, airbags, etc., covering a larger range of interior structures; while "combined instrument" only refers to the information display module in front of the driver.
In daily contexts, "combined instrument" should be referred to as "combined instrument" (Instrument Cluster), which is a key human-vehicle interaction interface, not an independent working device, and must be connected to the vehicle's electrical and signal systems.
"Automobile assembly instrument assembly parts" should typically be referred to as "automobile assembly instrument assembly unit", whose core function is to centrally display key vehicle operating parameters and fault warning information, ensuring the driver's real-time perception of the vehicle condition and safe operation.
Core display of operating data: including vehicle speed, engine speed, fuel quantity, coolant temperature, cumulative/running mileage, etc.
Integration of faults and status warnings: through LED/icon lights (such as oil pressure, battery charging, ABS, airbag, door not closed, etc.) to indicate system abnormalities, accompanied by sound alarms, if applicable.
Core interface for human-vehicle interaction: as the first information source for the driver to obtain vehicle status, it supports decision-making (such as shifting gears, entering the station for refueling, fault parking).
Modular electronic integrated system: Modern combined instruments are composed of PCB circuit boards, stepper motors/LCD screens, MCUs, CAN bus interfaces, etc., which uniformly interpret sensor and ECU signals to ensure synchronous, accurate, and timely information.
It should be noted: "Combined instrument assembly parts" is not a standard term - if referring to "combined instrument assembly unit" (instrument cluster), as mentioned above; if mistakenly referring to "combined switch" (steering/ignition/wiper control lever) or "wiring harness connector assembly", the functions are completely different. Based on the context and industry standard expressions, here it is interpreted as "combined instrument".
"Automobile assembly instrument assembly parts failure" typically refers to abnormalities in the dashboard (combined instrument) and its integrated components (such as sensors, wiring, communication modules), causing incorrect illumination of indicators, black screen of the display, malfunction of pointers or incorrect information display, not necessarily being a failure of the instrument itself, but more likely a related system failure.
Common causes: fuse blowout, loose or corroded wiring/hubs, sensor failures (such as vehicle speed/oil pressure/battery sensor), CAN network communication interruption (such as HS2CAN), damage to the internal circuitry/display of the instrument, or mechanical connection problems (for older mechanical speedometers). Some cases are "false faults" - that is, other system malfunctions are correctly detected and alerted by the instrument, rather than an actual fault of the instrument itself.
Typical manifestations: Multiple warning lights are constantly on (such as for oil, battery, ABS), the instrument screen goes black, the speed/rpm pointers remain stationary, mileage resets abnormally, accompanied by abnormal noises or functional failures (such as power steering assistance).
Initial troubleshooting: First, check the instrument-related fuses, battery voltage, and whether the connectors are loose; if it's a new oil change, confirm if the maintenance reminder has reset; avoid disassembling the instrument itself; in most cases, reading the fault codes (OBD diagnosis) is necessary to locate the true source.
Note: Modern vehicle dashboard instruments highly rely on network communication. Installing additional equipment, getting waterlogged, being hit, or having poor grounding (such as corroded common grounding wires) often cause chain failures. If only a few lights are abnormal (such as the turn signal), it may be a problem with the bulb or switch, not the instrument itself. If the instrument continues to malfunction, accompanied by power limit torque or safety system alarms (such as ESP, airbag lights), do not continue driving; instead, tow it to a professional repair shop to use a diagnostic tool to read all vehicle fault codes to avoid misjudgment and replacing a costly instrument without addressing the root cause. For older models (from 2000 to 2010), if it's a mechanical speedometer, check if the soft shaft is broken, bent, or lacking oil; for electronic fuel-injected vehicles, almost all are electronic, and there is no soft shaft, so the faults are mostly in the electrical/communication category.
