What is the front-mounted millimeter-wave radar bracket for the car?

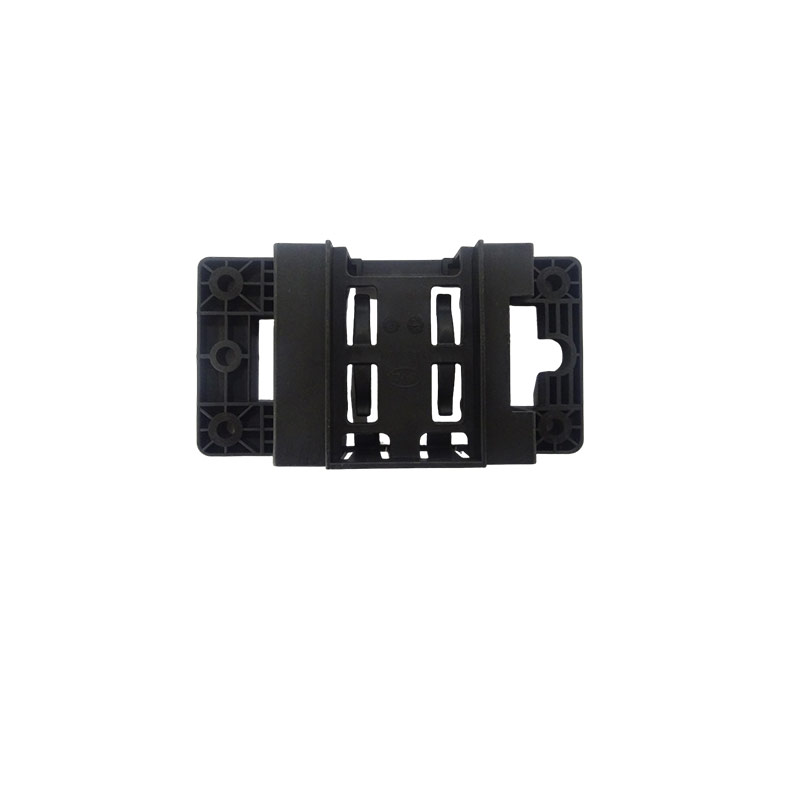

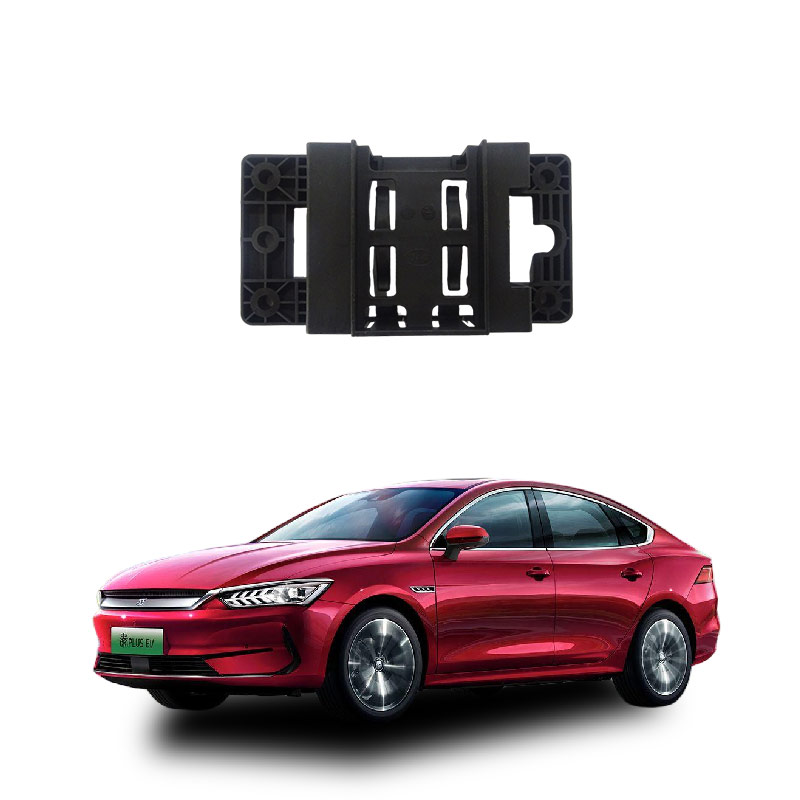

The front-mounted millimeter-wave radar bracket is a dedicated installation structure used to fix the millimeter-wave radar sensor on the vehicle's front bumper or impact bar, ensuring its precise orientation and stable detection performance. It is typically made of metal or high-strength plastic and is usually installed behind the front grille, inside the front bumper, or at the front end of the impact bar, corresponding to the forward field of view required by ADAS functions (such as AEB, ACC). It serves as a mechanical support, shock absorption, angle adjustment, and electromagnetic window shielding, ensuring that the radar beam is unobstructed and does not deviate.
Different vehicle models (such as BMW iX7, Shagang trucks, etc.) have specific part numbers (such as AZ9X25580113), designed to match the radar model and vehicle structure; some come with adjustable steering arms to calibrate the pitch/yaw angles.
It is a non-independent functional component, only serving as a sensor carrier, and its accuracy directly affects the reliability of systems such as automatic emergency braking and adaptive cruise control.
In summary, it is the "base" of the millimeter-wave radar, ensuring that the radar "can see accurately and stand firmly".
The core function of the car's front-mounted millimeter-wave radar bracket is to ensure that the radar is precisely fixed at the designated position (such as the front bumper or grille), maintaining the horizontal angle and coverage of the detection beam, and ensuring the stable and reliable operation of ADAS functions (such as ACC, AEB, FCW).
Precise positioning and angle calibration: The bracket ensures that the radar installation height, pitch (pitch), and roll (roll) tolerances are within ±4.5°, avoiding detection blind spots or false alarms due to vehicle vibration or collision displacement.
Structural protection and stability: It buffers impacts from the road (such as bumps, minor collisions), preventing the radar from loosening, cracking, or signal attenuation, especially in non-original equipment installation or after aftermarket modification scenarios.
Signal path guarantee: By matching the vehicle's surface and the coverings (such as the bumper) with a gap (usually 20–30mm), it reduces radar wave reflection/refraction interference, ensuring smooth transmission/reception of 77–79GHz electromagnetic waves.
Adaptability and compatibility: Special vehicle-specific brackets can adapt to different vehicle model's installation holes, wiring routes, and appearance fit, avoiding forced installation that may cause the radar to fail or have an appearance damage.
If the original factory part is missing or damaged and replaced randomly (such as with glue or non-standard clamps), the radar beam direction may shift, causing delayed automatic braking or failure of adaptive cruise control; the bracket itself does not participate in perception, but it is a necessary supporting component for the radar to remain "straight" and "unloose". After installation, professional dynamic calibration is usually required to restore the system's normal function.
Car front-mounted millimeter-wave radar bracket failures are typically manifested as radar position deviation, restricted ACC/automatic braking functions, or frequent reports of "radar obstruction/ calibration abnormal", the fundamental reason being that the bracket deformation, fracture, or loosening causes the detection angle to be inaccurate.
First, check the appearance: Check if the millimeter-wave radar (usually located under the grille or at the front lip) has cracked, shifted due to an accident or bump, or tilted/loosened due to the radar body.
Exclude obstruction and contamination: Clean the radar surface (dirt, snow, insect corpses, film/vehicle coating), but if the bracket is already broken, cleaning is ineffective.
Read fault codes: Use a diagnostic tool (such as VCDS, iCarSoft or 4S store equipment) to check if it reports "radar installation position abnormal", "calibration failure", "signal deviation", etc., and the bracket problem often accompanies no physical damage but the calibration cannot be saved.
Do not self-adjust: If the bracket is deformed, it needs to be replaced or the assembly replaced, and professional repair shops should use an optical calibration board + dedicated diagnostic instrument to re-calibrate (ordinary sheet metal shops usually do not have this capability).
Do not forcibly reset: If the bracket is broken or loose, ignoring the fault or restarting the system will cause ACC, AEB, etc. safety functions to fail, and there is a risk of collision while driving.
If there was a collision with significant impact: Even if there are no obvious dents, the deformation of the front longitudinal beam or water tank frame may indirectly affect the radar bracket, requiring a comprehensive judgment of four-wheel alignment and radar angle detection.
If it is only slightly loose without breaking, some models can temporarily tighten it (requiring the removal of the front bumper), but it is still recommended to replace the original factory bracket and calibrate it in the long term; if the bracket breaks, the radar assembly usually needs to be replaced at the same time (due to integrated installation). It is recommended to handle it as soon as possible at a brand-authorized repair center or a specialized repair shop with radar calibration capabilities to avoid further misalignment caused by self-disassembly.
