Automobile side stabilizer bar assembly - What is the assembly component of the assembly?
The "side stabilizer assembly" (commonly referred to as "lateral stabilizer assembly") is a complete assembly in the suspension system used to suppress vehicle body side roll. It typically includes the stabilizer bar body, bushings, brackets, and connecting rods (with ball joints) that link the left and right suspensions.
Core Function: During turns or uneven single-side road conditions, the bar body undergoes torsional deformation to generate counteracting torque, reducing lateral body roll and enhancing handling stability and tire grip.

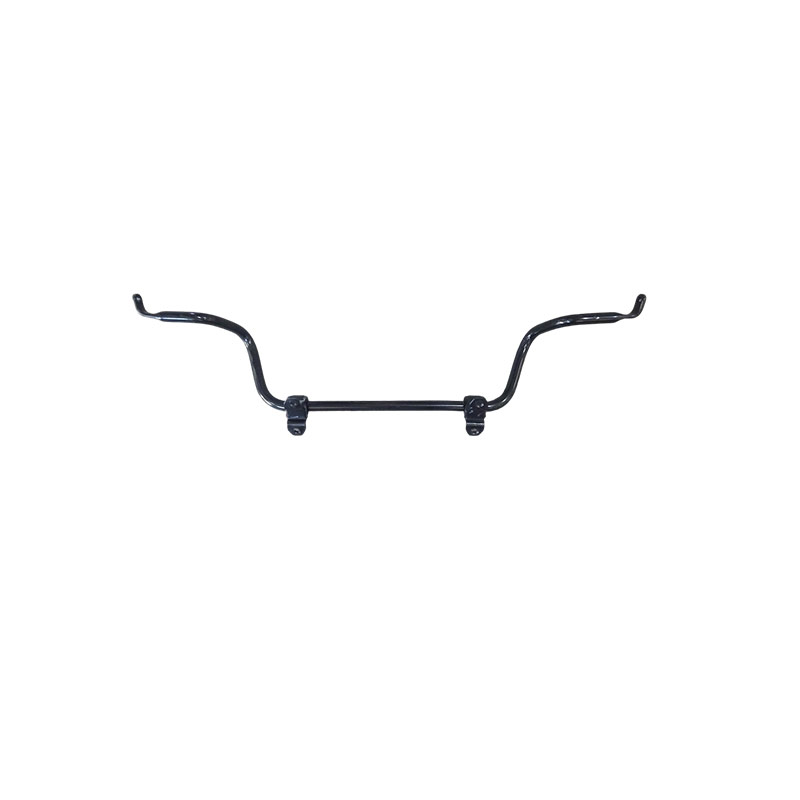

Typical Components: U-shaped spring steel bar body (hinged to the frame via a rubber bushing in the middle), left and right side stabilizer connecting rods (with ball stud joints, connecting to the lower control arm or shock absorber bracket), fixed bushings and brackets.
"Assembly" Meaning: Refers to a complete module that has pre-installed bushings, connecting rods, and fasteners, distinguishable from the "stabilizer bar body" which only refers to the bar body.
Note: "Side stabilizer" is not "steering tie rod"; the latter belongs to the steering system, while the former belongs to the suspension system, and their functions and structures are completely different.
This assembly does not participate in steering or bearing vehicle weight, but only intervenes when there is a relative displacement difference between the two sides of the suspensions, serving as an auxiliary elastic element. If the connecting rod ball joint is worn or the bushing is aged, it can cause abnormal noise, steering wander or increased side roll, requiring the entire assembly to be replaced to ensure performance.
The side stabilizer assembly (also known as anti-roll bar assembly) is a lateral torsion bar spring component in the suspension system. Its core function is to suppress vehicle body side roll during turns or uneven single-side road conditions, generating counteracting torque through torsional deformation, reducing lateral body roll, balancing the load on the left and right wheels, and thereby enhancing handling stability, grip, and ride comfort.
Suppressing Roll: During vehicle turns, the outer suspension is compressed and the inner suspension is stretched. The stabilizer bar twists to generate anti-roll torque, reducing the roll amplitude of the vehicle body (measured to reduce 30%–50% of the roll angle), and lowering the risk of rollover.
Improving Grip and Handling: Limiting the change in wheel spacing, allowing the tires to more evenly contact the ground, enhancing cornering traction, braking response, and steering accuracy.
Improving Comfort: When uneven road surfaces cause asynchronous bouncing of the left and right suspensions, the stabilizer assembly intervenes slightly to reduce lateral body swaying, improving comfort (without affecting the vertical shock absorption function of the independent suspension).
Collaborating with Safety Systems: Working in conjunction with electronic stability systems like ESP, shortening the time for the vehicle body to return to the center during emergency avoidance, enhancing dynamic safety.
The stabilizer assembly usually includes the U-shaped bar body, rubber bushings (hinge seats), connecting rods, and ball joints, only engaging when there is a difference in displacement between the two sides of the suspensions; it does not exert force during straight driving or synchronous bumps. If the rubber bushing ages or the connecting rod breaks, it can cause abnormal noise, increased side roll, or even loss of control, requiring regular inspection.
The failure of the side stabilizer assembly (including connecting rods, rubber bushings, brackets, etc.) typically manifests as abnormal noises in the chassis, increased side roll during steering, unstable handling, and abnormal tire wear (often unilateral wear), accompanied by chassis noises and steering deviation.
Common Damaged Components: Wear of stabilizer connecting rod ball joints, aging and cracking of rubber bushings, bracket fractures (especially after impact or rust), loose fasteners; note: The stabilizer body (metal bar) rarely fractures, and most failures are due to connection component failures.
Consequences: Decreased ability to suppress roll → Uneven tire contact area → Reduced braking/steering stability; long-term operation with a faulty system can accelerate wear of shock absorbers, tie rods, and steering components, and in extreme cases (such as bracket fractures), it can cause the connecting rod to swing and scrape the tires or chassis.
Handling Principle: Do not continue to drive at high speed or with intense acceleration; Inspect the movement clearance of the connecting rod, whether the rubber sleeve is bulging or cracked, and whether the bracket is cracked; usually, the entire assembly (including the ball joint and the rubber sleeve) needs to be replaced. Replacing only the rubber sleeve is prone to recurrence. After replacement, it is recommended to perform four-wheel alignment.
Distinguishing point: Do not confuse with the failure of the electronic stability system (ESP/VSC) - the stabilizer assembly is a mechanical suspension component, and its failure will not light up the ESP indicator, but if the connecting rod breaks and touches the wiring or sensors, it may indirectly trigger an electronic alarm.
If obvious abnormal sounds or control abnormalities have occurred, it is recommended to have it checked by a professional repair shop as soon as possible to avoid accidents caused by the failure of suspension components. Daily, you can also check the condition of the stabilizer rubber sleeve together with the chassis inspection (such as during maintenance).
