What is the mid-size floor component of a car?

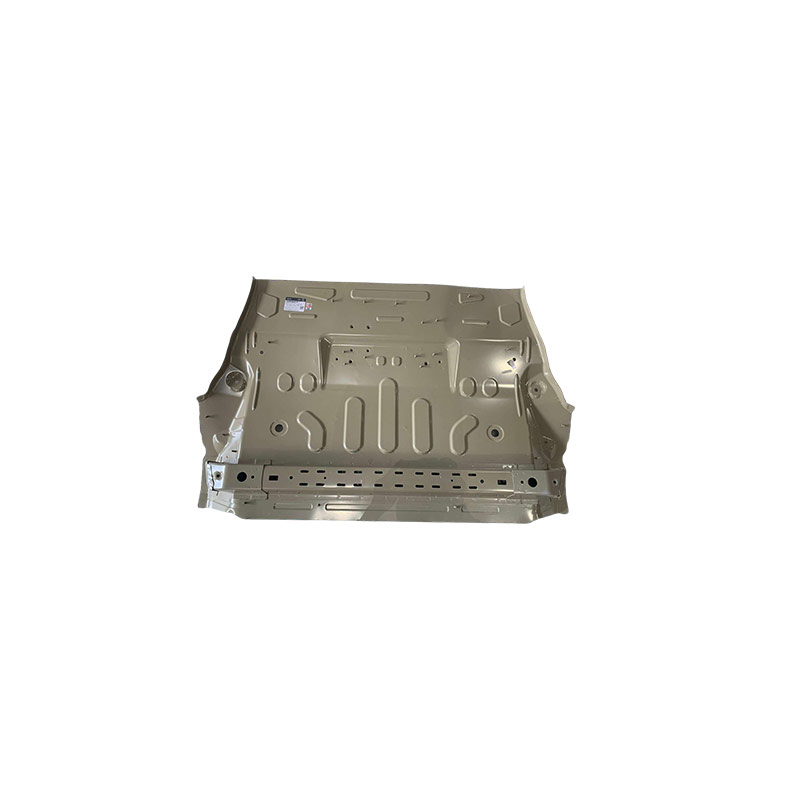

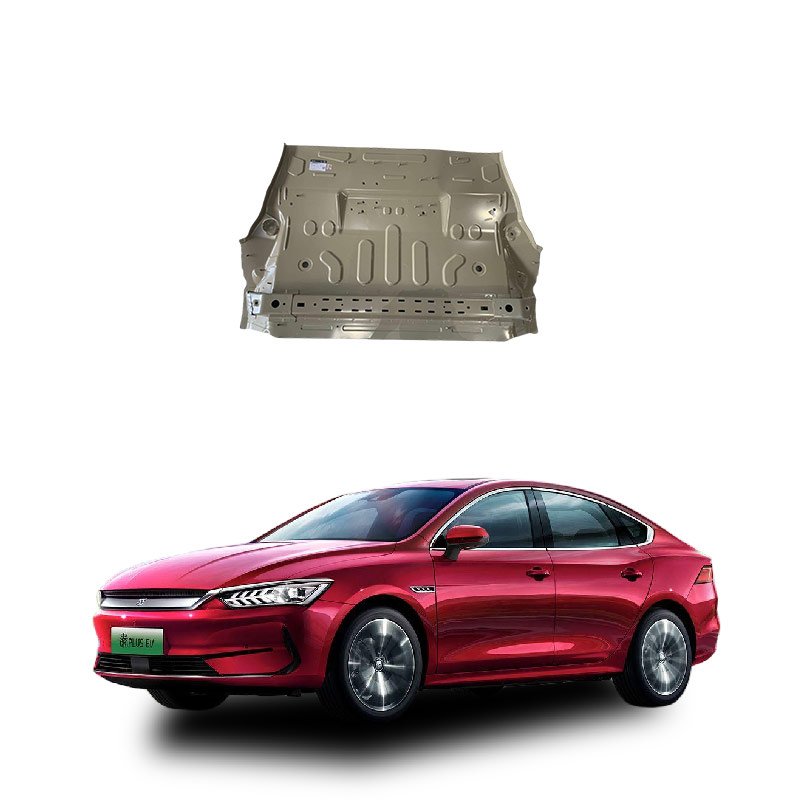

The term "mid-size floor component" is not a standard one. It usually refers to "middle floor assembly" (Middle Floor Assembly) - the core load-bearing structure part of the vehicle floor that lies between the front and rear floors, located below the passenger compartment in the middle.
Position and Function: The middle floor assembly connects the front and rear floors, supporting the rear seats, central aisle, transmission shaft (in fuel vehicles) or battery/electric drive (in electric vehicles), and bearing the vehicle's torsional stiffness, load transfer, and collision safety responsibilities. It often integrates seat mounting points, seat belt fixation points, and wiring/pipe channels.
Component Structure: Generally, it includes the middle floor frame assembly (such as left and right side beams, middle channel, and cross beams) and the middle floor panel. Some designs may include reinforcing ribs, energy absorption crush zones, or hollow/one-piece die-cast structures for lightweighting; modern models (especially electric vehicles) may be integrated with the battery pack and base plate (such as the CTB technology).
Terminology Clarification: "Mid-size" can be misleading as it refers to a size category, but it actually means "middle floor"; if referring to "mid-size floor components for vehicles", it is in a vehicle classification context rather than a structural definition. In public materials, it is often called "middle floor assembly", which is one of the three floor segments (front/middle/rear) of the body-in-white (BIW).
Materials and Trends: Traditionally, it was high-strength steel stamping parts. The new trend is to use aluminum extrusion profiles, sheet metal welding plates, or integrated die-casting, balancing stiffness and weight reduction (as described in patent CN201822022328.X, the middle floor assembly contains aluminum extruded side beams).
If referring to a product of a certain brand/supplier's "mid-size floor component" (such as for mid-sized sedans), it needs to be confirmed based on the specific vehicle platform, but there is no floor type classification of "mid-size" in engineering; the standard division is always the front/middle/rear floor assemblies.
"Mid-size floor component" is not a standard automotive term. It usually refers to the front/middle/rear floors of the vehicle body or chassis-related structural components. If faulty, it is often manifested as rust, cracking, deformation, abnormal noise, or sealing failure, mostly caused by corrosion, collision, or aging.
Corrosion perforation: Long-term dampness, salt fog or blocked drainage holes cause steel plate corrosion, especially on the inner side of the wheel arch, the， and the connection points of the longitudinal beams. This is common in old vehicles or areas where salt is spread in winter.
Structural deformation/rupture： Due to accidents， bottoming out， long-term overloading or material fatigue， the floor may have local depressions or weld cracks， which may affect the body's rigidity and safety.
Strange noises or looseness：of rubber bushings， dislocation of brackets or loosening of bolts (such as the rear seat fixation points， transmission shaft guard plates)， resulting in clicking sounds or vibrations during driving.
Sealing failure and water leakage： Aging floor waterproof glue or poor sealing of the line hole causes water to enter the cabin during rainy days， mold on the carpet， and short circuits of electronic components (such as the ECU baseplate rusting).
Misjudged as "chassis system fault indicator"： If the instrument lights up like "ESP" or "RSC" lights， it is usually related to the suspension/sensors/electronic stability system， rather than the floor itself； use a decoding tool to read the fault codes for distinction.
If referring to the vehicle floor (rather than chassis components)， the key checks are： whether the drainage holes are blocked， whether there are scratches on the wheel compartment/oil tank guard plates， and whether there are new depressions or welding marks under the floor. Minor rust can be ground and coated with anti-rust agent， while severe perforations require cutting and replacement with professional welding； for structural damage (such as longitudinal beams， firewall)， it is not allowed to repair by oneself， and an evaluation of vehicle safety in the factory is required.
If the actual symptoms are driving noises， abnormal handling or fault lights on， it is more likely to be caused by chassis accessories such as the subframe， suspension support， transmission shaft guard plates， etc. It is recommended to lift the vehicle for visual inspection + reading the fault codes (if any)， and do not confuse "floor" with "chassis system".
If it is indeed a "floor water leakage/rust problem" announced by the manufacturer (such as defects in the design of the high-position brake lights of some vehicle models)， check if the VIN is within the recall range.
