What is the panoramic front-view imaging module for automobiles?
The automotive panoramic front-view imaging module is the front-view camera and its associated signal processing unit specifically for the vehicle's front part in the 360° panoramic surround-view system (AVM), used to capture wide-angle (typically fisheye lens) images of the vehicle's front and assist in generating bird's-eye bird's-eye views for parking, low-speed maneuvering, or identifying nearby obstacles.
Function positioning: It is not an independent "panoramic" system but a front-end input module of the panoramic system, usually working in conjunction with left, right, and rear cameras; some models also support activating the front view image independently (such as by pressing the hazard warning light or shifting into low gear).

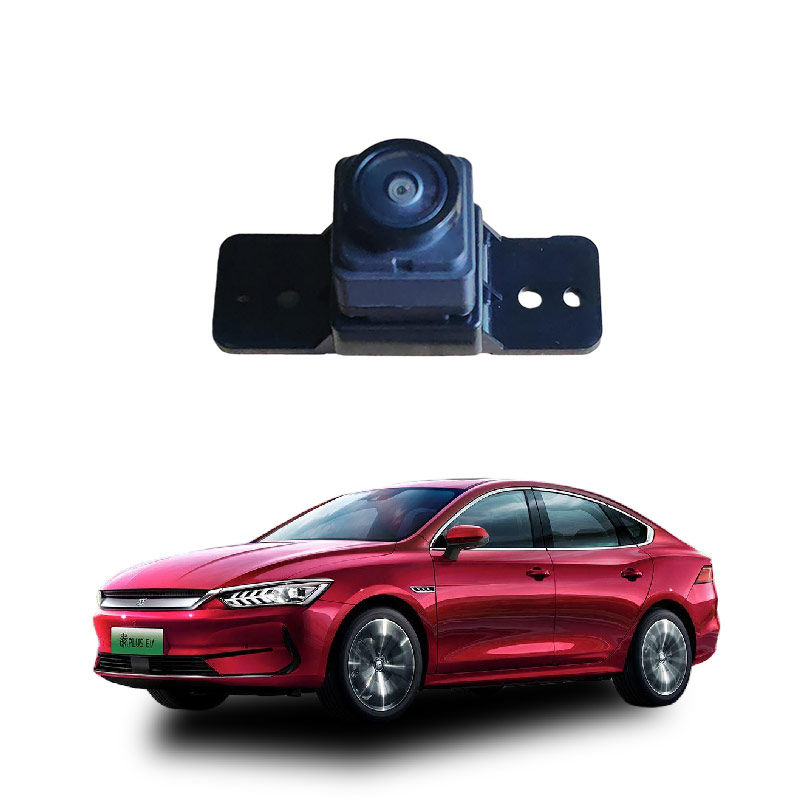

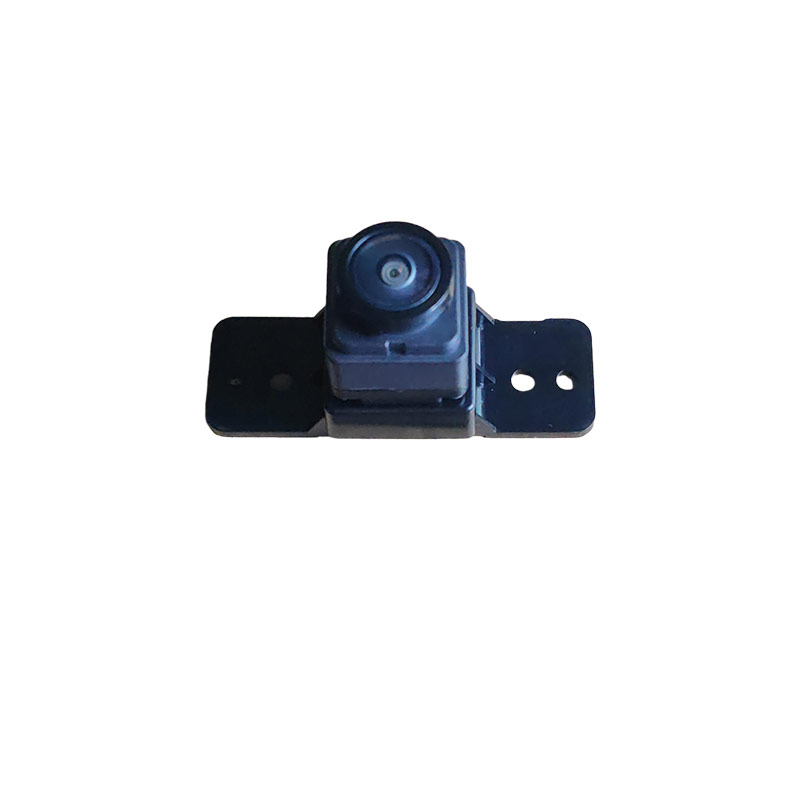

Hardware composition: It includes a vehicle-grade wide-angle (120°–180° field of view) camera module (often integrated into the front grille, front bumper, or below the rearview mirror), an image sensor (such as CMOS), distortion correction and pre-processing circuits, and complies with reliability standards for vehicle use, such as temperature, vibration, and EMC.
Core function: It addresses the blind areas of the A-pillar and the lower edge of the front bumper, providing real-time images of the front and sides in narrow parking spaces, on shoulders, or when approaching pedestrians or low obstacles; its data is processed by the panoramic surround-view control module and combined with other camera images for distortion removal, projection transformation, and generation of a "top bird's-eye view".
Note distinction: If only referring to "front view camera" (Forward Camera) without the stitching function, it belongs to the ADAS basic perception module (used for lane keeping, automatic braking, etc.), not equivalent to the panoramic front-view imaging module; the latter must participate in multi-angle fusion output.
This module does not provide "360° panoramic" alone but is one of the key input sources of the panoramic system; modern advanced systems (such as those supporting dynamic guiding lines or 3D perspectives) will also integrate ultrasonic radar or IMU data to enhance accuracy.
The panoramic front-view imaging module (usually referring to the front camera in the 360° panoramic imaging system) core function is: eliminating the blind areas in front of the vehicle's front and on the A-pillars, assisting with low-speed parking, narrow lane merging, and obstacle recognition, improving parking and driving safety.
It provides real-time presentation of the front and side views of the vehicle's front and sides, covering areas that traditional rearview mirrors and the naked eye cannot see, such as curb edges, low posts, children, pets, or low obstacles.
It is combined with the images of the left and right rear cameras to generate a bird's-eye bird's-eye view on the central control screen, dynamically displaying the wheel trajectory lines, accurately determining the distance between the front wheels and obstacles (especially for side parking, loading, etc.).
It is automatically activated at low speeds (typically ≤ 30 km/h), supporting multi-angle switching such as front view, side view, and undercarriage perspective, helping to pass through parking garages, narrow lanes, ramps, or uneven road surfaces, avoiding scraping the chassis or front bumper.
Some systems integrate a driving record function, and the front-view module can simultaneously record the front road conditions, providing evidence for accidents; vibrations after engine shutdown may also trigger anti-theft monitoring.
It does not replace the active safety system (such as AEB); it serves as visual assistance, with a delay of approximately 0.3 seconds and image stitching distortion, and drivers still need to combine observation and judgment during driving.
It should be noted: "Panoramic front-view imaging module" itself is a part of the 360° panoramic system; when referring to "front view" alone, it usually refers to the front camera component of this system, rather than an independent front view radar or ADAS function; if a vehicle only has "reverse imaging" without panoramic, there is no front view fusion function.
