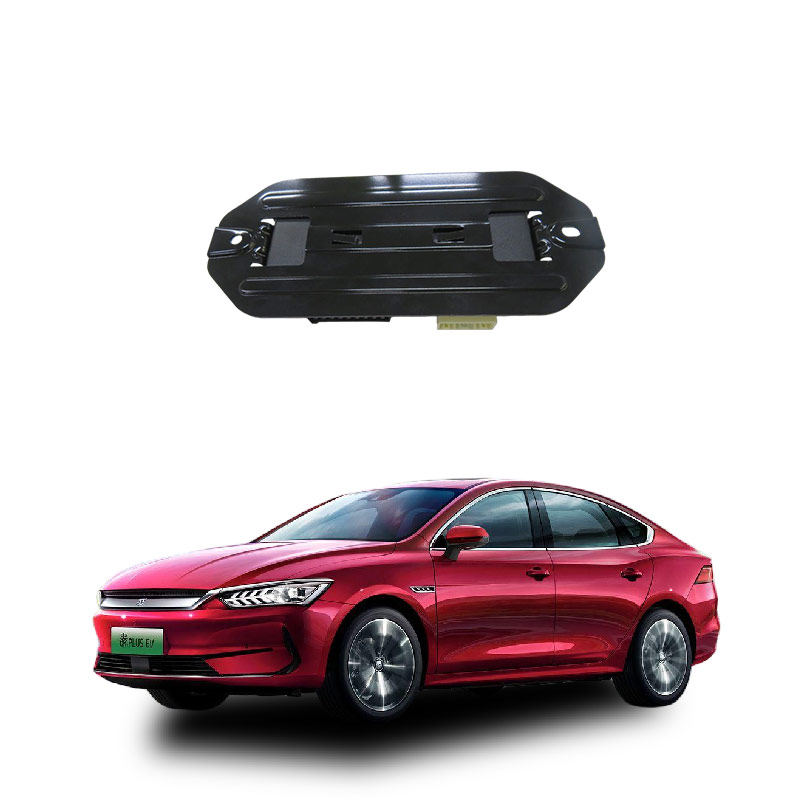

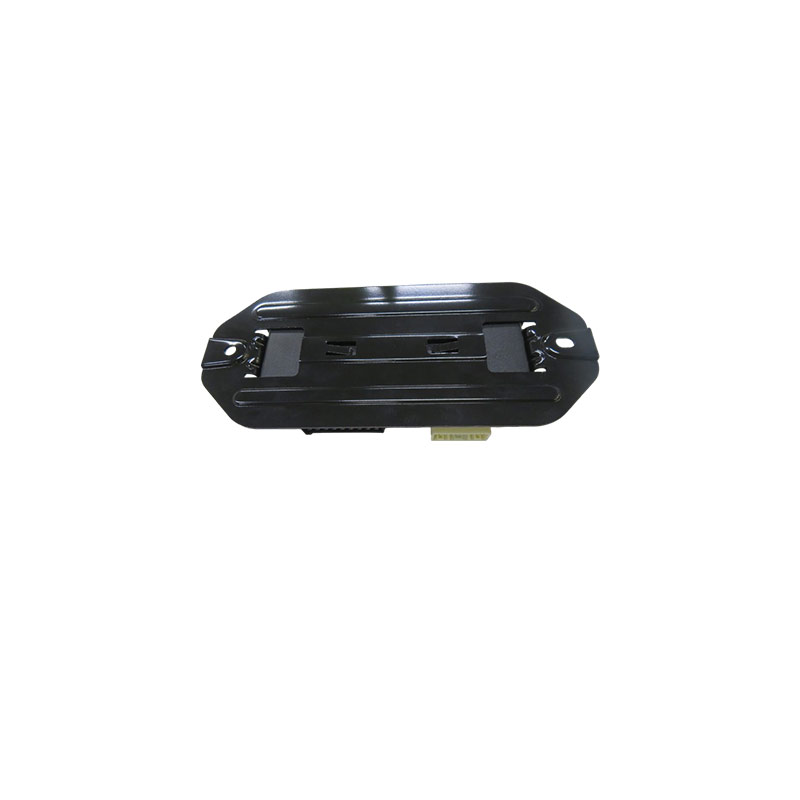

Automobile passenger seat - Function of the electronic control unit
The electronic control unit (ECU) of the car passenger seat is the "brain" of the intelligent seat functions, responsible for receiving operation instructions, processing sensor signals, and driving motors to perform position/pose adjustment and comfort configurations (such as heating, ventilation, memory).
Instruction processing and coordination: Receives signals from door panel buttons, rear control screens or voice/APP, parses them and outputs PWM or digital signals to control multiple motors (front and rear sliding, lifting, backrest inclination, leg rest, etc.).
Sensor feedback loop: Reads real-time position data from Hall/position sensor to achieve precise positioning, anti-collision protection and memory functions (storing 2–4 sets of seating positions).
Integrated comfort control: Collaboratively manages seat heating, ventilation, massage (if any) functions, and adjusts power output according to temperature or mode requirements.
Vehicle communication hub: Interacts with the body domain controller and gateway through CAN/LIN bus, supporting greeting mode, key linkage, occupancy detection (for airbag control), etc.
Self-diagnosis and safety: Monitors overcurrent, stall, communication faults, triggers protection shutdown and stores fault codes, and some models also link seat belt reminder or child seat detection.
This ECU is usually a "small domain controller" and is integrated into the seat side or bottom, different from the main vehicle ECU (such as engine ECU), focusing on local, low-latency seat execution control. Mid-to-high-end models may support multi-seat coordination (such as the driver's seat and rear seat coordinated adjustment).
Car passenger seat electronic control unit (ECU) failures usually manifest as no response to seat adjustment, partial or total failure of functions (such as front and rear, lifting, heating, memory, etc.), and need to be confirmed by reading fault codes using a diagnostic tool. Common causes include module damage, power supply/faulty grounding, loose or damp wiring harness plugs, or communication interruption with the body control unit.
First, check the fuses and power supply: Confirm whether the fuse for the passenger seat (usually in the vehicle or engine compartment fuse box) has blown, and whether the plug is secure and free from corrosion.
Try power-off reset: Disconnect the negative battery terminal for 5–10 minutes and reset the comfort system module of the entire vehicle (some temporary software disorders can be restored temporarily).
Use a diagnostic tool to read fault codes: Use VCDS, iCarSoft or 4S store-specific equipment to read whether the "seat control unit" (such as J521) reports specific codes like "U0423 invalid data" or "B1023 motor circuit open" (avoid blindly replacing).
If no code but all functions are lost: Focus on checking the power supply (12V) and grounding points (usually located at the seat bracket) for normal operation, or damage to the module's internal hardware/firmware.
Partial function failure (such as only heating or only memory): This is not necessarily a fault of the main ECU, but may be a sub-circuit (such as heating sensor, position encoder) or switch problem, and needs to be differentiated based on the symptoms.
Do not disassemble the ECU yourself: Most seat control units are non-repairable modules, and after confirming the fault, they need to be replaced and matched (some models require programming or learning the position).
