What are the components of the automotive electric steering column and the universal connector?

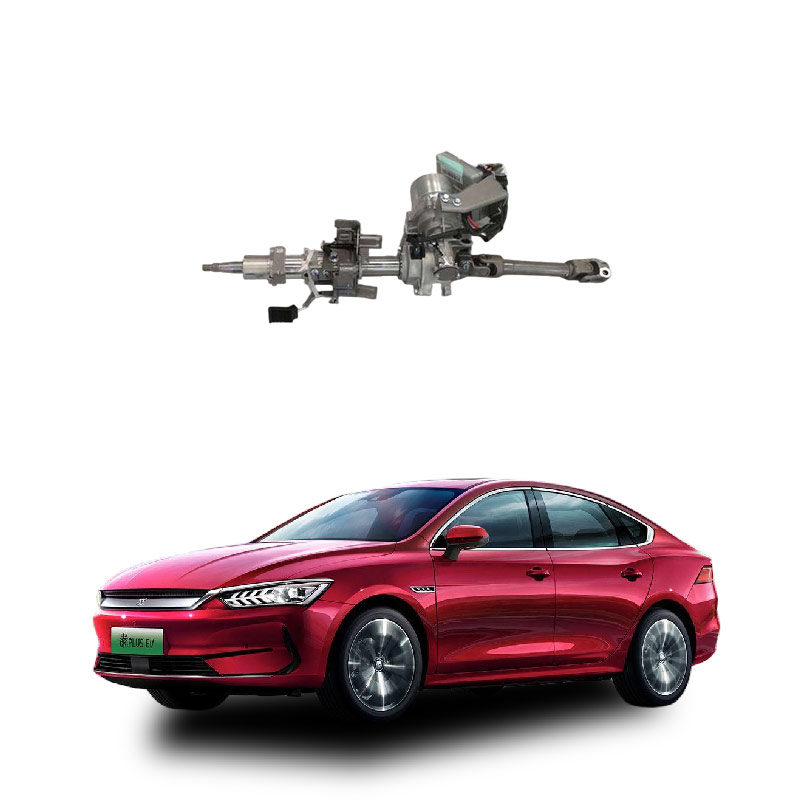

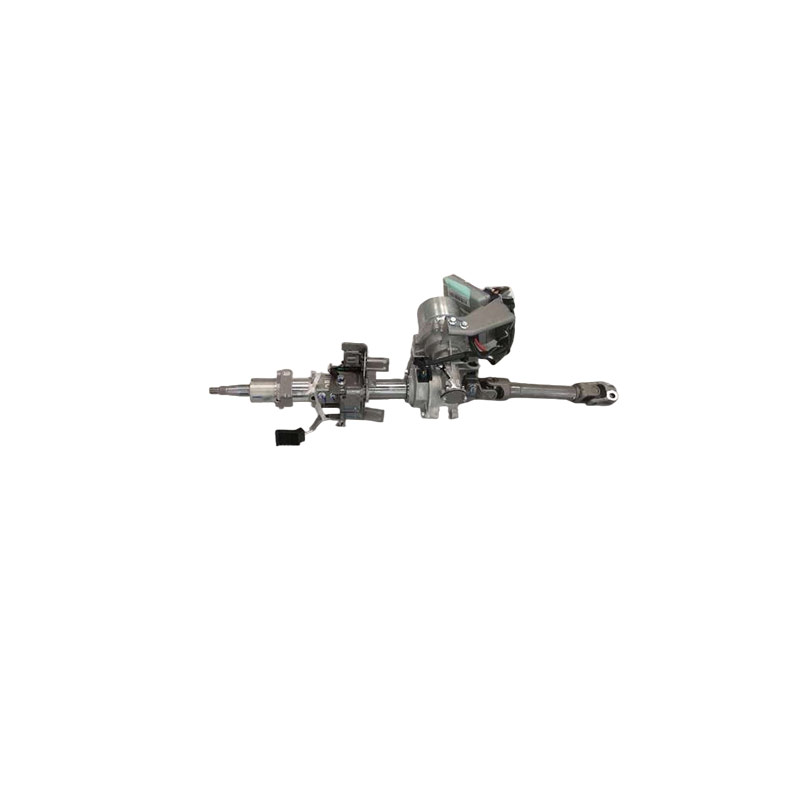

The "electric power steering column" typically refers to the steering column assembly in the electric power steering (EPS) system, consisting of the steering column body, torque sensor, assist motor, electronic control unit (ECU), and upper and lower universal joints/generic connectors; the generic connectors often refer to the cross shaft, spline or sliding universal joint used to connect the steering shaft.
The steering column body: includes the upper/lower columns, crush energy absorption structure, tilt/extension adjustment mechanism (mechanical or electric), and integrated anti-theft locking module.
The torque sensor: is installed on the steering input shaft, detecting the driver's steering intention (torque and direction), and is a key input for EPS control.
The assist motor and reduction mechanism: provides steering assistance, usually coupled to the steering column or steering gear through belts, gears or clutches.
The universal joint assembly: includes the upper universal joint (connecting the steering shaft on the steering wheel side), the lower universal joint/intermediate transmission joint (connecting the steering column to the steering gear), and common types include cross shaft type (U-shaped joint), spline sliding joint (compensating for axial displacement), or constant velocity joint (CV Joint) (used in some higher-end or electric vehicles).
The wiring harness and sensor interface: includes steering angle sensor, motor position feedback, ECU communication cables (specific to EPS).
It should be noted: "Electric power steering column" is not an independent component, but an EPS integrated assembly of the steering column; the universal joint assembly does not have an absolute "universal" standard part; the model is customized according to the diameter of the steering shaft, the number of splines, installation angle and space layout (such as Toyota 45260-28120, Nissan 48070-AG00A are all dedicated parts). If referring to replacement parts, it should be matched with the vehicle VIN or original factory part number, rather than being generally referred to as "universal".
The electric power steering column (typically the electric power steering column) plays a core role in transmitting the torque of the steering wheel and providing electric assistance, enhancing steering lightness and controllability; the universal joint assembly is used to reliably connect the steering column and the steering gear, compensating for installation errors and transmitting motion.
Electric power steering column (electric power steering column, EPS Column): on the basis of the traditional steering column, integrates an electric assist motor and electronic control unit, adjusting the assist size in real time according to vehicle speed, steering force, etc., reducing driving burden, improving steering accuracy and comfort, and supporting steering height/angle adjustment, memory function, and absorbing energy through crush design in case of collision to ensure safety.
Universal joint assembly (such as universal joints, spline joints or couplings): connects the output end of the steering column with the input end of the steering gear (such as rack type or ball screw type), compensating for axis offset and vibration displacement, ensuring smooth torque transmission, avoiding jamming or wear, and is a key flexible transmission component for realizing the "steering wheel → steering gear → wheels" steering linkage chain.
It should be noted: "Electric power steering column" is not an independent power steering drive, but an "electric assist" added to the mechanical transmission path; the universal joint assembly does not provide assistance, only ensuring the reliability and durability of the mechanical connection. Together, they achieve "safe, precise, and comfortable steering control", which is the basic composition of modern electronic control steering systems (such as EPS).
