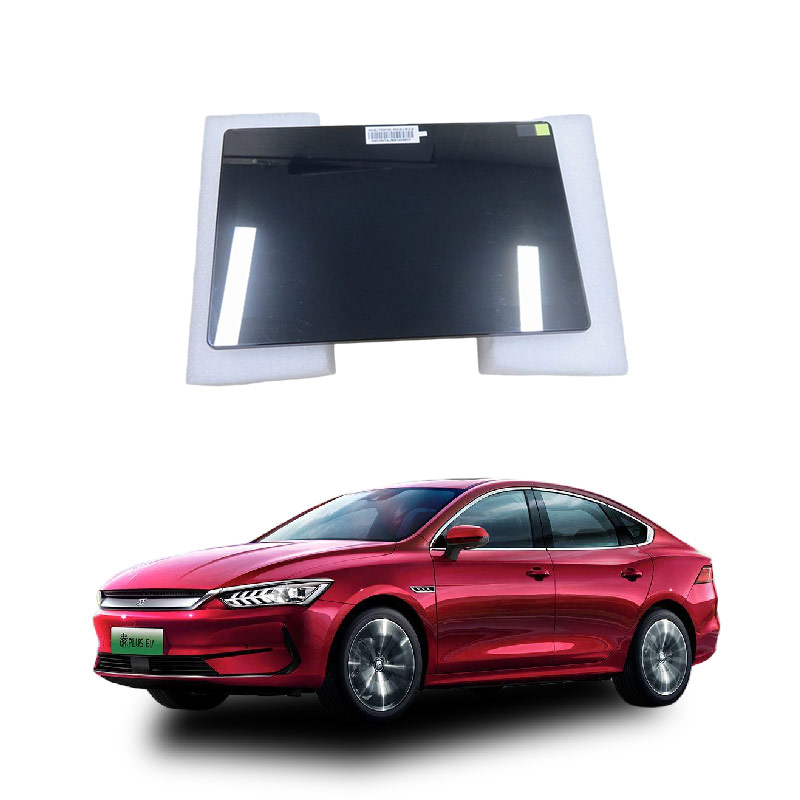

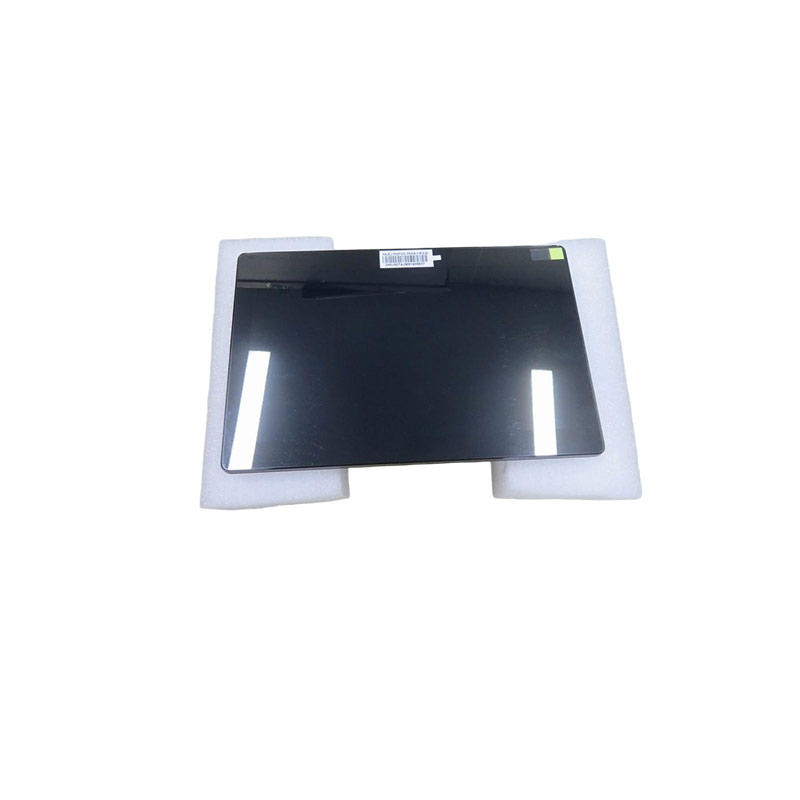

The function of the automotive display assembly component
The assembly components of the car display are the core components of the intelligent cockpit. Their functions have expanded from simple information display to a multifunctional component integrating human-computer interaction, safety assistance, entertainment integration, and system control. According to the latest publicly available information, their main functions can be summarized as follows:
Core Functionality
Vehicle Status Information Display
Real-time display of key operating parameters such as speed, engine speed, water temperature, fuel quantity, gear position, and mileage. Some models also integrate tire pressure monitoring, ADAS (Advanced Driver Assistance System) status, and range estimation information.
Navigation and Reverse Assistance
Support GPS navigation path guidance and automatically switch to reverse image display when reversing, enhancing parking safety and convenience.
Multimedia Entertainment Function
Play audio and video, support Bluetooth connection, mobile screen projection, Wi-Fi online updates, etc., enriching the driving experience.
整车控制中枢
Integrate control interfaces for central control door locks， window raising/lowering， air conditioning adjustment， lighting control， and driving mode switching， achieving "one screen controls the entire vehicle configuration".
Human-Computer Interaction Upgrade
In autonomous driving vehicles， the display can intelligently switch between driving/entertainment modes (such as full-screen viewing in L3+ level autonomous driving)， and combine with eye-tracking， voice assistants， etc. to achieve personalized， seamless interaction.
Structural and Design Features
Modular Integration
Usually composed of display modules， T-CON driver boards， logic control boards， backlight modules (including light guide plates， reflective films， and enhancing films)， and shells (such as magnesium-aluminum alloy rear shells)， fixed by adhesive or snap fastening， reducing the use of screws to improve assembly efficiency.
Optical Optimization Design
To improve visibility， adopt V-CUT light guide plates， dot structures， anti-reflective coatings， etc.， ensuring clear readability in strong light， backlighting， and backlighting in reverse light and other complex environments.
Safety and Reliability Considerations
Original factory assembly components must pass CAN bus communication verification， backlight synchronization， UI response tests， etc.， to ensure seamless coordination with the vehicle ECU； non-original factory installation may have wiring hazards or mismatch risks. In conclusion, the automotive display assembly components not only serve as information output terminals, but also are the core carriers of safety, experience and interaction in the era of intelligent vehicles.
The assembly faults of car display screens usually involve problems at multiple levels such as hardware, software, or connections. According to the latest and authoritative public information as of May 2026, the following are systematic troubleshooting and handling suggestions:
Common Fault Causes Classification
Power Issues: Fuse blowout, insufficient battery voltage (<12.8V), loose or oxidized power lines.
Connection Issues: Loose connector plugs, poor contact, or oxidized pins.
Software Issues: System freeze, program conflicts, update failure, or virus infection.
Hardware Damage: Screen backlight failure, motherboard damage, internal circuit short circuit, or physical damage to the display.
Environmental Factors: High temperature (>45℃), high humidity, or strong vibration causing temporary or permanent faults.
Recommended Troubleshooting Steps (from simple to complex)
Force system restart
Press and hold the power button on the central control panel for 10 seconds or use a toothpick to gently touch the reset hole for 5 seconds.
If ineffective, turn off the ignition switch and remove the key, lock the car and leave it to rest for 10 minutes to enter deep sleep mode and reset the power management module.
Check the power supply and fuses
After starting the engine, use a multimeter to measure the battery voltage. It should be between 13.5–14.5V.
Check if the 10A–15A fuses labeled as "RADIO", "NAVI", or "DISPLAY" are blown.
Troubleshoot software issues
Try to enter the "Recovery mode" (while the vehicle is off, press and hold the volume down key + power button simultaneously), select "Wipe Data/Factory Reset" (note: it will erase all data. It is recommended to back up important information such as navigation in advance).
Obtain the latest firmware from the vehicle's official website or 4S store and perform offline system upgrade using a USB drive.
Check hardware connections and status
After power off, reconnect the wiring harness plug at the back of the screen and clean the oxidized pins.
Use a flashlight to shine at the screen at an angle. If you can see a blurry image, it indicates a backlight failure. Replace the backlight component.
If you suspect damage to the motherboard or integrated module, use a professional diagnostic instrument to read the error code.
Evaluate whether professional repair is needed
If the above operations are ineffective, or if you encounter phenomena such as "screen flickering, black screen, or no response", it is recommended to contact 4S store or professional repair institution to avoid secondary damage caused by self-disassembly.
If the vehicle is still within the warranty period, free repair is available; otherwise, it is recommended to choose a third-party store with qualifications in vehicle electronic repair.
Preventive Suggestions
Avoid using the screen for a long time in the "engine off" state.
Regularly clear system cache and do not install unauthenticated third-party applications.
When parking, choose a shady and dry environment to reduce the impact of high temperature and high humidity on electronic components.
