The function of the protective cover assembly on the car combination switch

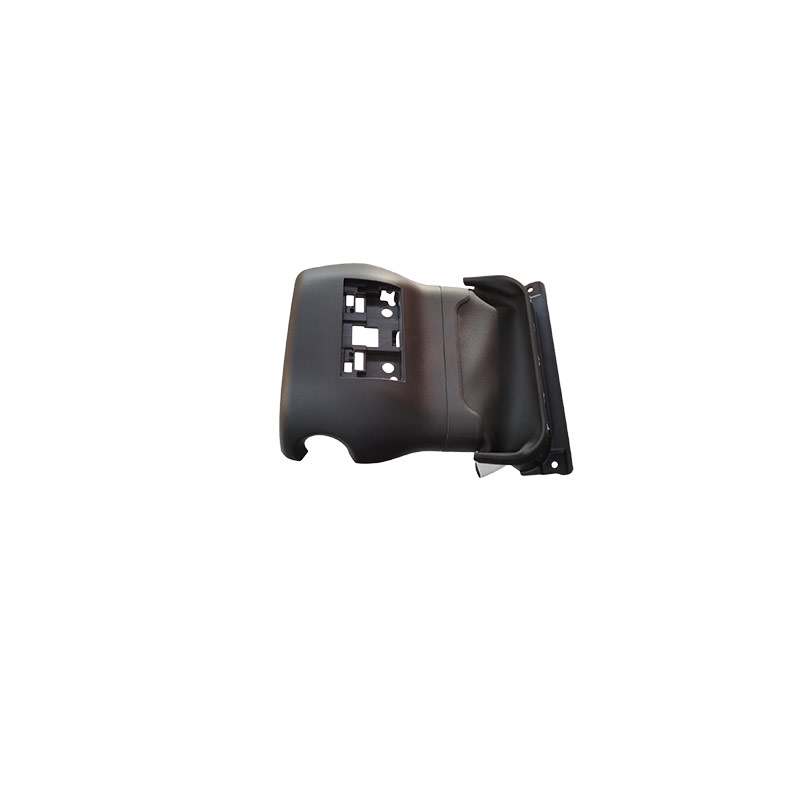

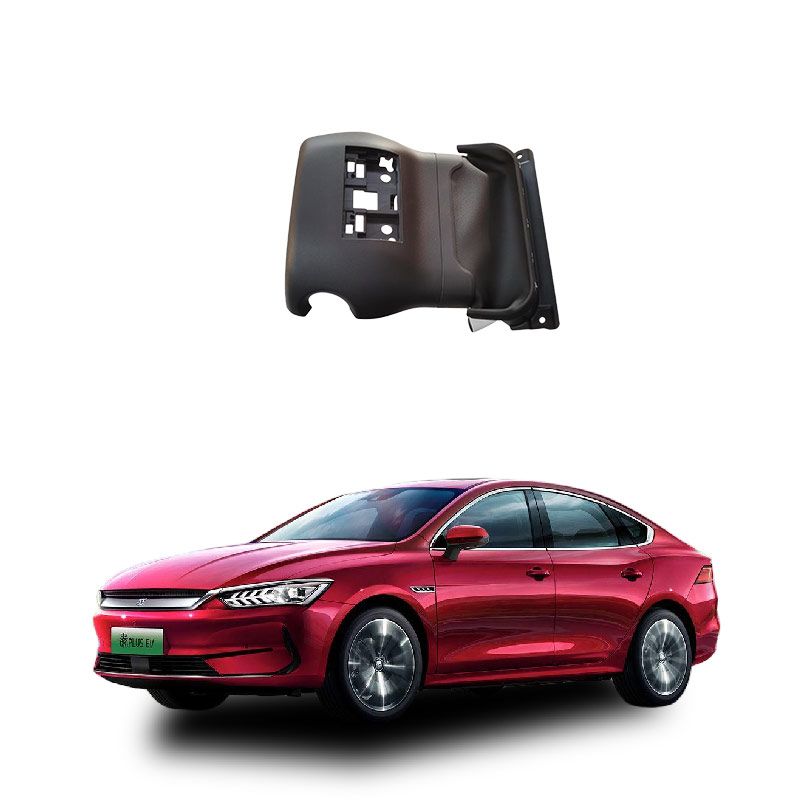

The protective cover assembly for the car combination switch (also commonly referred to as the combination switch shield or the lower guard of the steering wheel) is a plastic structural component installed on the steering column and covering the combination switch. Its primary function is not to participate in circuit control, but to undertake multiple physical protection and human-machine interaction optimization functions.
The main functions are as follows:
Dust and dirt prevention: Preventing dust and foreign objects from entering the combination switch and avoiding poor contact or short circuits.
Protection against accidental touch: Through precise openings and structural shielding, preventing the driver from mistakenly operating the switches such as the lights and windshield wipers.
Enhancement of operation feel: Ensuring smooth travel of the switches, clear rebound, no looseness or abnormal sounds, and enhancing driving safety and experience.
Buffering and positioning: Providing mechanical support for the switches, stabilizing the installation position, and reducing the impact of vibrations.
Aesthetics and integration: Coordinating with the interior style, enhancing the overall quality of the cockpit, and some designs also have shading and heat insulation functions. Additional Explanation
This component is usually made of high-toughness materials (such as ABS + PC alloy) and needs to undergo rigorous cold and hot cycles as well as durability tests to adapt to extreme environments ranging from -30°C to 80°C. If non-original or inferior covers are used, problems such as gaps allowing dust and debris to enter, snap switches breaking, and toggle levers becoming skewed may occur, and even affect key functions like the automatic return of the turn signal.
The cover component of the automotive combination switch itself usually does not directly participate in electrical control, but its main function is to protect the combination switch from dust and moisture intrusion and provide structural support. When the cover component fails (such as loosening, cracking, detachment, or deformation), it may indirectly cause abnormal functions of the combination switch.
Common manifestations and impacts of cover component failures
Sealing failure: The cover cracking or improper installation may allow dust and moisture to enter the combination switch, causing poor contact, short circuits, or corrosion.
Mechanical interference: The deformation of the cover may press on the toggle lever or knob of the combination switch, causing operational jamming or functional failure.
Risk of wire harness damage: In some models (such as BYD Speedster), the combination switch is fixed with CAN communication wire harness inside the cover. If the cover is damaged or installed improperly, the wire harness may be worn by the sharp edges of the steering wheel during rotation, resulting in communication interruption or signal abnormalities.
Common troubleshooting steps (combined with cover-related issues)
Visual inspection of the cover condition
Are there cracks, deformation, broken fixing clips, or loosening?
Are there water stains, mold spots, or corrosion marks (indicating sealing failure)?
Function testing
Test whether the functions controlled by the combination switch, such as turn signal, high and low beam lights, wipers, and horn, are normal.
If some functions intermittently fail, especially when the steering wheel is turned, it may be related to the wear of the wire harness inside the cover.
Check the wire harness (for specific models)
After removing the cover, check if the CAN-H/CAN-L wire harness on the side of the combination switch has wear, short circuits, or broken wires at the edge of the steering column.
Use a multimeter to measure the continuity and ground insulation of the wire harness.
Diagnostic code reading (if supported)
Use diagnostic tools such as VDS1000 to read BCM (Body Control Module) or comfort net fault codes, such as B12FE (Comfort Net 2 Communication Failure), which may indicate abnormal communication of the combination switch.
Maintenance suggestions
Minor damage: If only the cover cracks but does not affect the internal structure, the cover can be replaced (prices are usually lower, available on platforms like Taobao).
Wire harness wear: Re-wrap the wire harness and fix it according to the original vehicle direction to avoid further friction.
Continuous functional abnormalities: Even if the cover is replaced, if the combination switch functions remain abnormal, it may indicate that the internal contacts have been damaged, and a replacement of the entire combination switch assembly is required.
Safety reminder: Before removing the combination switch, make sure to disconnect the negative battery terminal and wait for at least 10 minutes to prevent the safety airbag from triggering.
