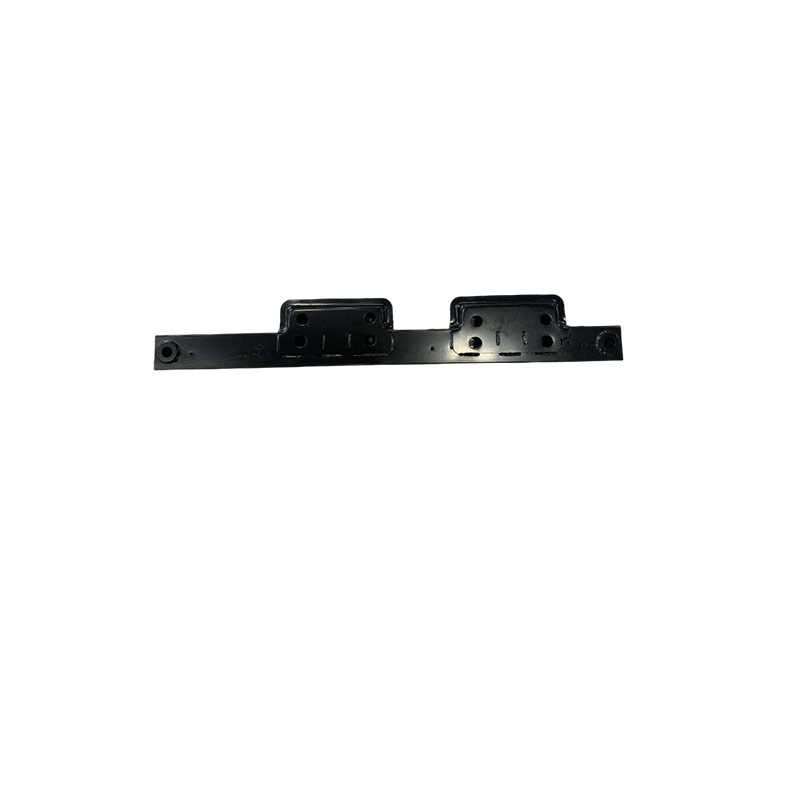

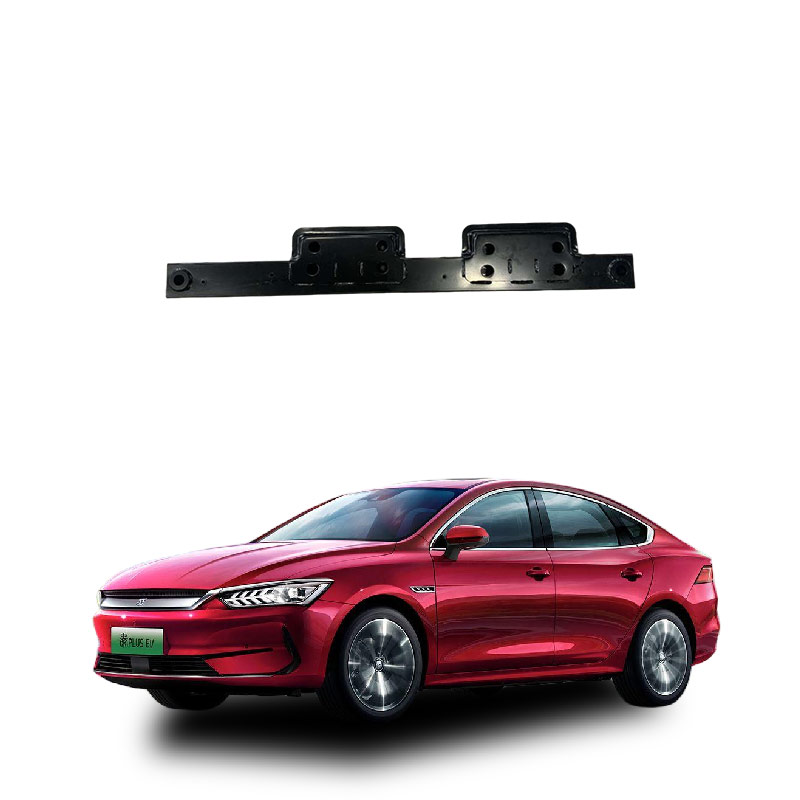

What is the front compartment lower crossbeam assembly of BYD vehicles?
The front crossbeam assembly of BYD vehicles is a key component in the vehicle's front body structure, primarily responsible for functions such as support, energy absorption, and force transmission for safety.
According to public information, its core definition and functions are as follows:
Structural Position: Located at the bottom of the front compartment, connecting the left and right front longitudinal beams or the sub-frame area, usually behind the impact bar and below the engine compartment.
Materials and Processes: Mostly made of high-strength steel (with a strength of over 600 MPa) or aluminum alloy. Some new designs use hollow tubular sections to optimize the stiffness-to-weight ratio.
Main Functions:
Enhance frame torsional stiffness: Together with the longitudinal beams, they form a rigid frame, enhancing the structural stability of the entire vehicle.
Collision energy absorption: In frontal or oblique collisions, it absorbs approximately 60% of the impact energy through controlled collapse, and in combination with the energy absorption box, forms a secondary protection barrier.
Support key components: Providing installation bases for the engine, radiator, front bumper frame, etc.
Design Features: Some BYD models (such as Han DM-i) have an inclined strengthening crossbeam inside the front crossbeam, which more efficiently disperses impact forces; the latest patent shows that it adopts a double-ring structure (front fender crossbeam + A-pillar linkage), significantly enhancing the front collision and roof pressure-bearing capacity.
Note: "Front crossbeam assembly" is also referred to as "front sub-frame crossbeam assembly" or "front crossbeam sub-assembly" in some contexts, with slight variations in specific names depending on the vehicle platform, but the core function remains the same.
The front crossbeam assembly of BYD vehicles is a key load-bearing and safety component in the vehicle's front body structure. Its functions can be summarized as follows:
Core Functions
Mechanical Support and Structural Reinforcement
The front crossbeam connects the left and right front longitudinal beams, forming a stable frame structure, significantly enhancing the torsional stiffness of the frame (up to 80% or more), and bearing the load of the front components such as the engine, radiator, and front suspension.
Collision Energy Absorption and Safety Protection
Made of high-strength steel (yield strength typically ≥ 600 MPa) or aluminum alloy, it absorbs approximately 60% of the impact energy through controlled collapse design and in combination with the energy absorption box forms a secondary protection barrier, effectively reducing the impact force on the passenger compartment.
Dynamic Performance Adaptability
Its cavity structure has been optimized (such as the patent slot design), which can disperse road bumpy loads and even withstand 90 cm of snow pressure without deformation, ensuring the structural integrity in complex road conditions.
Installation Reference Points for Components
It provides rigid installation points for the front bumper, impact bar, cooling system, etc., ensuring that all components remain relatively stable during driving.
Technical Characteristics of BYD Related to the Assembly
According to the patent "Vehicle Front Compartment Assembly and Vehicle" (public number CN119749712A) filed by BYD in March 2024, the front upper crossbeam of the vehicle adopts a hollow tubular closed-section structure, closely connected to the A-pillar, forming a complete Y-direction force transmission path, further enhancing the stability and safety of the front fender and the entire vehicle body.
Although this patent focuses on the front upper crossbeam, it reflects BYD's technical emphasis on the lightweight, high-strength, and force transmission efficiency of the front compartment crossbeam structure.
Recommendations: In the event of a front collision of the vehicle, it is necessary to carefully check whether the front crossbeam assembly has deformed or cracked, as its structural integrity directly affects the subsequent driving safety.
Faults in the front crossbeam assembly of BYD vehicles usually involve structural damage or rust problems, and corresponding measures should be taken based on the specific manifestations and damage levels. The following are key information based on public data:
Common Fault Causes
Impact or Scratching: The crossbeam is deformed, dented, or even broken due to the impact of an accident. Rust and aging: Long-term use or improper rust prevention leads to the penetration of rust and a decrease in strength of the metal.
Overloading or prolonged stress: Improper use increases the burden on the crossbeam, causing deformation.
Methods for determining damage:
Appearance inspection: Observe for deformation, wrinkles, cracks, welding marks, or abnormal paint surfaces.
Connection part inspection: Check if the bolts and rivets connecting to the frame, suspension, etc. are loose or misaligned.
Driving performance: If the vehicle veers or shakes, it may indicate deformation of the beam.
Professional inspection: Use a flaw detector or tap to listen for sounds to determine the internal condition.
Maintenance suggestions:
Minor deformation: Try repair and use a beam correction instrument for stretching correction.
Severe deformation or fracture： Cut and replace the original part and install it by a professional technician according to the original factory standards.
Rust treatment： Early cleaning of rust， application of rust inhibitor， and repainting can be done； if it has penetrated， replacement is recommended.
Material differences：
Plastic beam： Try hot water + suction cup repair (without damage).
Metal beam： Requires professional repair or welding.
Aluminum alloy beam： The repair is difficult， and it is usually recommended to replace.
Notes：
Safety first： The front cabin lower beam is a structural part of the vehicle body， and its integrity directly affects the safety in a collision.
Choose a regular institution： Be sure to handle it at a 4S store or a professional repair shop with beam correction equipment.
Handle promptly： Small problems should be repaired early to avoid expanding the damage and ensuring driving safety. If you need a further diagnosis, it is recommended that you bring your vehicle to a BYD authorized service center or a qualified third-party repair facility for a professional assessment.
