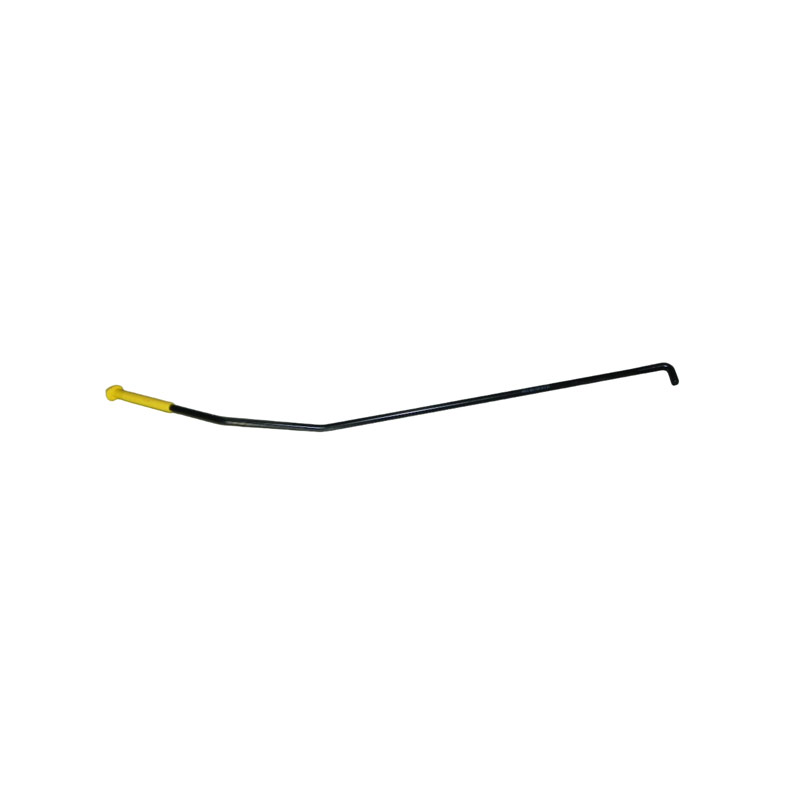

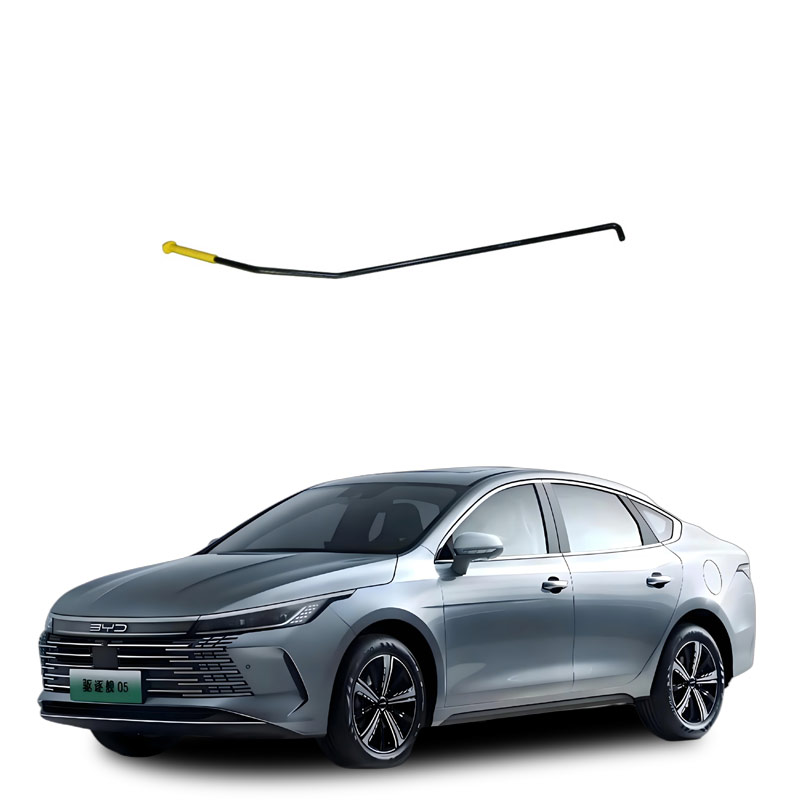

What is the front edge frame support rod assembly of the car?
The term "car front edge frame support rod assembly" does not have a standard term in public materials. However, considering the context and common car structures, it is likely referring to "engine compartment cover support rod" (also known as hood support rod or engine hood support bar), which is a component used to support the engine compartment cover (front hood) and keep it in the open position.
Core Definition and Function
Official Name: Usually referred to as "engine compartment cover support rod" or "engine hood support rod".
Function:
After opening the engine compartment cover, it provides stable support to keep it in the open position, preventing the cover from suddenly dropping due to gravity and ensuring operational safety.
Supports one-handed operation, enhancing usability.
Type and Working Principle
Main Types:
Pneumatic Support Rod: Internally filled with high-pressure nitrogen, using gas expansion to push the piston to generate support force. It is cost-effective and commonly used in economy models.
Hydraulic Support Rod: Utilizes hydraulic oil to transfer pressure, providing more stable support. Commonly found in mid-to-high-end models.
Core Structure (taking the gas support rod as an example):
Gas spring (inflatable pressure cylinder)
Piston and sealing ring
Ball hinge connection end
Shell (high-strength alloy)
Installation location (varies by vehicle model)
Common locations:
Front bottom of the engine compartment cover (visible when lowering the head).
Black plastic trim plate on the left front of the engine compartment (parallel to the grille).
Under the front bumper (such as in some models like Haval H6).
Before operating, it is recommended to consult the vehicle manual or seek professional advice to avoid incorrect operation.
Fault Manifestations and Maintenance Suggestions
Common Problems:
Reduced support force: The hood is difficult to remain open, especially more noticeable in winter.
Oil leakage/air leakage: Oil stains on the surface indicate aging of the oil seal.
Strange noises or shaking: Loose or worn fixing seat.
Maintenance Suggestions:
Regularly check for oil stains on the surface.
Avoid direct high-pressure water jets on the support rods.
Appropriate lubrication can be applied to the moving parts.
It is recommended to replace with original or high-quality aftermarket products (such as Stebilus, etc.).
"Car front edge frame support rod assembly" in public materials does not have a standard term. However, considering the context and common car structures, it may refer to the hydraulic or pneumatic support rods (commonly known as hood support rod or engine hood support bar) installed on the engine compartment (front compartment) cover. The main functions of this component are as follows:
Core Function
Support engine compartment cover: After opening the engine compartment cover, it provides stable support to keep it in the open position, preventing the cover from automatically dropping due to gravity and causing damage or safety hazards.
Enhance usability: No need for manual support, facilitating daily maintenance such as oil checks and antifreeze additions.
Enhance safety: Prevents the engine compartment cover from accidentally closing, protecting hands and internal components of the engine compartment.
Key Characteristics
High-pressure gas drive: Usually filled with nitrogen, using the piston-cylinder structure to achieve stable support.
Strict installation requirements:
The piston rod must be installed downward to ensure damping effect and buffering performance.
During operation, avoid lateral force or inclined force.
When recovering, it must cross the center line of the structure; otherwise, it may automatically spring open.
Usage Environment Restrictions: Generally applicable temperature range is -35℃ to +70℃. Do not use for heating, impact, or as a handrail.
Common Problems and Maintenance
Failure Manifestations: Weak support, slow rebound, inability to stabilize the hood.
Replacement Suggestions:
Replace in pairs (different pressures of new and old rods may cause uneven force distribution).
Self-replacement is possible, common interfaces are bolted or screw-fixed.
It is recommended to use compatible original model products or high-quality substitutes (such as Stebilus, etc.). Note: If "front fender support strut" actually refers to the front stabilizer bar (anti-roll bar) or the roof support (tower top balancing bar), its function mainly focuses on enhancing the vehicle's rigidity and handling stability. However, based on the context of the question and the use of the word "strut", it is more likely to refer to the engine hood support device.
If you need further clarification on the specific component, it is recommended to refer to the vehicle maintenance manual or check the physical location (usually inside the engine hood and between the engine hood and the body).
