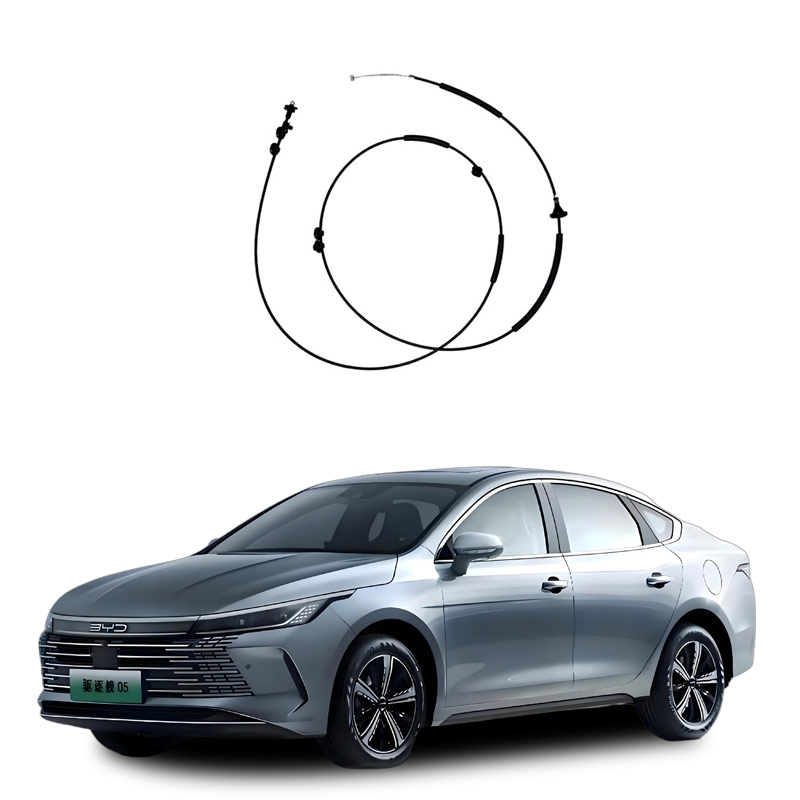

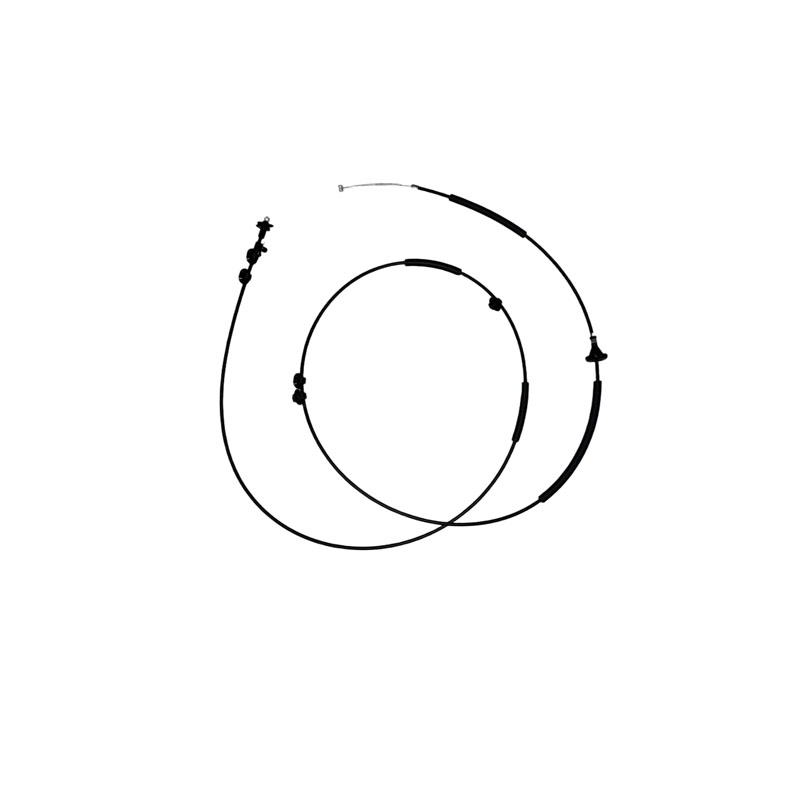

Front windshield opening cable assembly: The core link of the vehicle's vision system
The front windshield opening cable assembly is the key transmission system that connects the driver's operation with the glass lifting and lowering mechanism. It is mainly composed of control cables, pulley groups, and fixed clamps. Its function spans multiple dimensions of driving safety and comfort experience.
Precise transmission, ensuring vision adjustment
The core function of this assembly is to convert the driver's command through the lifting switch into mechanical power for the glass lifting and lowering. The control cables are made of high-tensile nylon wrapped around steel wires, which can precisely transfer tension in the complex space inside the door, allowing the glass to smoothly rise and lower along the guide slot, with an error control within 0.5 millimeters. Whether quickly closing the glass to block noise during high-speed driving or lowering the glass to pay the toll when parking, the transmission efficiency of the cable assembly directly determines the response speed of the operation, ensuring that the driver can adjust the vision status at any time.
Overload protection, extending system lifespan
The high-quality cable assembly is equipped with a tension buffer device. When the glass lifting encounters foreign objects (such as fallen leaves or ice chips), the pulley group will automatically slip to avoid the motor from burning out due to overload. At the same time, the fixed clamps are made of elastic rubber material, which can absorb vibrations during vehicle driving and reduce friction loss between the cable and the car door's sheet metal, ensuring an average lifespan of 8-10 years, equivalent to over 70% of the vehicle's lifecycle.
Sealing collaboration, enhancing sound and water resistance
The cable assembly works in close coordination with the car door's sealing system. The part passing through the car door's sheet metal has double-layer rubber seals, which can prevent rain and dust from entering the car door and eroding the motor, and also block the transmission of external noise. Data shows that a normally functioning cable assembly can reduce interior noise by 3-5 decibels, especially noticeable during high-speed driving, creating a quiet interior environment for passengers.
Common fault types and diagnosis methods
Although the cable assembly structure is relatively simple, it still may encounter various faults due to long-term exposure to temperature and humidity changes. The main types of faults are as follows:
Cable breakage, causing the glass to "fail"
This is the most common fault type. It is often caused by frequent operations, low temperatures causing brittleness, or foreign object blockages. The fault is manifested as hearing the motor's operation sound after pressing the lifting switch, but the glass shows no response, or only a slight movement. During diagnosis, the car door interior panel can be removed to observe if there are any obvious broken traces on the cable. If the steel wire is exposed or the nylon sheath is cracked, the entire assembly needs to be replaced. For example, the Buick Envision model once had a case of concentrated cable breakage for about 3 years due to a cable material issue, and the problem was resolved by replacing with high-specification steel wire cables.
Slip of pulleys, causing abnormal noise and jamming
The pulley group undergoes repeated friction over time, resulting in bearing wear and deformation of the pulley groove, causing abnormal "clicking" sounds during glass lifting or jamming at a certain position. At this time, applying a specific lubricant to the pulley shaft can help eliminate the abnormal noise; if the jamming persists, check if there are any metal burrs on the pulley groove, and replace the pulley assembly if necessary. It is worth noting that if this fault is not promptly addressed, it will accelerate cable wear and lead to more serious breakage problems.
Loose clamps, causing glass shaking
If the fixed clamps age or detach due to vibration, the cable will shift inside the car door, causing the glass to shake left and right or have an offset in the lifting trajectory. In severe cases, it may collide with the car door sheet metal, producing a "tap-tap" sound. During diagnosis, gently pulling the cable can determine if the clamp has failed. Replace the elastic clamp and fix it at the original factory positioning point to ensure the cable is in a taut state.
Fault investigation and repair suggestions
When encountering a glass lifting failure, you can follow these steps for troubleshooting:
Initial judgment: Press the switch. If the motor does not respond, first check the fuse and switch circuit; if the motor operates but the glass does not move, it is likely a fault of the cable assembly.
Visual inspection: After removing the interior panel, check if the cables are broken, if the pulleys are worn, and if the clips are loose.
Function test: Manually pull the cables. If the glass can smoothly rise and descend, it indicates that the cable transmission is normal, and the fault may be in the motor or switch. If it is difficult to pull or there is a sticking phenomenon, then the cable component needs to be replaced.
During daily maintenance, it is recommended to lubricate and maintain the cable components once every two years. Use a special silicone-based lubricant to spray the contact areas of the pulleys and cables to avoid using greases that are prone to attracting dust. At the same time, avoid forcibly pressing during the glass lifting and lowering process to prevent cable overload. If the glass lifting speed slows down or there is abnormal noise, it is necessary to check it in time to avoid small faults causing major problems. Summary
Although the front windshield opening cable assembly may seem insignificant, it is a crucial part for ensuring driving safety. Its precise transmission, overload protection, and sealing work together to directly affect the convenience of adjusting the view and the comfort of the interior environment. By understanding the common fault types and troubleshooting methods, car owners can promptly identify problems, extend the service life of the assembly, and ensure smooth and reliable glass raising and lowering each time, thereby adding an extra layer of safety to driving.
