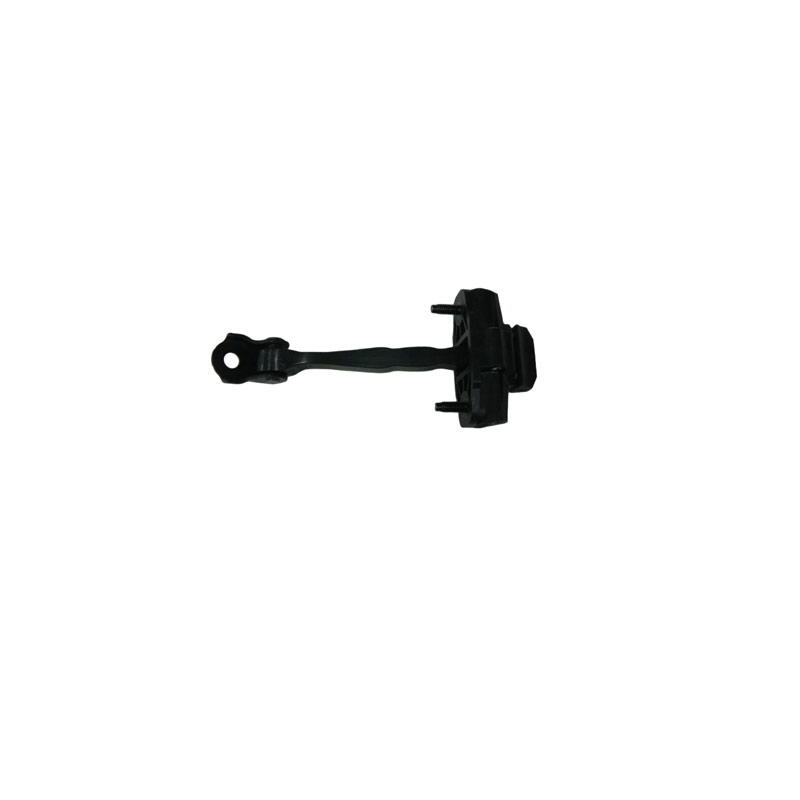

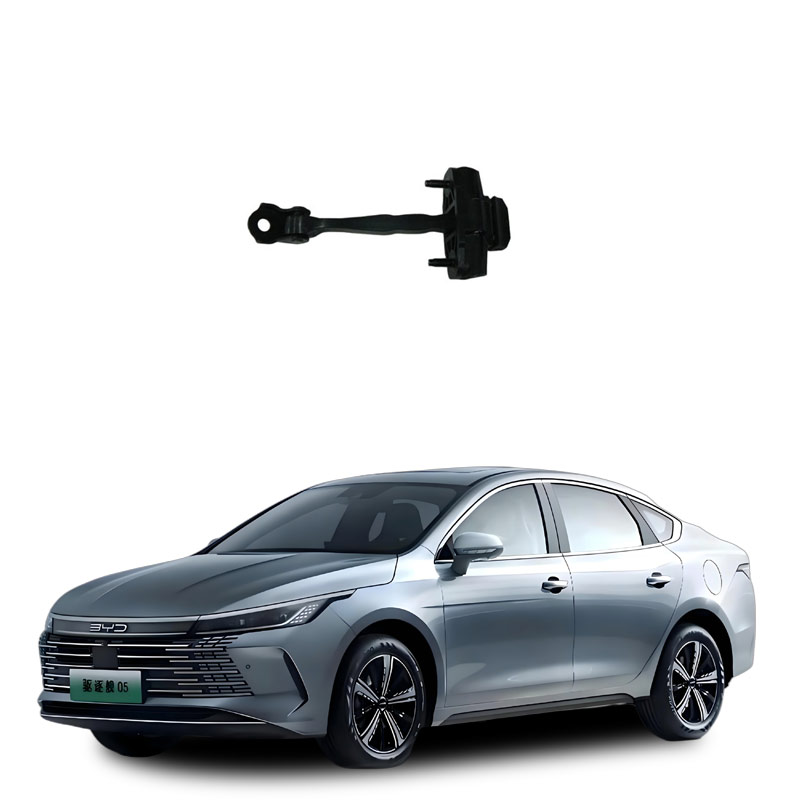

What are the components of the rear door limiter?
The rear door limiter is mainly composed of a limiter box, a limiter arm (rod), a bracket, an elastic element, and an internal limiting mechanism. These components work together to achieve precise control and stable retention of the door opening angle.
Detailed explanations of the core components:
Limiter Box
Installed on the inside of the door, it moves along with the door. Its interior contains transmission components such as needles, balls, or sliders, which cooperate with the limiter arm to achieve multiple limit positions. When the door is opened, the limiter box slides along the limiter arm and triggers different resistance points.
Limiter Arm/Gun
Fixed to the side panel of the vehicle (such as the B-pillar), it is the guiding and force-bearing component of the limiter. Its surface has uneven protrusions corresponding to different limit positions (usually 2-3 positions), providing phased resistance through interaction with the limiter box.
Bracket and Installation Bolts
Used to fix the limiter arm on the vehicle, ensuring a stable structure. The bracket design must ensure that the axis of the limiter arm is aligned with the axis of the door hinge to avoid movement interference.
Elastic Elements
Including rubber springs, metal springs, or torsion springs, they are the core for generating limiting force.
Rubber Spring Type: Utilizes the deformation of elastic rubber blocks to generate resistance, with a simple structure and low cost, commonly used in family cars.
Torsion Spring Type: Integrated into the lower hinge, providing a more stable torque through the deformation of the torsion rod, more common in European models, with a longer lifespan but a more complex structure.
Internal Limiting and Reset Mechanism
Contains friction components such as needles, balls, or sliders, determining the feel of the limiters and their smoothness. Some new designs also incorporate detachable dust shields to prevent dust from affecting the performance.
Daily Maintenance Suggestions: Regularly clean the rotating shaft area of the limiter and apply special lubricating grease to effectively reduce abnormal sounds and extend the service life. If you find that the door cannot be stably kept in the halfway open position or there is a stuck feeling when opening or closing, you should promptly check if the components are worn or loose.
Judging whether the rear door limiter is damaged: Mainly based on abnormal door opening and closing feel, abnormal sounds, or the inability of the door to remain open stably, which directly affect the normal use of the door and driving safety, and need to be paid attention to in time.
Abnormal Door Opening and Closing Feel
Opening too forcefully or too wide: The door that should automatically stop at a specific angle (such as 30°, 60°) now can be easily opened to the maximum angle and even collide with the vehicle, indicating that the limit position limiting function of the limiter has failed.
Closing with difficulty or obvious resistance: When closing, it feels there is additional resistance, unlike before, which may be due to the jam or deformation of the internal mechanism of the limiter.
The door automatically retracts or closes: On sloping parking or in windy conditions, the door cannot remain open and shakes slightly before closing automatically, indicating that the limiter has lost the "parking hold" ability.
Abnormal Door Opening and Closing Sounds
There are "crack" or "click" sounds of metal friction, especially concentrated at a certain angle during opening or closing, which is usually caused by lack of lubrication, internal wear, or damage to the balls/sliders of the limiter.
If left untreated for a long time, it will lead to metal fatigue, accelerate component wear, and even cause fractures.
Unstable or Shaking Door Opening
When the door is opened halfway (such as 45°), it cannot be fixed and has slight shaking or slow retraction. This is a typical signal of aging or failure of the elastic elements (such as rubber springs, torsion springs) of the limiter.
If accompanied by a "sagging" feeling of the door, it may also involve hinge loosening, but limiter damage will aggravate this phenomenon.
Visual Inspection Reveals Physical Damage
After removing the interior panel, the limiter body can be observed. If any of the following is found:
Metal connecting rods bent or broken
The limiter box shell damaged or loose
The outer layer plastic sheath severely cracked but the internal structure has been exposed
It is basically confirmed that replacement is needed. It is worth noting that if only the outer layer plastic is damaged and the metal structure is intact, it can be temporarily not replaced, but regular checks should be conducted. Practical advice: You can periodically manually gently push the car door when it is fully open to test its stability; at the same time, pay attention to listening to the changes in the sound each time the door is opened or closed, so as to detect problems early and carry out repairs promptly.
