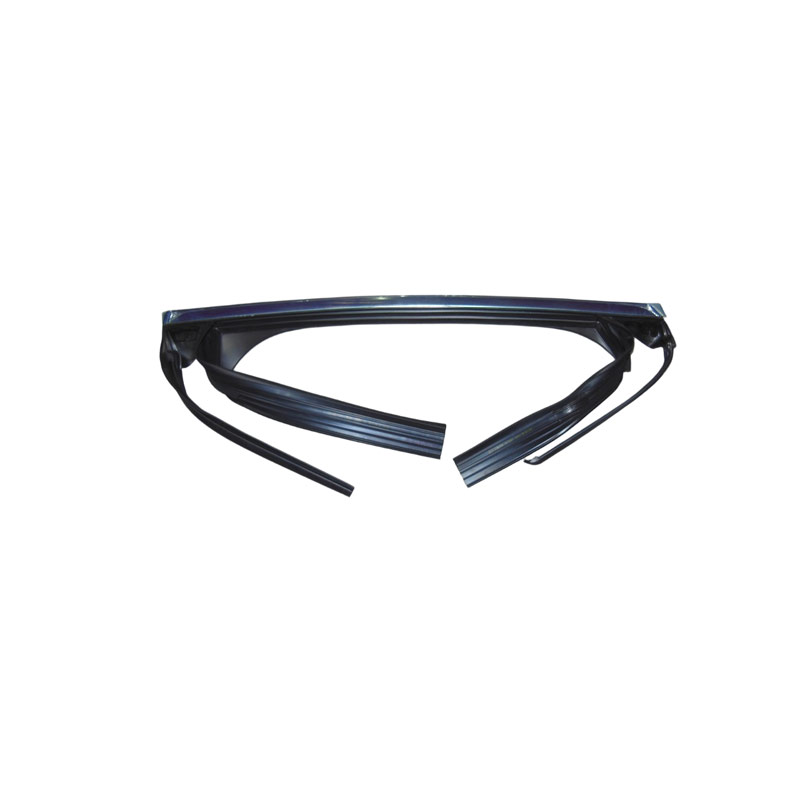

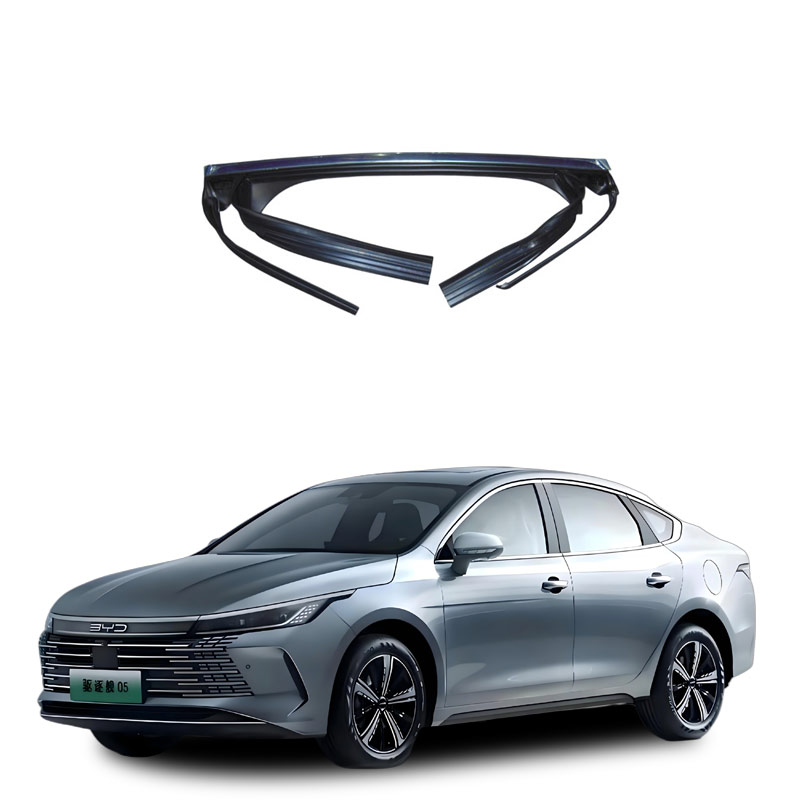

The function of the glass groove on the left rear door of the car
The left rear door glass channel (often referred to as the glass guide channel or glass seal channel) is a rubber or composite material structure located inside the door that closely adheres to the edge of the window glass. Its functions mainly include the following three aspects:
Guiding the smooth lifting and lowering of the glass: As the "track" for the up and down movement of the window glass, it ensures that the glass slides along a fixed path, preventing shaking, deviation, or jamming.
Sealing and preventing leakage: Effectively blocking rain, dust, gravel, etc. from entering the interior of the door, protecting the lifting motor, wiring harness, etc. from corrosion or damage.
Buffering and noise reduction: Reducing friction and vibration between the glass and the metal frame, lowering the noise during lifting, and enhancing the sealing and quietness when closing the door.
If this component becomes aged, cracked, or deformed, problems such as glass lifting obstruction, abnormal noise, air leakage, and water seepage may occur. It is recommended to conduct regular checks. For minor hardening, a silicone-based lubricant can be used for maintenance; if it has been significantly damaged, it is necessary to replace the original factory specification glass guide channel assembly to ensure performance.
Leaking of the rear door glass in a car is usually caused by aging, cracking, or improper fit of the sealing strip, guide rail, or lifting mechanism. It can be resolved by cleaning and lubricating, replacing the rubber strip, or professional maintenance.
Common Causes and Self-Check Solutions
Aging or loosening of the sealing strip: This is the most common cause. When the rubber strip hardens or shifts, it causes frictional noise.
Solution: Purchase a specific lubricant or vaseline, apply it evenly to the rubber strip and test the lifting of the glass repeatedly. If the rubber strip is severely aged and deformed, it is recommended to replace the new sealing strip directly.
There are foreign objects in the guide rail: The gap between the window groove and the B/C pillar is prone to accumulate dust and sand, causing vibration and noise during glass lifting.
Solution: Use tools to clean the debris and dust in the guide rail, keeping it clean and smooth.
Mechanical Faults and Professional Maintenance
Loose lifting mechanism or screws: Abnormal noise during driving may be caused by loose internal fasteners or lifting brackets.
Solution: Check the door screws and lifting brackets, and perform tightening treatment; if the lifting mechanism motor or parts are damaged, it is necessary to replace the lifting mechanism assembly.
Problems with glass installation or itself: Glass deformation, incorrect installation position, or insufficient tempering may also cause resonance.
Advice: If the self-check methods are ineffective, or if it involves glass replacement or motor repair, it is recommended to go to a professional car repair shop for inspection and adjustment.
Leaking of the left rear door glass usually relates to the aging, deformation, or improper fit of the window glass sealing strip (also known as the glass guide channel or sealing rubber strip). Based on the current time (April 2026) and authoritative public information, the main reasons and corresponding solutions are as follows:
Common Causes
Aging of the window glass sealing strip: The rubber material hardens and cracks over time, losing elasticity, and is unable to effectively seal the gap between the glass and the door, causing water to seep in.
There is a gap between the outer rain deflector and the sealing strip: Especially when the vehicle is traveling at high speed, water flows in the direction of the B/C pillar. If there is a gap at the connection point, water is likely to flow along this channel into the interior of the door.
Blockage of the door drainage hole: Even if a small amount of water enters the door cavity, if the lower drainage hole is blocked by leaves, sand, etc., the accumulated water cannot be drained and will seep out through the door gap or wet the interior trim.
Damage to the waterproof film: If the waterproof film on the inner side of the door is damaged due to aging or improper installation, water will directly flow to the threshold trim and then seep into the floor mat area.
Recommended Steps for Handling
Check and clean the door drainage holes
There are usually 1-2 drainage holes at the bottom of the door. A thin and flexible rod (such as a plastic clothes hanger) or a high-pressure air gun can be used to clear them. Do not use iron wire as it may damage the hose.
Check the condition of the glass sealing strip
Lower the window and observe if the sealing strip is cracked, detached, or deformed. If the damage is significant, it is recommended to replace it. Temporary emergency treatment (for minor leaks)
Wrap the edges with plastic tape and apply glass-ni sealant on the inner side of the slot (the exposed part should not exceed 5mm), or use special sealant/slime to repair small gaps.
Long-term solution
Replace the aged glass-ni slot or waterproof film. It is recommended to have it done at a professional repair shop or 4S store to ensure sealing performance and smooth operation of the glass lift.
If the self-treatment fails or you find that the foot pads are damp or there are water stains on the car door interior panel, you should repair it as soon as possible to prevent electronic components such as the window control module and door locks from being damaged due to water ingress.
