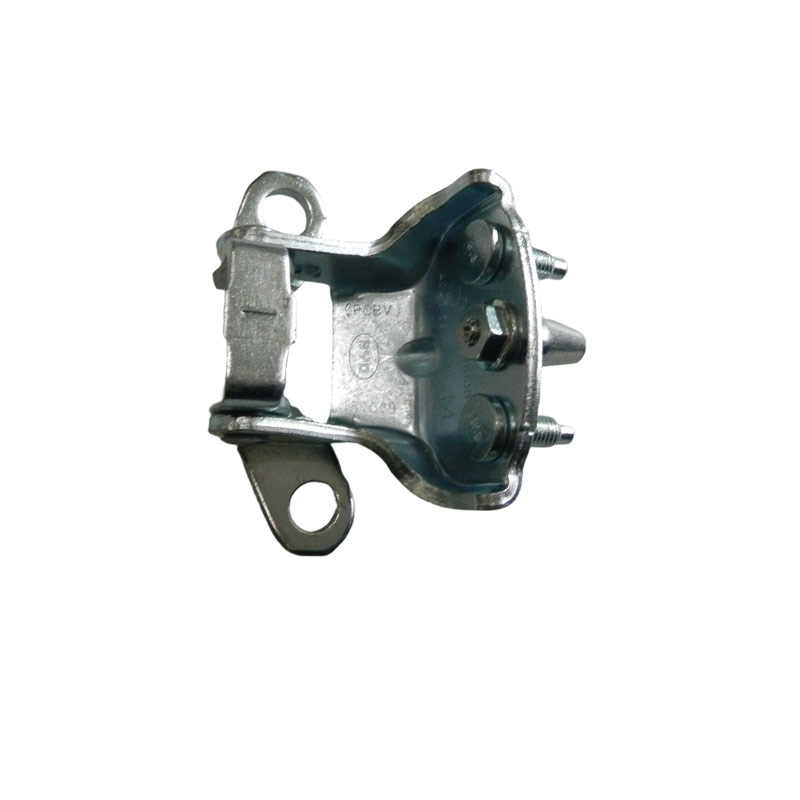

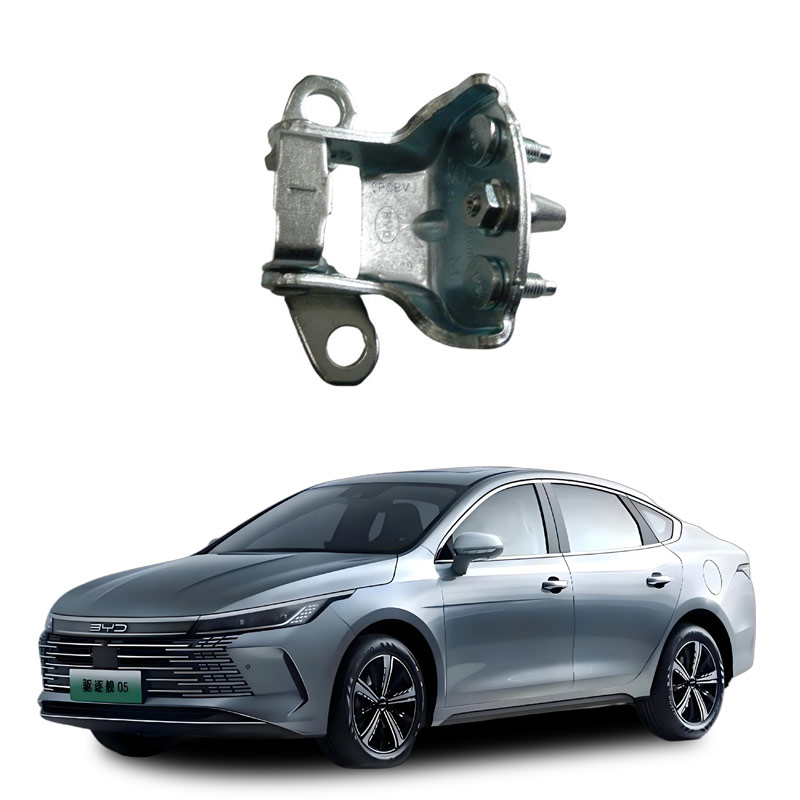

What is the upper hinge component of the car's rear door?
The upper hinge component of the car rear door, often referred to as the rear door hinge or rear panel hinge, is a crucial mechanical component that connects the car rear door (such as the tailgate of SUVs, MPVs or sedans) to the body of the vehicle. It is responsible for supporting the weight of the rear door and enabling its smooth opening and closing.
According to authoritative public information, its core definition and functions are as follows:
Basic Function: As a mechanical device connecting two solids (the rear door and the body), it allows the rear door to rotate around a certain axis, enabling a natural and smooth opening and closing .
Typical Structure: Generally includes the hinge base (fixed to the body), the hinge body (connecting the door panel), and the core shaft or bearing system. Some designs also include the connection plate and the clearance adjustment hole, facilitating maintenance and adjustment of the door gap .
Installation Position: Located at the upper edge of the rear door, it is in alignment with the top structure of the body, ensuring that the rear door remains stable and does not shake when opening .
Cooperative Components: Often works in conjunction with pneumatic springs or torsion springs to assist in supporting the weight of the rear door and reducing the force required for manual opening/closing .
Materials and Types: Mostly made of high-strength steel or aluminum alloy. Some high-end models use hydraulic buffer hinges (damping hinges) to reduce the impact and noise when closing . In short, the upper hinge component of the car rear door = the tailgate hinge = the key connecting piece that supports, rotates and stabilizes the opening and closing of the rear door.
The upper hinge component of the car rear door (typically the tailgate or trunk lid) is a key mechanical component that connects the tailgate to the vehicle body. Its functions are mainly reflected in the following aspects:
Support and stability: The hinge bears the weight of the tailgate, ensuring it remains stable during the opening process and does not suddenly drop or shake due to its own weight.
Smooth opening and closing: Through precise design (such as a two-stage structure), the tailgate can rotate smoothly and naturally when opening and closing, enhancing usability.
Position adjustment: Some hinge connection plates have long holes, allowing the adjustment of the up and down, left and right gaps of the tailgate to ensure the door gap is uniform and tightly sealed, improving aesthetics and sealing performance.
Safety guarantee: During vehicle movement or encountering bumps, the hinge can maintain the stability of the tailgate, preventing abnormal sounds, loosening, or accidental opening, ensuring driving safety.
Integration with intelligent functions: In electric tailgate models, the hinge often integrates an electric drive module and sensors, supporting anti-clamping, memory opening and closing angles, and foot-kick sensing, among other intelligent operations.
This component is usually located on the inner side of the tailgate top and is connected to the vehicle body through a hinge seat, forming a rotational fulcrum.
The repair method for the upper hinge component of the car rear door's damage depends on the degree of damage. The following is a systematic handling plan based on authoritative automotive repair data:
Determine the type and severity of the damage
Minor damage: Such as loose hinge, abnormal noise, slight deformation, or incomplete closing.
Moderate damage: Such as severe wear of the hinge shaft or holes, opening and closing jamming, or car door sagging.
Severe damage: Such as hinge body fracture, severe deformation that cannot be corrected.
Corresponding repair methods
Minor damage (can be repaired by oneself)
Loose: Use a wrench to tighten the hinge fixing screws, be careful not to over-tighten and cause thread slippage .
Abnormal noise:
Clean the hinge surface of dirt;
Apply WD40, grease, vegetable oil, or special lubricating grease for lubrication .
Deformation (incomplete closing, rebound):
Use a 100mm-long, 40mm-wide, 15–20mm-thick wooden block;
Open the car door to the appropriate angle, insert the wooden block into the deformed area;
Gently close and apply pressure to correct, repeat several times to avoid excessive force at once .
Moderate damage (suggested professional handling)
Severe wear of the hinge shaft or holes:
Try adjusting the lower hinge position (as above);
If ineffective, loosen the upper hinge fixing screws (if it is a long-hole structure), slightly adjust the car door gap;
If still cannot be resolved, usually a new hinge component needs to be replaced .
Misaligned car door:
First check and tighten the screws;
If there is no loosening but still misaligned, it may involve a deformation of the vehicle body structure, requiring professional assessment .
Severe damage (must replace or weld)
Hinge fracture:
Steel stamping hinge: Weld repair is possible, require opening a bevel, use low-carbon steel welding rods for multi-layer welding, and smooth the weld seam .
Cast iron hinge: Generally, it is recommended to replace directly, as welding is difficult and prone to cracking .
Replacement process (refer to):
Confirm the model-matched hinge type;
Prepare tools (wrench, screwdriver, rust remover, etc.);
Remove the old hinge (protect the paint surface, and two people may need to assist when necessary) ;
Install the new hinge, pre-tighten, then calibrate the car door gap;
Repeat opening and closing tests to confirm no jamming or abnormal noise before final tightening the screws;
Apply vaseline or lubricating grease to the moving parts to extend the lifespan.
Precautions
Safety first: Wear gloves during operation, have someone assist when removing and installing the car door, to prevent falling and injuring people or damaging the paint .
Dealing with rust： For stuck screws， spray rust remover， let it stand for 5–10 minutes before loosening . If you have no experience: It is recommended to take it to a professional repair shop for handling to avoid secondary damage.
