What is the key component of the vehicle's entire lock system?
The automotive whole vehicle lock key assembly refers to a complete mechanical and electronic integrated system used in vehicles to achieve functions such as unlocking/closing the doors, starting the engine, and implementing anti-theft control. It not only includes physical keys and lock cores, but also encompasses the electronic control units, sensors, and transmission mechanisms that work in conjunction with them. Component parts
Key Components
Mechanical Key: Used for inserting into the ignition cylinder or door cylinder for physical operation.
Remote Chip/Electronic Chip: Built-in RFID or encryption chip for vehicle identification and anti-theft verification.
Battery: Supplies power for the remote function.
Buttons: Control functions such as locking the car, unlocking, opening the trunk, etc.
Shell: Protects the internal structure, usually featuring anti-slip and wear-resistant design.

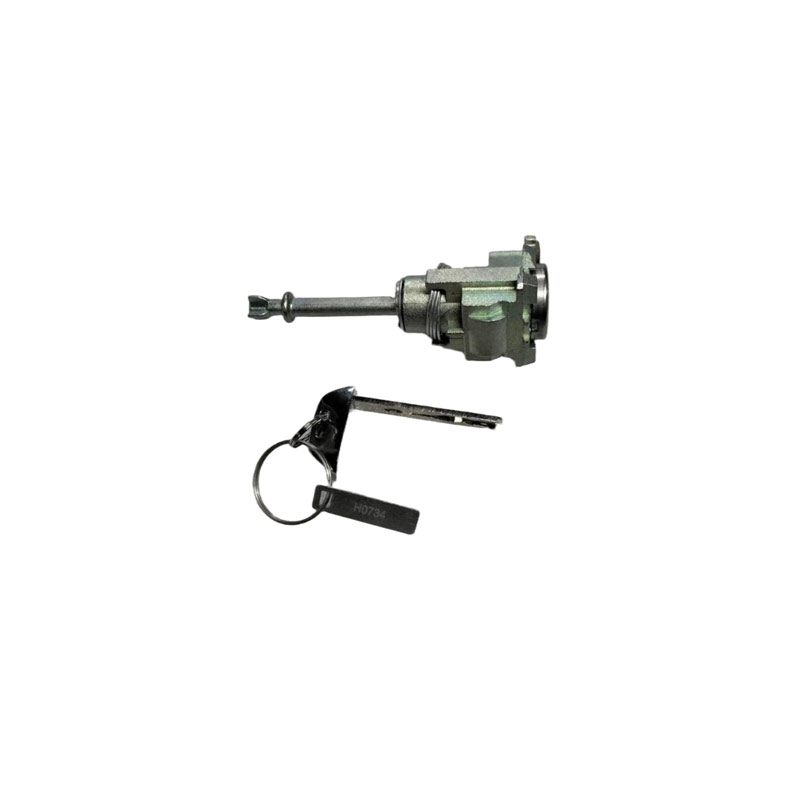

Lock Cylinder Components
Ignition Cylinder: Located under the steering wheel, used to start the engine, often linked with the steering wheel locking mechanism.
Door Cylinder: Located inside the door handle, used for mechanical opening of the door.
Lock Body and Lock Lever: Cooperates with the door frame lock catch to achieve physical locking of the door.
Link Rod Mechanism: Converts the rotation of the lock cylinder into the movement of the lock lever.
Electronic and Control System
Centralized Door Lock Assembly: Driven by an electric motor or electromagnetic coil to achieve one-click locking/unlocking of all doors.
Anti-theft Control Unit: Receives signals from the key chip, verifies them, and allows engine startup only after approval.
Hall Sensor/Microswitch: Detects the door status to prevent accidental touching or foreign object jamming.
Key Features
Safety Protection: Combines mechanical locking and electronic anti-theft to form the first line of defense for the entire vehicle.
Convenient Operation: Supports keyless entry, one-click start, remote vehicle search, etc.
Environmental Adaptability: Modern lock cylinders adopt sealed design, copper alloy pins, etc., to enhance dust resistance, water resistance, and wear resistance.
Linked Control: The driver operates one door lock, which can simultaneously control other doors and the trunk.
Common Problems and Maintenance Suggestions
Lock Cylinder Stuck: Often caused by the steering wheel locking not being released, key wear, or lack of oil in the lock cylinder. Try gently turning the steering wheel + twisting the key, or use graphite lubricant.
Remote Failure: Commonly due to battery depletion. Use a mechanical key as an emergency to start the vehicle.
Regular Maintenance: Avoid using grease-based lubricants (they will attract dust), recommend dedicated car lock cylinder graphite spray.
The vehicle's entire lock cylinder key assembly is the core part of vehicle safety and control, mainly focusing on four aspects: identity verification, anti-theft, mechanical operation, and electronic control. Based on current mainstream technologies (as of 2026), the specific functions are as follows:
Core Function
Identity Verification and Anti-theft Start
The key contains an anti-theft chip. When inserted into the ignition cylinder and rotated, the ignition coil reads the chip code and compares it with the encrypted information pre-stored in the vehicle's ECU (Engine Control Unit). Only a successful match allows the engine to start, effectively preventing unauthorized starts.
Remote Control and Keyless Entry
The key inner case contains a wireless transmitter that supports keyless entry (PEPS) and one-click start. When close to the vehicle, the door lock sensing chip automatically recognizes the key signal, achieving automatic unlocking/locking; pressing a button can remotely start, beep, or search for the vehicle.
Mechanical Emergency Operation
Even if the electronic system fails (such as battery depletion), the key usually incorporates a backup mechanical key that can be manually unlock the door or turn the ignition switch, ensuring the vehicle can still be used in emergency situations.
System Integration and Safety Collaboration
The lock cylinder key assembly is linked with the vehicle's anti-theft system, central door lock, child safety lock, etc., forming a complete security system. For example, some models support "single-click unlock of the driver's door" to enhance safety.
Summary of Composition Structure
Anti-theft Chip: Passive, 125kHz frequency, no battery required, powered by induction
Wireless Transmitter Module: Contains battery, antenna, encoding IC, for remote function
Mechanical Lock Cylinder: Matches the vehicle lock hole, drives the lock lever mechanism
Inner Circuit Board: Integrates all the above electronic components Note: If the key chip is damaged or the battery runs out, it may cause the device to fail to start or lose remote functionality. It is recommended to conduct regular checks and keep a spare key that is compatible with the original factory model.
