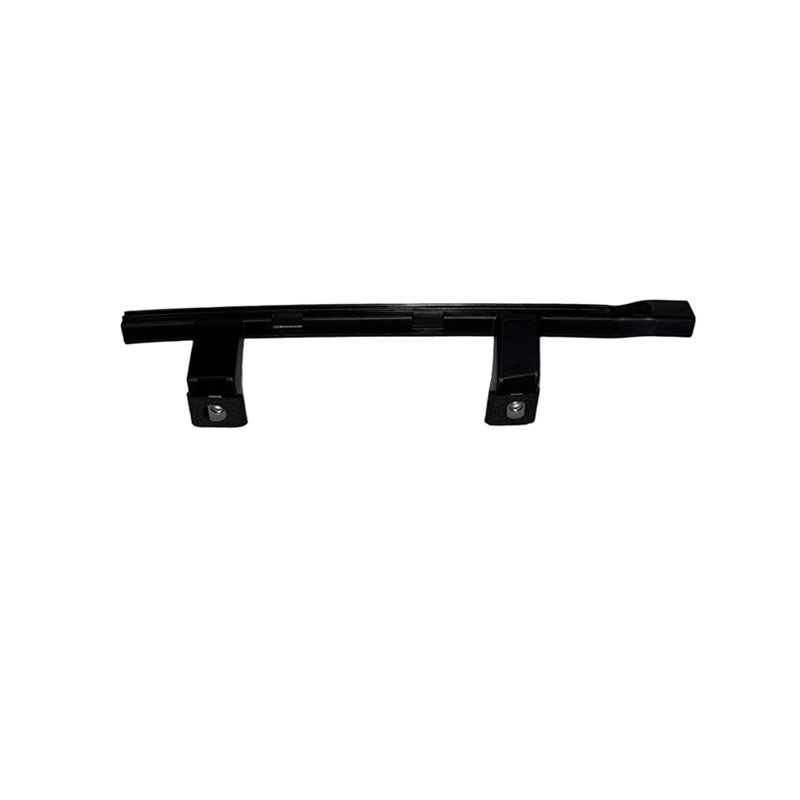

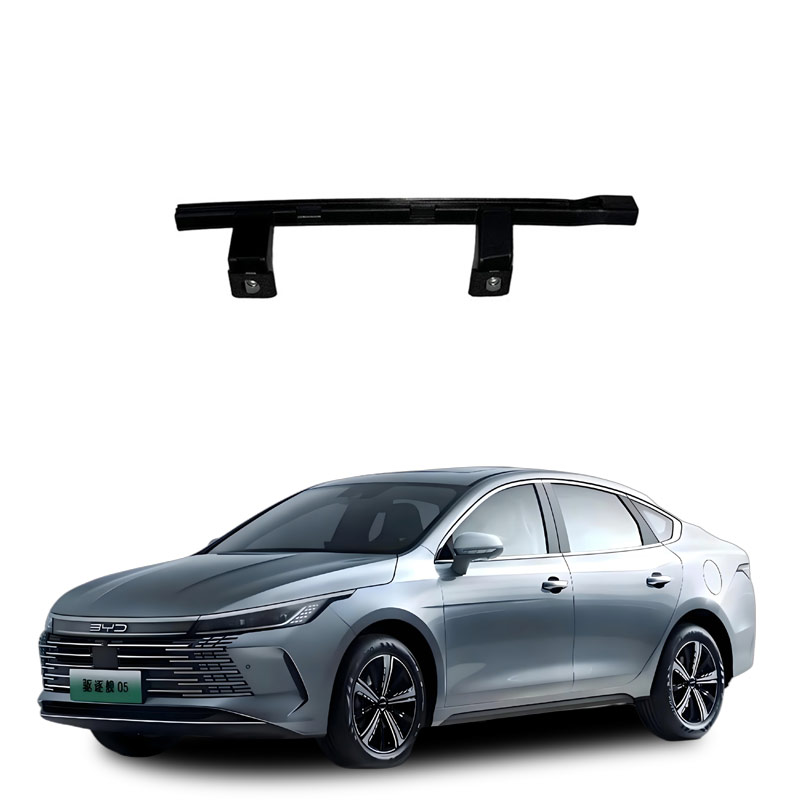

The function of the left front door moving guide assembly of the car
The left front door moving guide assembly is a key component in the door system. Its main functions are as follows:
Guiding the smooth up and down movement of the window glass: As the running track for the window regulator, it ensures that the glass moves along the preset trajectory, avoiding deviation or jamming.
Support and bearing: Withstanding the weight of the glass and the dynamic loads during operation, ensuring structural stability.
Reducing friction and abnormal noise: Through precise fitting and lubrication, it reduces the friction between moving parts, improves the smoothness of the up and down movement and reduces noise.
Enhancing safety and sealing: In conjunction with the door frame sealing structure, it enhances the overall sealing effect of the door, preventing rainwater and dust from entering.
This component is typically made of metal (such as cold-rolled steel sheet SPCC) in a U-shaped slot structure, fixed on the inner panel of the door, and works in coordination with the window regulator motor, guide slot, etc. If there is any card movement, abnormal noise or glass shaking, it might be necessary to check whether the guide rails are deformed, worn out or inadequately lubricated.
The "fault of the movable guide rail assembly" for the left front door of a car usually refers to problems such as jamming, abnormal noise, poor operation, or even complete failure during the window glass raising and lowering process. According to the current (April 2026) authoritative public information available, the common causes and solutions for such faults are as follows:
Common Causes and Solutions
Guide rail blockage or dust accumulation: Foreign substances such as dust and sand enter the guide rail, increasing the resistance during window glass raising and lowering.
Solution: Clean the guide rail and apply lubricating grease or specialized lubricating oil.
Guide rail installation deviation or looseness: The position of the guide rail is off or the fixing screws are loose, causing obstruction in the glass lifting process.
Solution: Check and tighten the fixing screws of the lifting unit, and if necessary, adjust the installation position of the guide rail.
Sealant strip (mud groove) aging or deformation: The sealing strips or mud grooves on both sides of the glass age, harden, or deform, causing the glass to get stuck.
Solution: Clean and apply talcum powder or vaseline; if severely deformed, replace the new sealant strip.
Guide rail itself damaged or broken: The metal or plastic guide rail suffers physical damage, affecting the movement trajectory of the glass.
Solution: Usually, it is necessary to replace the entire window glass raising unit or guide rail assembly.
Motor overload or mechanical component wear: Long-term use leads to wear of internal gears, cables, sliders, etc. in the lifting unit, which indirectly manifests as abnormality in the guide rail system.
Solution: Professional maintenance is required, and if necessary, replace the lifting unit assembly.
Initial Self-Check Suggestions
Try initializing the window glass:
Turn on the ignition switch, raise the window to the top, hold the switch for more than 3 seconds, then lower it to the bottom and hold for more than 3 seconds, repeat 1-2 times. Some models can restore the one-click raising and lowering function through this operation.
Observe for any abnormal noise or jamming:
If only abnormal noise occurs at a specific position (such as halfway up), it is mostly a problem with the guide rail or sealant strip; if there is no power throughout, it may involve the motor or circuit.
Check the fuse and battery condition:
Although a single fault in the left front door can usually rule out the fuse problem (other windows are normal), it is still recommended to confirm if the battery voltage is normal.
Maintenance Suggestions
If the above operations are ineffective, it is recommended to go to a regular 4S store or professional auto repair shop to dismantle the door panel for a detailed inspection, focusing on checking the guide rail assembly, lifting unit bracket, and motor status.
When replacing the guide rail or lifting unit assembly, prioritize choosing original or reliable quality parts to avoid repeated failures caused by insufficient precision of sub-brand parts.
