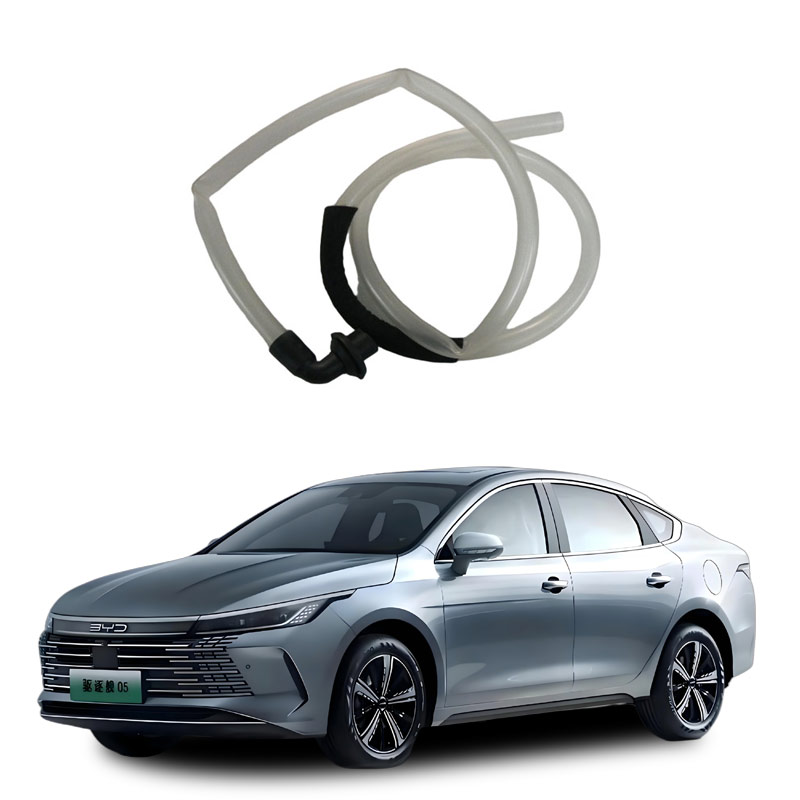

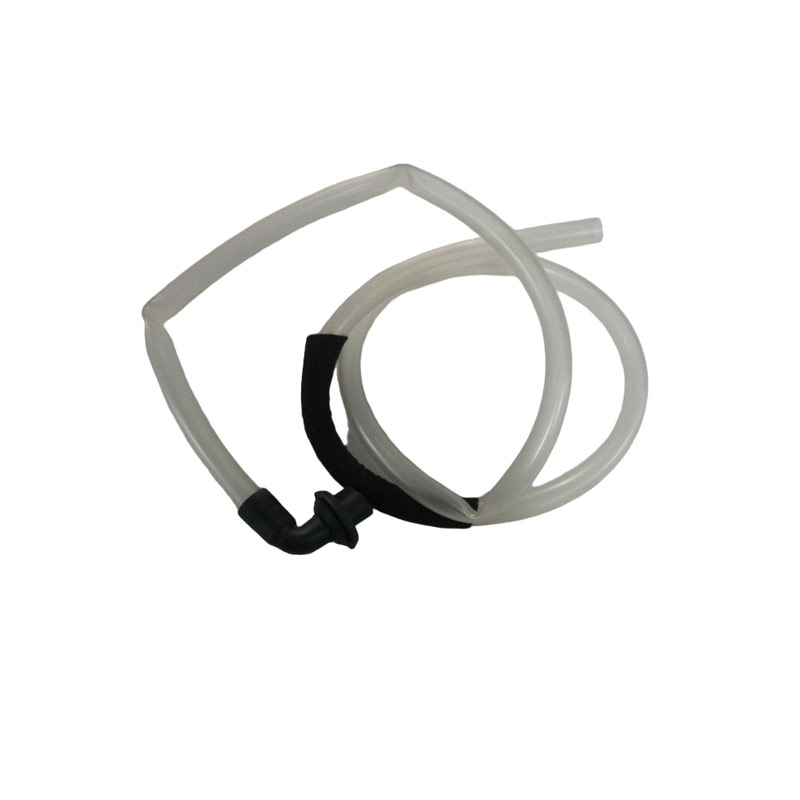

What is the rear water pipe assembly of the car?
The rear of a car typically does not have a "traditional water pipe assembly" because water pipes are mainly used for the circulation of the cooling system and are usually located in the engine compartment or at the front. However, based on public information and common misunderstandings, the following situations may exist:
Components that may be mistaken for "rear water pipes"
Exhaust system-related components: such as mufflers, three-way catalytic converters, etc., sometimes are mistaken for "leaking water pipes" due to the discharge of internal condensate water.
A/C drainage pipe: used to discharge the condensate water produced by the A/C evaporator, its outlet is often located on the vehicle chassis or under the front engine hood, and may be close to the rear area.
The true definition of "car water pipe assembly"
The car water pipe assembly belongs to the cooling system and its main function is to convey coolant to maintain the normal operating temperature of the engine. Common types include:
Inlet pipe: connects the water pump to the engine water channel, providing coolant.
Outlet pipe: connects the engine water channel to the radiator, conducting hot coolant.
Heating water pipe: connects the radiator to the vehicle's heating water tank, providing heating.
These pipes generally do not extend to the rear of the vehicle, except for some special models (such as large buses, campers) with rear-mounted engines, but even in such cases, their pipes still belong to the extension part of the engine compartment, rather than "rear-specific components". Conclusion
If you see a structure resembling a "water pipe" at the rear of the vehicle, it is more likely to be:
Exhaust pipe condensate drainage outlet (normal phenomenon);
The end of the air conditioning drainage pipe;
Or a mistaken recognition of the exhaust system.
The real cooling water pipe components are concentrated in the engine compartment and the front part, and are rarely installed at the rear. If there is a specific model or photo, a more precise judgment can be made.
The function of the water pipe components at the rear of the vehicle mainly depends on the system they belong to. According to public information, common water pipe components at the rear of cars usually belong to the cooling system or the air conditioning drainage system, and their specific functions are as follows:
The rear water pipe components in the cooling system
Transporting coolant: Connecting the engine water channel with the radiator (or auxiliary water tank), forming a closed loop, transporting the hot coolant out for cooling, and then sending the cold coolant back to the engine to maintain normal operating temperature.
Ensuring heat dissipation efficiency: Through the "upward outlet and downward inlet" pipe layout, using gravity to enhance heat dissipation efficiency by approximately 15%.
Preventing engine overheating or undercooling: Ensuring the engine operates within an appropriate temperature range, reducing wear and controlling emissions.
The rear water pipe (drainage pipe) in the air conditioning system
Discharging condensate water: Guiding the condensate water produced by the air conditioning evaporator to the outside of the vehicle to prevent backflow into the interior.
Anti-backflow design: Some models use one-way valves or blocking ball structures to prevent external mud, water, or debris from flowing back.
Adapting to temperature differences and vibrations: Using segmented materials (such as EPDM inside the vehicle and silicone outside) and shock-absorbing installation structures to enhance durability.
If you find that there is continuous heavy dripping at the rear of the vehicle, you need to distinguish whether it is air conditioning condensate water (normal phenomenon) or coolant/机油 leakage (abnormal situation). The latter requires immediate repair. If you need to make a more detailed determination of the water pipe layout of a specific model, you can refer to the vehicle maintenance manual or use professional diagnostic tools.
When a "water pipe component failure" occurs at the rear of the car, it is usually related to the cooling system or the drainage system. The specific cause needs to be determined based on the location and symptoms of the failure. Here is a comprehensive analysis based on public information:
Possible causes:
- Related to the cooling system (dashboard indicates the water pipe failure light is on)
- Cooling fluid leakage (broken water pipes, loose connections)
- Aging, corrosion, or poor material quality causing rupture of water pipes
- Pump failure, radiator blockage or fan malfunction, resulting in abnormal system pressure
- Thermostat failure or cylinder gasket damage, causing high temperature and high pressure
- Problems with rear drainage/sealing (leaking inside the car or at the rear)
- Blocked sunroof drainage pipe or aging and cracking of the connection (especially common in SUVs such as Touareg)
- Blocked air conditioning condensate drainage pipe, causing water to leak into the rear seat or the rear of the car
- Failure of chassis sealant, water ingress into storage compartments or clogging of the door drainage holes
- Recommended handling steps:
- Immediately stop the vehicle for inspection: If the dashboard has the "water pipe failure light" on, do not continue driving to prevent the engine from overheating and getting damaged.
- Observe the location of the leakage and the color of the liquid:
- Green, red or colored liquid: Mostly cooling fluid leakage, which is a cooling system problem;
- Colorless transparent water: May be air conditioning condensate water or exhaust pipe condensate water, which is a normal phenomenon.
- Initial inspection items:
- Check if the coolant reservoir level is normal;
- Are there any obvious cracks, expansion, or leakage in the water pipes;
- Is there water accumulation at the rear, and determine it in combination with the use of the sunroof and air conditioning.
- Contact professional repair: Due to the safety of the engine, it is recommended to go to a regular repair shop or 4S store for diagnosis as soon as possible to avoid damage caused by self-handling.
