What is an automotive elastic distortion rod?
"The automotive elastic torsion bar" usually refers to the torsion bar (also known as the torsion spring or the stability bar), which is a key elastic component in the vehicle suspension system. Its core function is to absorb and resist vehicle body side-sway or road impact through torsional deformation.
Basic Definition and Principles
Essence: The torsion bar is a rod-shaped spring that utilizes the elastic deformation of material to store and release energy. It is typically made of high-strength spring steel.
Working Principle:
When the vehicle turns or encounters uneven road conditions on one side, the left and right wheels create a height difference, causing the torsion bar to undergo torsional deformation.
The torsional deformation generates an opposing restoring torque, which inhibits the vehicle body from side-sway and enhances stability.
Main Functions
Suppressing side-sway: During turns, reducing the angle of vehicle body inclination, improving handling stability and safety.
Balancing left and right wheels: On bumpy roads, by connecting the left and right suspensions, it transmits part of the force, enhancing comfort.
Compact structure: Occupies little space, suitable for use in independent suspension systems, especially common in off-road vehicles and tanks.
Common Types and Application Scenarios
Lateral stability bar (anti-roll bar):
Installed laterally between the suspension of the chassis, in a U-shape.
Mainly used to reduce side-sway during turns. Measurements show it can reduce side-sway by over 40%.
Torsion spring (as the main elastic component):
One end is fixed to the frame, and the other end is connected to the rocker arm or the wheel.
Widely used in tanks (such as M1, Leopard 2, Type 99), some sedans (such as older Volkswagen and Toyota models), and off-road vehicles.

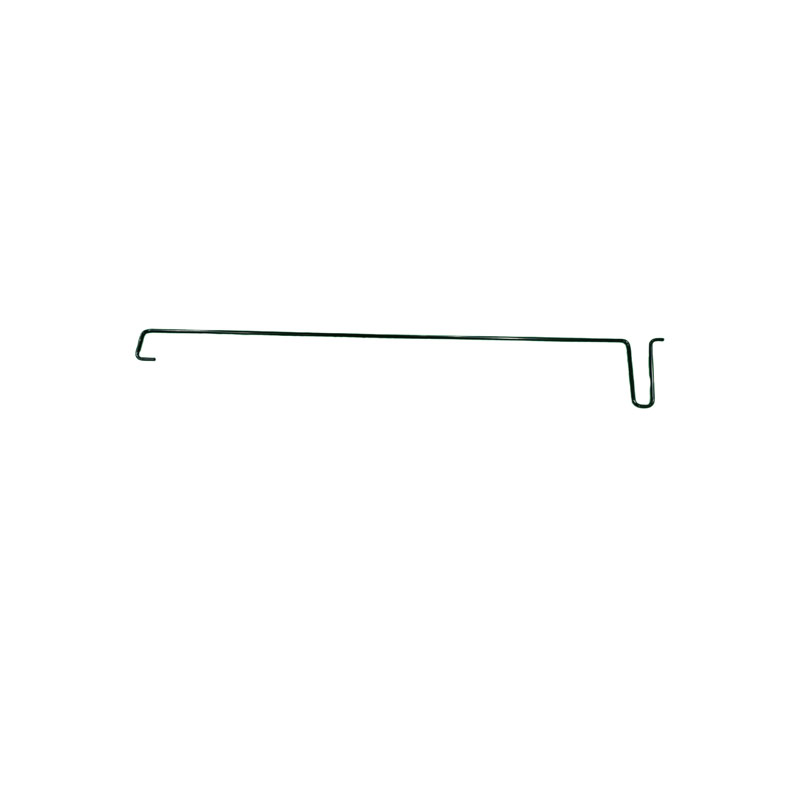

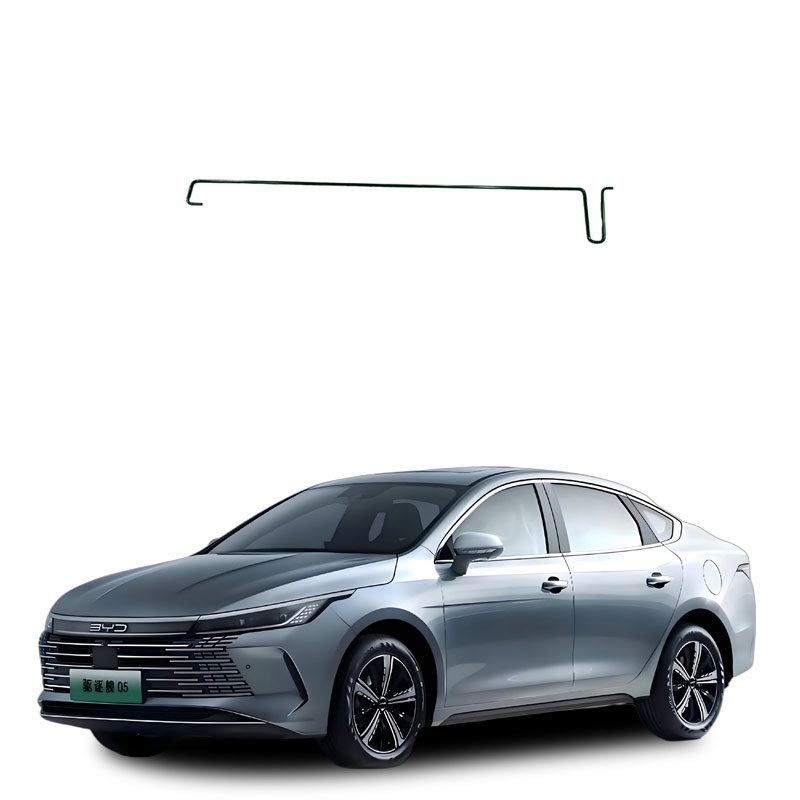

Rear trunk torsion bar:
Used to support the automatic lifting of the trunk lid, a small application of torsion bars.
Materials and Manufacturing Characteristics
Material: High-strength spring steel, with tensile strength up to 1200 MPa.
Surface Treatment: Often coated with epoxy resin, glass fiber cloth, or anti-rust paint to prevent corrosion and wear.
Manufacturing Process: Includes cold/hot forming, shot peening, and strong torsion pre-stressing treatment, to increase fatigue life.
The "elastic torsion bar" in automobiles usually refers to the torsion bar (or called the torsion spring, lateral stability bar), which is a key elastic component in the vehicle suspension system. Its main function is to suppress vehicle body side-sway, enhance handling stability and passenger comfort.
Core Function
Reducing vehicle body side-sway during turns: When the vehicle turns, centrifugal force causes the vehicle body to tilt outward. The torsion bar generates an opposing force through torsion, balancing the force on the left and right wheels, keeping the vehicle body in a more level posture.
Improving driving stability: In emergency lane changes, high-speed turns, or on uneven roads, the torsion bar responds quickly, reducing vehicle body shaking, and enhancing driving controllability.
Improving passenger comfort: By absorbing and distributing part of the vibration energy, it reduces the lateral force and bumping felt by passengers.
Collaborating with the suspension system: Working with springs and shock absorbers to optimize the vehicle's dynamic performance, and at the same time, extending the lifespan of other suspension components.
Brief Description of Working Principle
Straight driving or bilateral simultaneous movement (such as passing over )： The torsion bar does not undergo torsional deformation， having little impact on the suspension movement， ensuring comfort.
Turning or single-sided compression (such as compression of the outer wheel， stretching of the inner wheel)： The torsion bar undergoes torsional deformation， generating an anti-rotation torque， attempting to bring the two wheels back to a similar height， thereby suppressing side-sway.
Key Characteristics
Material： Mostly uses chromium-vanadium alloy spring steel， with heat treatment， shot peening， etc.， to improve fatigue life.
Structural Form： Commonly a circular solid rod， a few are tubular or rectangular； one end is fixed to the frame， and the other end is connected to the rocker arm or the stability bar connecting rod. Adjustability: By changing the rod diameter, rod length, arm length or angle, the hardness can be adjusted to meet the requirements of different vehicle models (such as hard rods for sports cars and soft rods for family cars).
Application scenarios:
Passenger vehicles: Widely used as stabilizing rods in front and rear suspensions (especially for sedans and SUVs).
Off-road vehicles/military vehicles: As the elastic element of the main suspension (such as tanks and armored vehicles), it has a compact structure and high reliability.
High-end vehicles: Some electric off-road vehicles (such as Overvantage U8, Rivian R1S) adopt active torsion bar suspension, with a response speed of 80 milliseconds.
Note: If the vehicle undergoes modification (such as raising the chassis) and the pre-tightening force or angle of the torsion bar changes, it may cause shaking or abnormal handling. It is recommended to have it adjusted by a professional institution and re-perform four-wheel alignment.
