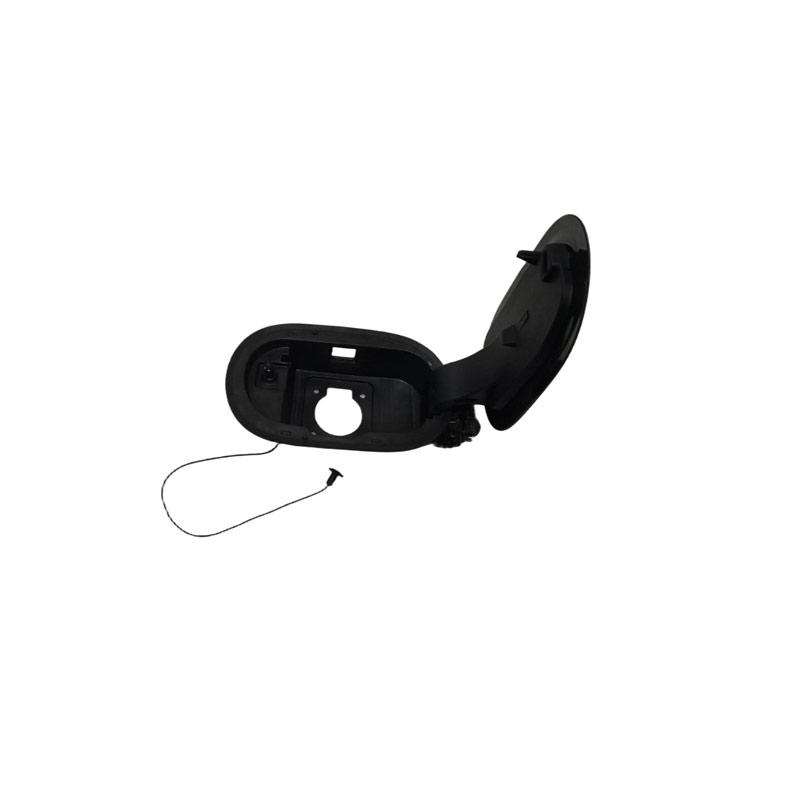

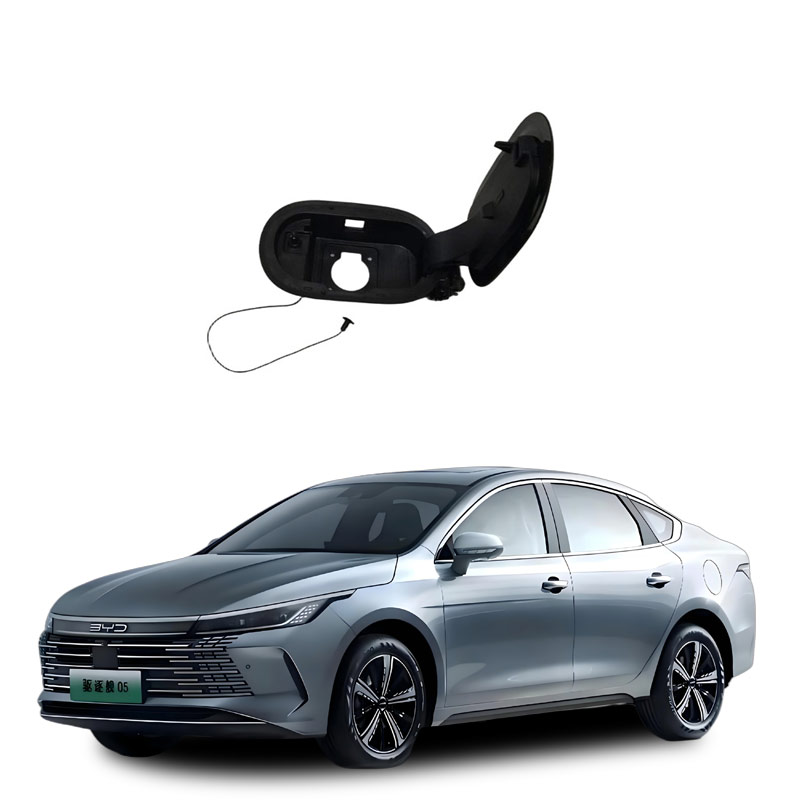

What is the car charging port cover assembly?
The car charging port cover assembly is a mechanical structure on new energy vehicles used to protect the charging interface. It is usually installed on the side panel or front/back fender of the vehicle, and its main functions include:
- Physical protection: Preventing dust, rain, and foreign objects from entering the charging port, avoiding short circuits or corrosion;
- Sealing and waterproofing: Enhancing overall sealing performance through sealing rings and sealing structures, adaptable to various weather conditions;
- Convenient operation: Supporting manual or automatic opening/closing, some models achieve intelligent sensing opening/closing;
- Aesthetically integrated: Coordinating with the vehicle's exterior appearance, some designs use magnetic attachment, snap-fit, or hinge methods to achieve a smooth fit.
Core components (based on multiple patent technologies)
- Shell/Bottom Plate: Fixed to the vehicle body, containing the charging interface channel;
- Cover Plate: The movable part covering the charging port, capable of hinging, rotating, or sliding;
- Sealing Structure: Such as the first and second sealing rings, used for double sealing between the cover plate and the shell, and between the shell and the charging port;
- Drive/Transmission Mechanism (for some models):
Elastic member + slider + transmission rod, achieving automatic opening;
Actuator + motor, supporting electric opening/closing;
Magnetic attachment + electromagnetic snap-fit, enhancing locking reliability;
- Connection and Installation Components: Such as self-tapping screws, bolts, legs, etc., suitable for plastic or sheet metal side panels;
- Reset/Limiting Mechanism: Ensuring the cover plate automatically returns or remains in the middle position.
Typical application scenarios and innovative directions
- Lightweight design: Using a fully plastic structure to reduce weight and improve vehicle energy efficiency;
- Intelligent interaction: Integrating millimeter-wave radar and pressure sensors to achieve automatic opening/closing and safety alerts;
- Space optimization: After opening, the cover plate is close to the vehicle body, reducing external occupation space;
- High sealing performance: Multiple waterproof designs to prevent water ingress leading to circuit breakage and damage to the metal contacts;
The car charging port cover assembly (commonly referred to as the charging port dust cover or charging port protection cover) is small in size but plays a crucial role in safety and protection in the daily use of new energy vehicles. Its main functions can be summarized as follows:
Core functions
- Dust and foreign object prevention: Effectively blocking dust, sand, hair, debris, etc. from entering the charging interface, avoiding contact failure, power interruption, or interface oxidation damage due to impurities accumulation;
- Waterproof and moisture-proof: Preventing water from entering the charging port during rainy days, washing the car, or driving in waterlogged sections, reducing the risks of short circuits, leakage, or metal component corrosion;
- Preventing foreign objects from being inserted: Avoiding children or others inserting small objects into the charging port, reducing safety hazards;
- Buffer and shock resistance: Providing protection in minor scratches or collisions, reducing physical damage to the metal contacts of the charging interface;
- Enhancing sealing performance and durability: Some high-end designs use multi-layer sealing rings, magnetic attachment structures, or silicone materials to enhance reliability in extreme temperatures (such as -30°C low temperatures), high humidity, salt fog, etc.;
Intelligent evolution trend
In recent years, some models have equipped with an intelligent automatic charging port cover, with the following advanced functions:
- Automatic opening and closing: Through millimeter-wave radar or Bluetooth key sensing, the cover plate automatically pops open when the owner approaches, and automatically closes after charging;
- Safety alarm: For example, Tesla Model 3 integrates a pressure sensor, detecting tampering or improper closing, and the vehicle's system emits an alarm and cuts off power;
- Self-cleaning and water repellency: For example, the Xpeng G9 uses a nano coating, preventing dirt and easy cleaning; the BYD cold-resistant cover plate can operate normally at -30°C;
- Automatic reset: The Guangzhou patent design uses an elastic member to achieve the cover plate's automatic return, improving usability;
Materials and compatibility
Common materials include:
- Plastic (PP/PC): Lightweight, low cost, but may age due to long-term ultraviolet exposure. Rubber/Silicone: Excellent elasticity, strong sealing performance, resistant to high and low temperatures, suitable for harsh climates.
Composite Materials: Combining strength and sealing performance, mostly used in high-end vehicles.
It is recommended that car owners regularly check whether the dust covers are intact and can open and close smoothly to ensure they always perform their protective functions. If the original cover is damaged, you can purchase replacement parts suitable for the vehicle model, such as the deluxe fast charging protection cover or the small-sized slow charging protection cover, etc.
