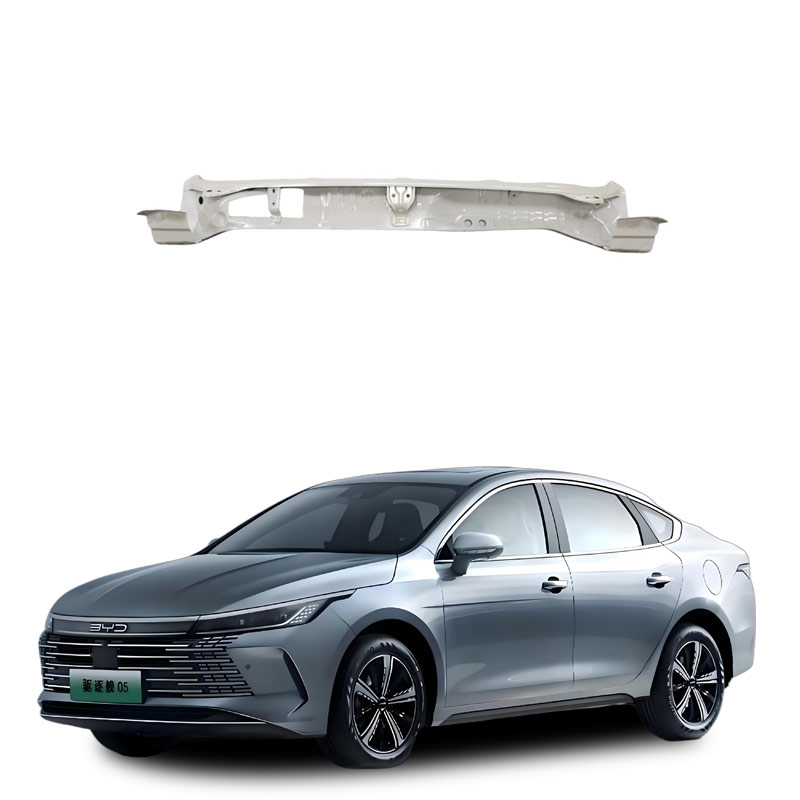

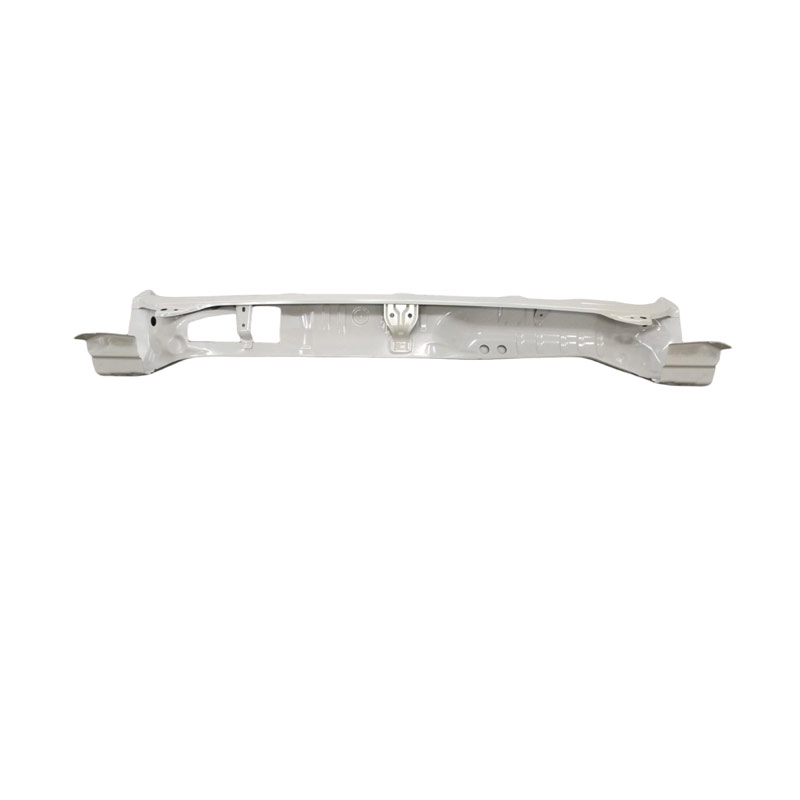

What is the front windshield crossbeam assembly of a car?
The front windshield crossbeam assembly is an important component in the vehicle body structure, mainly used to support the front windshield and enhance the stiffness and modal performance of the complete vehicle body.
According to public information:
This component is located beneath the front windshield and is usually connected to the inner sides of the left and right A-pillars. It is part of the complete vehicle body structure.
Its main functions include:
Supporting the front windshield;
Enhancing the structural stiffness and modal performance of the entire vehicle (i.e., the ability to resist deformation and vibration);
In some designs, it also optimizes through structures such as square holes, providing assembly space for the front shock absorber.
Chery Automobile applied for a patent in August 2025 (public number CN120792968A) that detailed the structure of this assembly: It is composed of the front crossbeam assembly and the rear crossbeam assembly that overlap front and back, and is strengthened by welding the lower longitudinal beam to achieve higher stiffness and NVH (noise, vibration and sound insulation) performance.
In summary, the front windshield crossbeam assembly is not only the installation foundation for the front windshield but also a key structural component for enhancing the overall stiffness and safety of the vehicle body.
The crossbeam assembly beneath the front windshield of a vehicle typically refers to the front windshield crossbeam (or called front windshield upper crossbeam or front windshield upper beam), which is an important component in the vehicle body structure that connects the left and right A-pillars and supports the front windshield. According to public information, its main functions are as follows:
Core function
Structural support and rigidity enhancement
The front windshield crossbeam and the left and right A-pillars, as well as the front longitudinal beam, together form the "frame structure" of the vehicle's front part, significantly enhancing the torsional and bending stiffness of the vehicle body, which helps maintain the stability of the passenger compartment during driving and collision.
Safety protection (collision energy management)
In frontal or side impact collisions, this crossbeam participates in transmitting the impact force to the left and right longitudinal beams, cooperating with the energy absorption zone to disperse energy and reduce intrusion into the passenger compartment, improving passive safety.
Front windshield glass installation reference
As the structural installation foundation for the front windshield glass, it ensures the stability of the glass seal and optical vision, and assists in maintaining the roof strength during rollover accidents, ensuring the head survival space.
Component fixation function
It is usually used to fix driving assistance system components such as the front windshield wiper motor, front camera, millimeter-wave radar (for some models), etc., providing a stable installation platform for ADAS.
Additional explanation
Although some materials refer to "front crossbeam" as the first crossbeam behind the front bumper (i.e., the front impact beam), the front windshield crossbeam specifically refers to the structure component located at the bottom of the windshield, connecting the A-pillars, and belongs to the main frame of the vehicle body, rather than just the impact beam used for energy absorption.
Regarding "failure of the front windshield crossbeam assembly of the vehicle", the current public information does not directly mention specific failure information of this part. However, based on vehicle structure knowledge and related maintenance knowledge, the following references can be provided:
The function and common failures of the front windshield crossbeam assembly
Function positioning: The crossbeam beneath the front windshield (usually called the front fender upper beam or instrument panel crossbeam) is an important structural component of the vehicle's front part, mainly including:
Supporting the front windshield and instrument panel;
Together with the left and right A-pillars, the engine compartment longitudinal beam, etc., forming the front part load-bearing structure;
Participating in energy absorption and transmission in collisions.
Common failure manifestations:
Deformation or cracking: Mostly caused by frontal or side impact collisions;
Poor sealing: Leading to leakage of the front windshield or abnormal noise;
Assembly loosening: Affecting the stability of the instrument panel or the normal deployment of the airbag;
Rust (especially in older vehicles): Affecting the structural strength.
Suggested handling methods Stop immediately and check: If you suspect damage to this area (such as a collision, loose glass, abnormal vehicle noise, etc.), avoid driving further to prevent potential safety hazards.
Professional diagnosis: Go to the brand's 4S store or a professional body repair shop, and use measuring tools to check if the structure dimensions of the front compartment meet the original factory standards.
Repair principles:
Mild deformation: Can be restored using correction equipment (such as a frame correction instrument);
Severe deformation or cracking: Usually requires cutting and replacement, and re-welding;
After replacement, the front lights, sensors (such as the ACC radar) and other related components must be recalibrated.
Note: This part involves the overall rigidity and passive safety performance of the vehicle body. It is not recommended to repair it yourself or perform non-professional operations.
