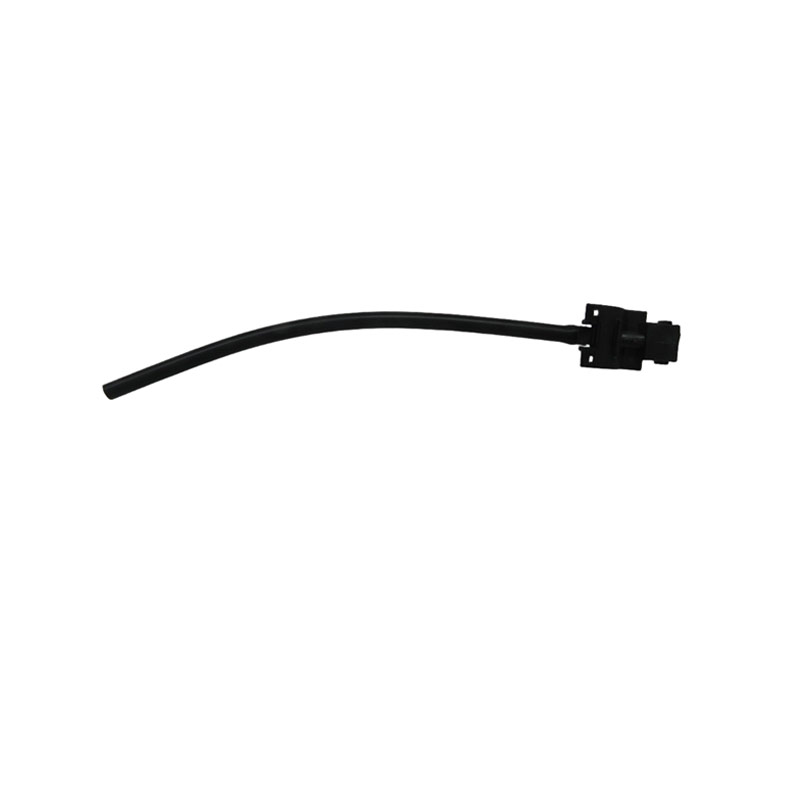

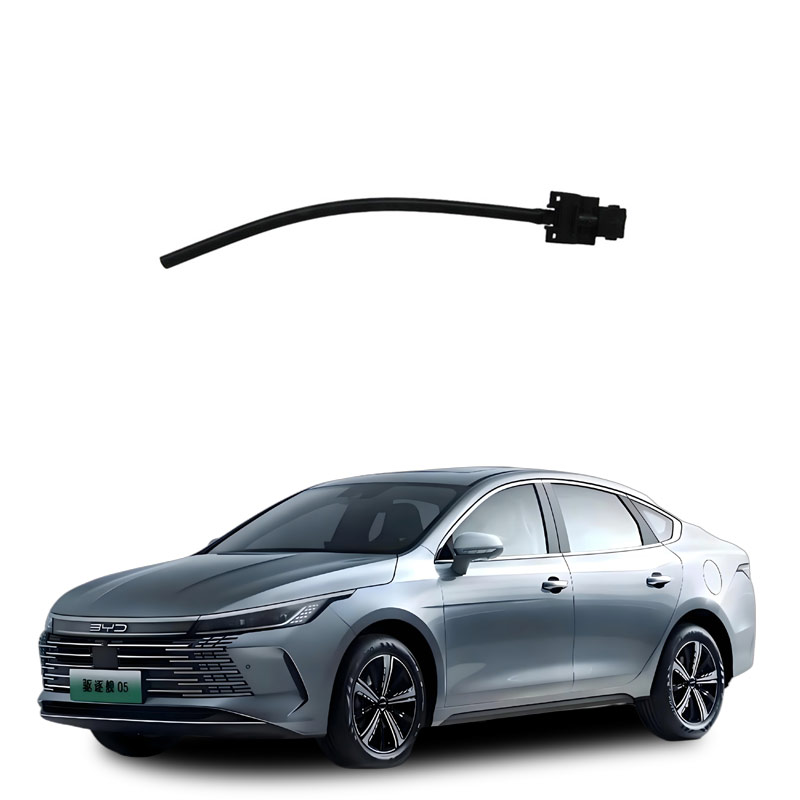

What is the car washing hose and nozzle assembly?
The automotive washer hose and nozzle assembly is a crucial component in the car windshield washing system, responsible for transporting the glass water from the reservoir and precisely spraying it onto the windshield (or headlights) to achieve the function of cleaning the view.
Main Components
Nozzle: Usually 2 to 4 in number, with a multi-hole design, it atomizes the glass water into fan-shaped or jet form and precisely sprays it onto the target surface.
Hose: Made of pressure-resistant rubber or plastic, it connects the water pump and the nozzle, transporting the washing liquid.
Connectors: Such as T-type, Y-type, I-type joints and snap-on connectors, used for fixing and sealing the pipeline.
Gaskets/Seals: To prevent leakage at the nozzle installation point.
Function and Role
When the driver operates the washing switch, the water pump pressurizes, and the glass water from the reservoir is transported through the hose to the nozzle.
The nozzle evenly sprays the liquid onto the windshield or headlights, and in combination with the wiper, removes dust, bug glue, and rain stains.
Some high-end models also use it for headlight cleaning, enhancing driving safety in bad weather or at night.
Common Problems and Maintenance
The nozzle is prone to not spraying water due to dust blockage or the detachment of internal plugs (such as in the case of BYD).
The hose may leak due to aging， bending， or insect bites， and regular checks are required.
When replacing， the "wiper hose and nozzle assembly" is often used as a complete part. Some models require specific compatible models.
Vehicle Examples
This assembly is widely used in various passenger cars， including but not limited to：
Chrysler PT Cruiser， convertible， Jeep Grand Cherokee， Patriot
Nissan Armada， Titan， Infiniti QX56 (2004–2015 models)
If you need to purchase replacement parts， you can refer to the compatible kits provided by auto parts platforms， such as a universal cleaning kit including a 5-meter hose， 12 connectors， and 2 nozzles.
Wiper Hose and Nozzle Assembly Faults and Common Causes
The common causes of faults in the wiper hose and nozzle assembly can be summarized into the following categories：
Nozzle-related faults
Nozzle blockage： Dust， dirt， or impurities block the water outlet， resulting in no water spraying or weak water spraying. This is one of the most common faults.
Nozzle angle deviation： For some models， the nozzle is installed inside the wiper arm. Over time， the angle changes， affecting the spraying effect. Nozzle freezing: Using non-anti-freeze windshield washer fluid in winter, when exposed to low temperatures, the freezing and expansion may cause damage to the internal structure of the nozzle.
Soft hose-related faults
Soft hose blockage: The pipeline between the reservoir and the water pump gets clogged due to impurities, sediment, or aging rubber.
Soft hose rupture or detachment: Long-term vibration, high temperature, or aging cause the soft hose to rupture, the interface to loosen or detach, resulting in leakage.
Soft hose bending or flattening: Improper installation or a compact engine compartment space cause the soft hose to be locally under pressure, hindering water flow.
System interlock faults
Excessive pump load: Long-term blockage of the nozzle or soft hose leads to continuous high-load operation of the pump, which may burn out the motor or fuse.
Fuse melting: Frequent attempts to start the washing system while it is blocked are likely to cause overloading of the circuit, resulting in fuse melting.
Winter freezing: The liquid in the windshield washer fluid or the pipeline freezes, not only blocking the nozzle but also possibly cracking the soft hose or reservoir.
Other potential causes
Poor water quality: Using water containing impurities or unfiltered water to prepare the windshield washer fluid accelerates the deposition in the pipeline and nozzle.
Component aging: Plastic hoses become brittle due to heat and ultraviolet radiation over a long period, and rubber parts harden and crack.
