The function of the car scraper arm assembly component
The term "scraping arm" is ambiguous in the automotive field. According to public information, it may refer to two completely different components: the "wiper arm" (used for windshield cleaning) or the "blade arm" in the suspension system (used for vehicle driving stability). Here are two possible interpretations:
If referring to the "wiper arm" (commonly known as "wiper arm" or "scraping arm")
This is the most common understanding, especially in everyday vehicle usage context.
Main functions:
Connects the wiper motor to the wiper blade, converting the motor's rotational motion into the reciprocating swing of the wiper blade.
Through springs or pressure mechanisms, makes the wiper blade evenly adhere to the glass, ensuring a clean wipe.
In rainy, snowy, or dusty conditions, provides the driver with a clear view, ensuring driving safety.
Key characteristics:
The material is mostly stainless steel, galvanized steel, or aluminum alloy, with corrosion resistance.
Common interface types include U-shaped snap fasteners, plug-in types, etc., suitable for different vehicle models.
The rear wiper also has a scraping arm, with a more compact structure and higher requirements for adjustment accuracy.
If referring to the "blade arm" in the suspension system (commonly seen in commercial vehicles or rear suspension)
Some materials refer to the "suspension link" (such as traction arm, lower arm) as the common name for it, because of its slender shape like a knife.
Main functions:
Supports the vehicle weight, connecting the wheels to the chassis.
Transmits longitudinal and lateral forces, maintaining vehicle driving stability.
Buffers vibrations, cooperating with shock absorbers to enhance comfort.
In multi-link suspension, its installation angle affects the steering characteristics (such as understeer or oversteer).
Risk warning:
If the rubber bushing ages or breaks, it will cause abnormal noise, poor handling, or even loss of control, and it is necessary to replace it in time.
How to distinguish?
Position judgment:
If located at the front or rear windshield, connecting the wiper blade → belongs to the wiper system.
If located at the vehicle bottom chassis, near the wheels, connecting the shock absorber or sub-frame → belongs to the suspension system.
Term suggestion:
To avoid confusion, it is recommended to use standard terms: "wiper arm" or "suspension blade arm/traction arm".
If further confirmation of the specific component is needed, it can be checked with vehicle photos or maintenance manuals.

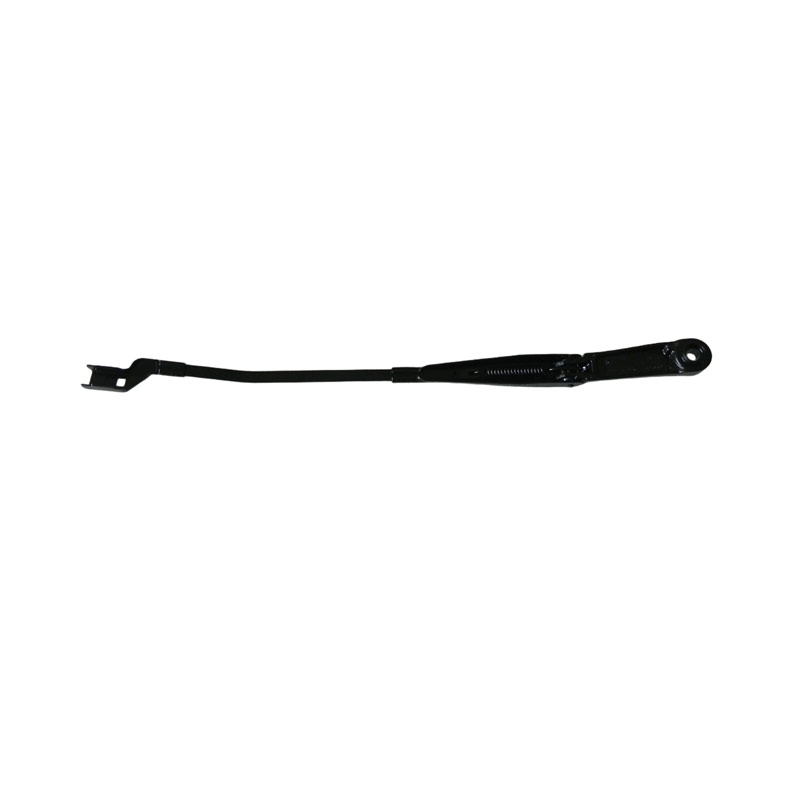

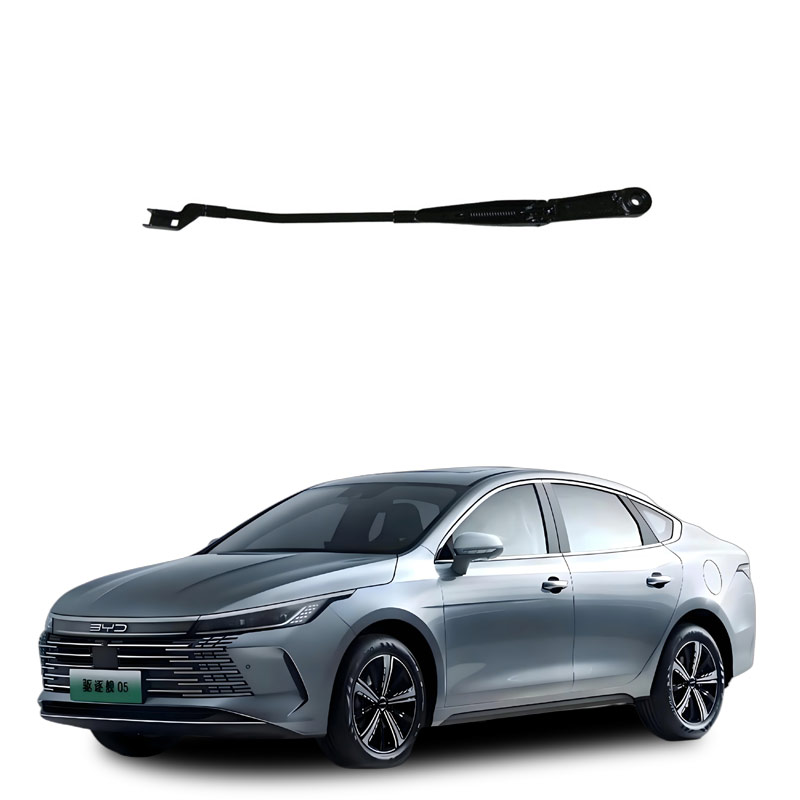

"Automotive scraping arm assembly" usually refers to the "wiper arm assembly" (or called "wiper blade assembly"), which is a key component of the vehicle wiper system, used to support and drive the wiper rubber strip to move back and forth on the windshield (or rear window) to complete the cleaning function.
Core definition and function
Basic definition: The wiper arm (Wiper Arm) is a metal or composite material component that connects the wiper linkage mechanism to the wiper rubber strip, applying pressure to make the rubber strip closely adhere to the glass surface, achieving effective wiping.
Main function:
Transmits the reciprocating motion driven by the motor;
Ensures that the wiper blade maintains uniform pressure on the glass;
Adapts to the curved surface of the glass (especially the rear window is mostly curved).
Typical structure composition
Arm body: Commonly made of galvanized steel, stainless steel or aluminum alloy, balancing strength and rust prevention;
Connection interface: Such as U-shaped snap fasteners, plug-in type or nut fixation, used to connect the drive shaft;
Pressure adjustment mechanism: Built-in spring or pneumatic device, controlling the adhesion force;
Anti-loosening/positioning structure: Such as snap fasteners, protrusions, etc., to prevent loosening during use.
Common problems and maintenance tips
Risk of poor material quality: Plastic parts are prone to cracking, metal coatings are prone to rust, especially in areas with large temperature differences and much dust.
Typical faults: Unable to wipe clean, jumping, abnormal noise, jamming, mostly due to failure of the spring or loose interface;
Suggestion: Regularly check the adhesion status, replace in time if abnormal, preferentially choose the original factory or highly compatible assembly for the vehicle model. Faults in the assembly of the car wiper arm (typically referring to the wiper arm) may involve difficulties in disassembly, cracking during assembly, abnormal wiper operation, etc. Based on the current time (April 2026) and authoritative public information, the following are the main types of faults and their causes:
Common Fault Types and Causes
Difficulty in disassembly
Corrosion at the connection point due to rust: Long-term exposure to rain, dust, acid rain, or industrial pollutants leads to corrosion of the metal components, creating a "armor" effect.
Excessive tightening of screws/nuts: Excessive torque during installation increases friction, making the components difficult to separate.
Complex vehicle structure: Some models' wiper arms use special connection methods, requiring specialized tools or specific operation procedures.
Deformation or damage of components: Such as twisted fixing brackets, cracked connection holes, etc., which hinder normal disassembly.
More prominent problems in older vehicles: Long service life, combined with vibration, fatigue, and environmental erosion, significantly increase the failure rate.
Cracking during assembly (failure of the assembly component)
Casting defects (cold segregation, shrinkage porosity): The aluminum arm seat forms an internal weak bonding layer due to poor aluminum liquid流动性 and improper temperature control during casting， reducing structural strength.
Improper assembly： Failure to flatten the wiper arm according to PDM (Product Data Management) requirements， resulting in uneven force distribution on the arm seat when tightening the screws， causing cracking.
Mold and process issues： Poor mold exhaust， insufficient control of cold mold pieces (e.g.， only controlling 8 pieces instead of 15)， prone to cold segregation defects.
Abnormal wiper operation (such as abnormal noise， vibration， incomplete cleaning)
Angle deviation of the wiper arm： The upper and lower stop points deviate from the original factory settings (e.g.， from 9° to 5°)， resulting in poor adhesion of the rubber strip.
Inconsistent spring pressure： Insufficient pressure causes incomplete cleaning， while excessive pressure accelerates rubber strip wear and increases the load on the motor.
Inadequate interface installation： The new wiper does not fully engage with the U-shaped clip or the interface， causing suspension， vibration， or abnormal noise.
Suggested handling measures
Before disassembly：
Soak the connection points in rust remover (such as WD-40) for 10–15 minutes.
Confirm if it is necessary to enter the vehicle's "maintenance mode" (e.g.， for Volkswagen models) to avoid damaging the windshield or the engine hood.
During installation：
Strictly follow PDM requirements， ensuring that the wiper arm is vertically pressed flat against the motor shaft before tightening the screws.
Use a torque wrench to avoid excessive tightening.
Fault investigation：
If there is abnormal noise， clean the windshield first， then check if the rubber strip is hardened or if the installation angle is correct.
If the wiper wiping area is offset， use a special tool to calibrate the wiper arm angle (especially for high-precision models such as buses).
Replacement suggestions：
（OEM）的 wiper arm， which has undergone wind tunnel testing and high/low temperature verification， ensuring dynamic adhesion and lifespan.
Non-standard products are prone to vibration， abnormal noise， and even scratching of the coated glass due to large interface tolerances and non-matching pressure curves.
