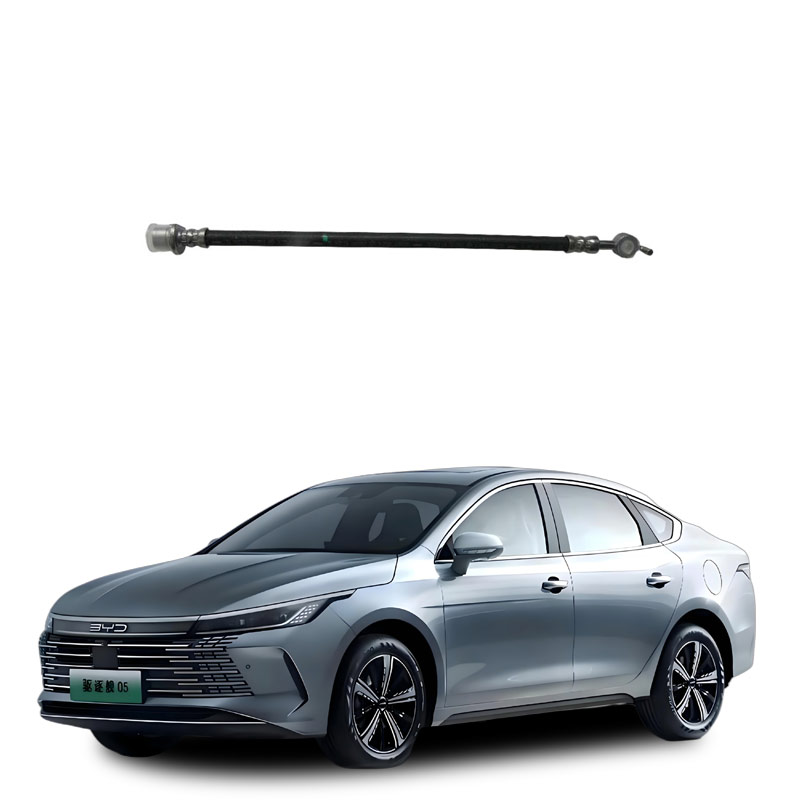

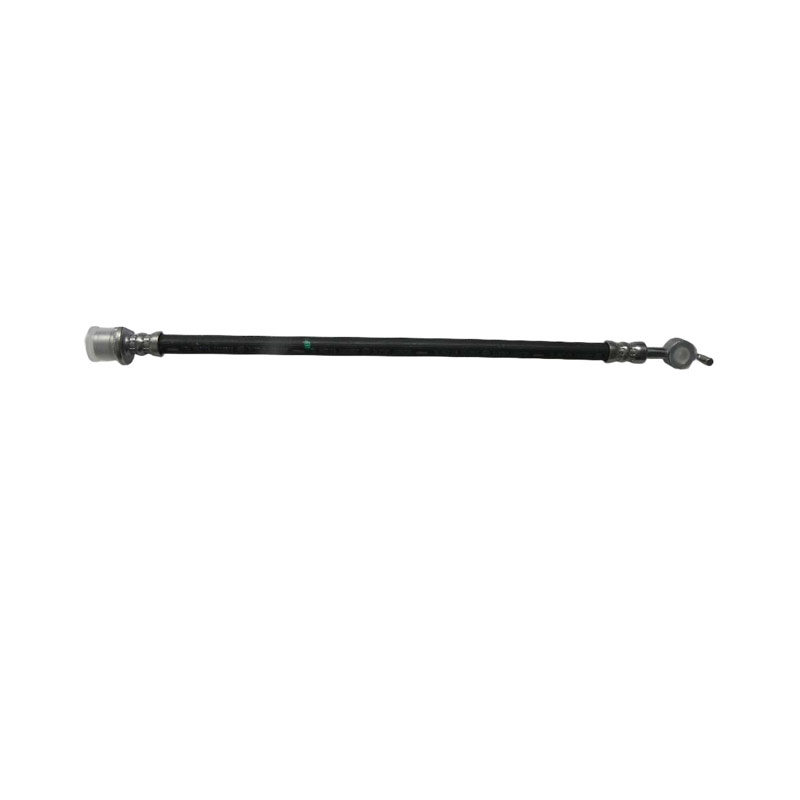

What is the left rear brake hose assembly of the car?
The left rear brake hose assembly is a flexible connecting component specifically used for the left rear wheel in the vehicle's braking system. It is responsible for stably transferring the braking medium (such as brake fluid or compressed air) from the fixed pipeline (such as the brake master cylinder or rigid hose) to the brake actuator (such as the brake caliper or brake booster) of the left rear wheel during braking. Core function
Transmitting braking force: Precisely transfer the hydraulic or pneumatic pressure generated by pressing the brake pedal to the left rear wheel braking device.
Adapting to dynamic movements: Due to the wheel's bouncing and turning during driving, the hose needs to be flexible to withstand repeated bending and stretching, avoiding the rupture of a rigid pipeline.
Ensuring driving safety: Once it fails (such as aging, cracking, or expansion), it will result in a decrease in braking force, a softening of the brakes, or even failure.
Structural features (taking a common rubber hose as an example)
Multi-layer composite structure:
Inner layer: Oil-resistant rubber, in direct contact with the brake fluid, to prevent swelling or corrosion.
Intermediate reinforcing layer: Polyester fibers or fine steel wire weaving, providing tensile strength and burst resistance.
Outer layer: Ozone-resistant, wear-resistant rubber, protecting the interior from sand, mud, water, and temperature changes.
Joint part: Usually a metal threaded joint to ensure a sealed connection with the hard pipe and the brake booster.
Material type comparison
Rubber hose:
Advantages: Good flexibility, easy installation, strong impact resistance.
Disadvantages: Easily aged and cracked over time. It is recommended to inspect and replace every 3-6 kilometers or every 4-5 years.
Nylon hose:
Advantages: Anti-aging, corrosion-resistant, long lifespan.
Disadvantages: Its tensile strength decreases at low temperatures and is prone to damage from external force impact.
Common problems and maintenance suggestions
Typical failure manifestations:
The brake pedal becomes "soft" and the travel lengthens.
Braking response is sluggish, especially in slippery or emergency situations.
Visible bulges, cracks, oil leakage or exposed fabric on the outer layer of the hose.
Maintenance suggestions:
Regularly visually inspect the surface condition of the hose.
When replacing, be sure to use the original factory specification or the hose suitable for the vehicle model to avoid non-standard parts affecting the braking performance.
After replacement, the brake system must be purged to remove air to restore braking efficiency.
Note: Some modification schemes can use stainless steel braided brake hose (commonly known as "brake steel throat"), which can significantly reduce expansion, improve the braking feel and response speed, and is suitable for scenarios with higher requirements for braking performance.
Damage to the left rear brake hose assembly of the car is a high-priority safety issue that requires immediate handling. Here are the key information and response suggestions:
Common failure manifestations
Brake pedal travel lengthens, foot feeling becomes soft
Braking distance significantly increases
Brake fluid level drops rapidly (due to hose rupture causing leakage)
Visible cracks, bulges, scratches or oil leakage traces on the hose surface
Handling suggestions
Immediately stop the vehicle, do not continue driving to prevent brake failure and accidents.
Do not attempt to repair, as the brake hose is a safety component. Once damaged, it must be replaced as a whole, not repaired for use.
When replacing, pay attention to the following points:
Choose original factory or reliable brand parts (such as Kestite, etc.), ensuring the specifications are fully matched with the vehicle model.
It is recommended to replace the entire set (four hoses), even if only one is damaged, the others may have aged.
After replacement, the brake system must be purged to remove air to restore braking force.
Recommended replacement cycle:
Replace the entire set every 3 years or 60,000 kilometers. Even without obvious faults, preventive replacement should be carried out.
Operation reference (if handling by oneself)
Provides the practical steps for replacing the left rear brake hose:
Remove the corresponding wheel;
Remove the old hose (note the anti-slip teeth of the joint);
Install the new hose and lay it along the original path;
Connect the booster end, tighten moderately (avoid breaking), and add new brake fluid and purge;
Reinstall the tire and test the braking effect.
If there are no professional tools or experience, strongly recommend handling at a regular repair shop or 4S store to ensure the safety and reliability of the braking system.
Daily prevention
Regularly check if the chassis brake hose has cracks, bulges, oil leakage or wear;
Avoid driving for long periods on poor road conditions to reduce the risk of external damage.
Safety is no trivial matter. The braking system must be treated with great care.
