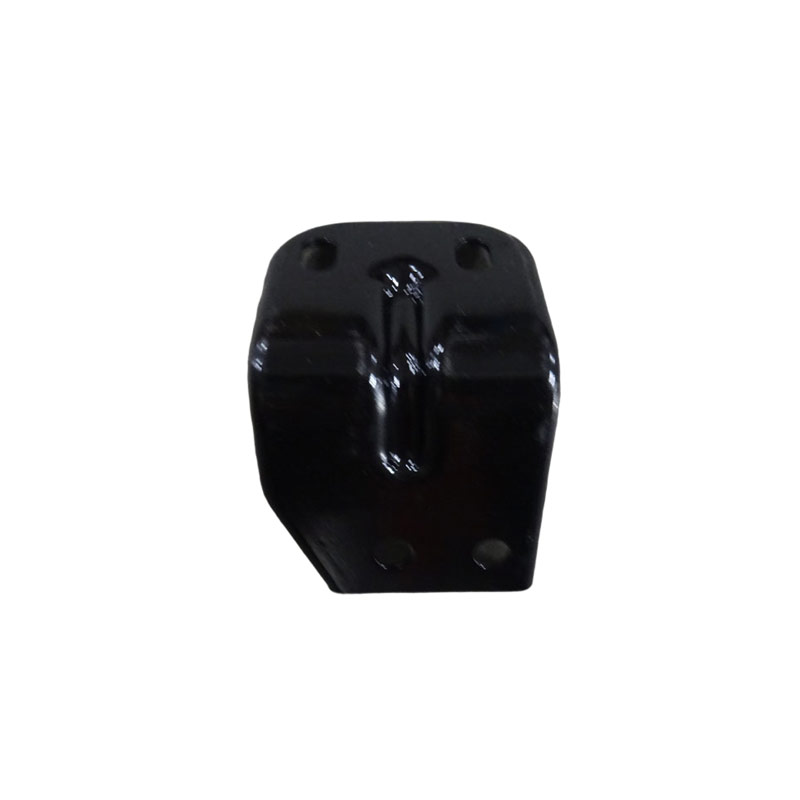

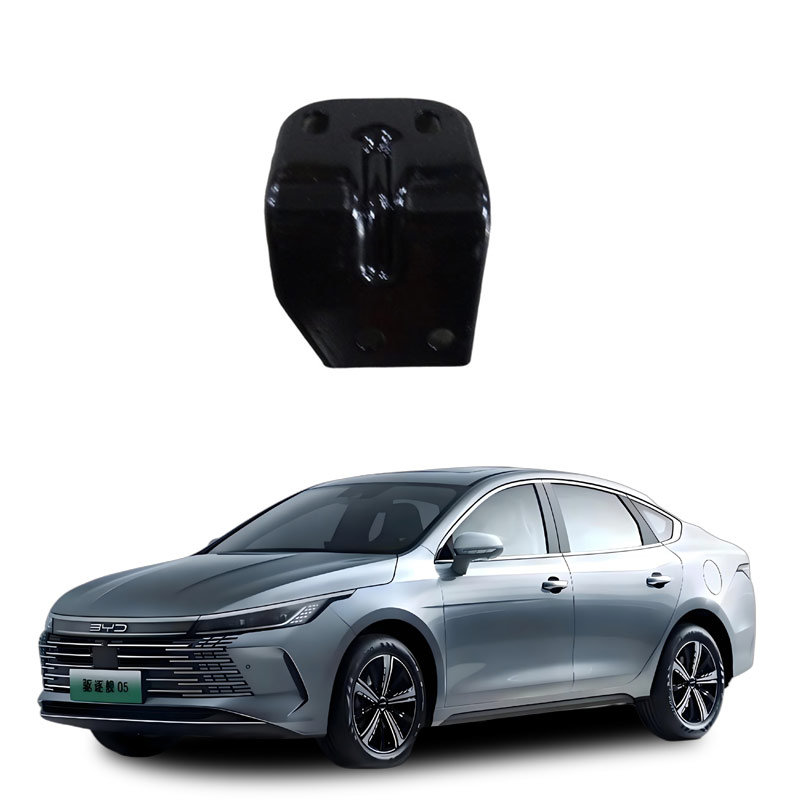

What is the car cooling pipe support assembly?
The automotive cooling pipe support assembly is a structural component in the automotive engine cooling system, mainly used to fix, support, and protect the cooling pipes to enhance their installation stability, vibration resistance, and service life.
According to the latest publicly available information, this component typically consists of the following key parts:
Support platform: As the basic installation structure, it integrates components such as water pumps and power supply sources;
Electromagnet and metal insert plate: Used for quick installation or fixation of the main body of the cooling pipe;
Main body of the cooling pipe: The core channel for coolant circulation;
Multi-layer protective structure: Including insulation plates, buffer layers, PVC flame-retardant plates, anti-corrosion coatings, protective top plates, and waterproof membranes, which jointly enhance durability and safety.
The design goals of this component include:
Improving installation convenience;
Enhancing resistance to vibration, high temperature, and corrosion;
Extending the service life of the cooling pipe.
A typical patent (CN222810874U) was disclosed by Wuhan Saierjin Sealing Materials Co., Ltd. in May 2025, detailing the above structure.
In addition, in the field of new energy vehicles, similar support structures are also used in the battery pack cooling system, such as the "support cooling component" integrating the liquid cooling plate and the bottom guard plate, which combines structural support and thermal management functions.
The main function of the automotive cooling pipe support assembly is to fix, support, and protect the cooling pipes to ensure the stable and efficient operation of the cooling system. Based on the latest publicly available information, its core functions can be summarized as follows:
Provide physical support: Prevent the cooling pipe from shifting or loosening due to vibration and bumps during vehicle movement, maintaining the pipe in the correct position.
Damping and noise reduction: Absorb vibrations through the buffer structure, reducing operating noise and improving driving comfort.
Prevent pipe deformation or damage: Especially in areas prone to stress, such as curved pipes, the support component can prevent collapse, wrinkling, or excessive thinning, ensuring smooth coolant flow.
Enhance connection reliability: Combined with fasteners such as clamps and pipe holders, prevent coolant leakage due to loosening.
Extend service life: Through anti-corrosion, insulation, and protection structures (such as PVC flame-retardant layers, anti-corrosion coatings), enhance the durability of the component.
Facilitate maintenance and installation: Some support components are designed as adjustable, facilitating adaptation to different vehicle models and simplifying maintenance operations.
These functions collectively ensure the thermal management efficiency of the engine and battery (in new energy vehicles) and prevent overheating risks caused by cooling system failure.
Regarding "failure of the automotive cooling pipe support assembly", the current publicly available information does not directly mention the specific definition or typical manifestations of the "support component" failure. However, based on the overall structure of the cooling system and related failure information, it can be reasonably inferred:
The cooling pipe support assembly usually refers to the brackets, clamps, or guard plates used to fix and support coolant hoses (such as upper/lower pipes, bypass pipes, etc.).
Its failure may manifest as: Support component fracture, clamp loosening, hose displacement or shaking, which can lead to hose wear, leakage, or loosening of the connection.
Common related failure phenomena and handling suggestions
Loose or displaced hose: May cause coolant leakage or interference with the engine/fan, check if the clamp is tightened, and replace the hose and support component if necessary.
Support component fracture: Commonly occurs in aging plastic brackets or corroded metal brackets, should replace the same model support component and re-fix the hose.
With coolant leakage accompanied by failure: If the support fails and causes the hose to rupture or the interface to loosen, follow the cooling system leakage process for handling (see below).
Common fault troubleshooting points (including indirect correlations)
According to authoritative sources, cooling system failures are often related to the following components. If the support component fails and causes a chain reaction problem, refer to the following troubleshooting directions: Check coolant level and for leaks: Observe if there is any green/pink liquid on the ground, and check if the water pipes, joints, and radiator are leaking.
Check the condition of hoses and clamps: Check for any aging, hardening, cracks or loosening.
Check if the thermostat, water pump, and fan are functioning properly: Faults in these core components often accompany abnormal temperatures.
Regular maintenance suggestions:
Check coolant level and pipe condition monthly;
Clean cooling system scale every 2 years;
Replace aged water pipes and seals.
If the cooling fluid leaks or the engine overheats due to damaged support components, it is recommended to stop the vehicle immediately for inspection to avoid further damage to the engine. If you cannot repair it yourself, contact a professional repair facility.
If further diagnosis is needed, provide the specific vehicle model or fault phenomenon (such as whether there is leakage, abnormal water temperature, etc.).
