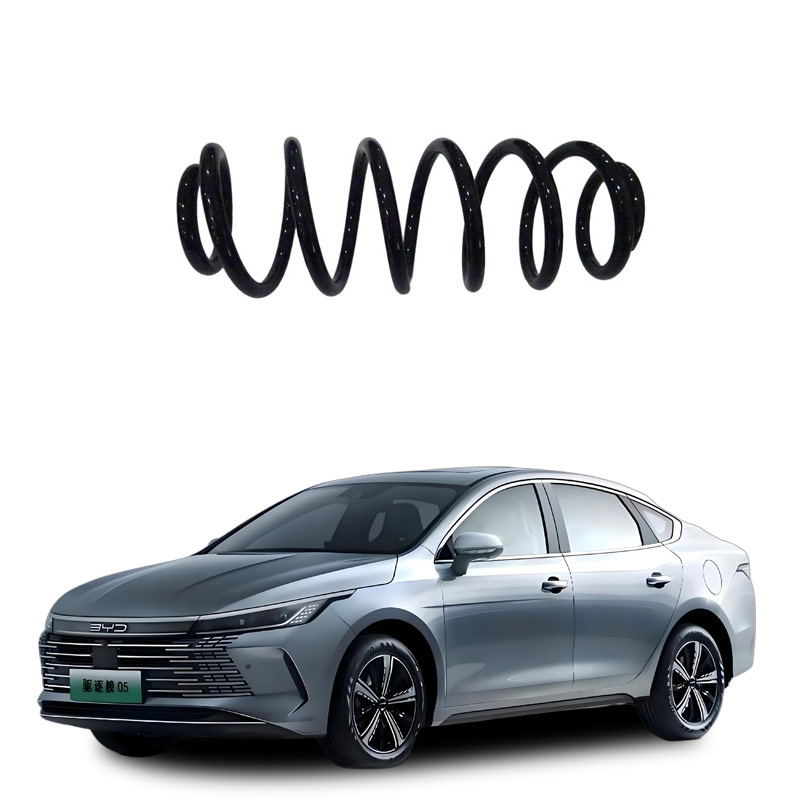

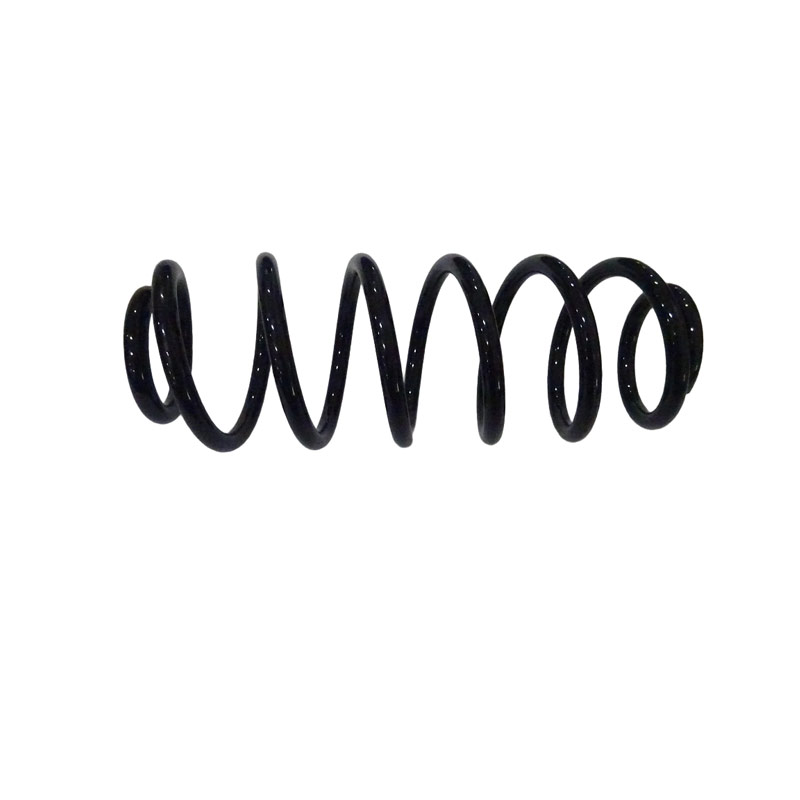

The function of the automotive coil spring
The automotive torsion spring is the core elastic component in the suspension system. Its main functions can be summarized as follows:
Supporting the vehicle's weight: It bears the sprung mass of the vehicle, maintaining the normal vehicle height and posture.
Absorbing road shocks: When the wheels encounter bumps, the spring compresses or stretches, converting kinetic energy into elastic potential energy, and mitigating the impact on the vehicle.
Improving ride comfort: Through reasonable design of stiffness and deformation range, it reduces the vibration transmitted to the frame, enhancing the driving and passenger comfort.
Maintaining tire adhesion: On uneven roads, it helps the wheels continuously contact the ground, enhancing grip and driving stability.
In addition, the torsion spring is usually used in conjunction with shock absorbers and steering mechanisms, as it does not have the ability to dissipate energy on its own. It cannot quickly suppress vibrations solely relying on the spring.
Classification and Characteristics
Based on the force characteristics, it can be classified as:
Compression spring (most common in passenger car suspensions)
Tension spring
Torsion spring
Based on the structural shape, it includes:
Cylindrical torsion spring (widely used)
Conical torsion spring (with good buffering performance)
Variable diameter/variable pitch spring (achieving non-linear stiffness)
Its advantages include: compact structure, simple manufacturing, high energy utilization rate, no need for lubrication, and a larger longitudinal space occupation but can be optimized through design.
Note: Modern high-end vehicles (such as NIO ES9) have gradually adopted more advanced systems like full active suspension, but the torsion spring remains the basic configuration for the majority of passenger car suspensions.
The automotive torsion spring is a key component in the suspension system, with the main functions being to buffer road shocks, maintain vehicle stability, and support the vehicle's weight. Although its design lifespan is usually long (such as being able to function normally after 300,000 compressions), it can still fail under long-term use, overloading, corrosion, or external impact.
Common Fault Symptoms
Abnormal vehicle posture: Significant sinking or tilting on one side or both sides, with a height difference of more than 5mm .
Driving abnormal noise: Emitting "clunk", "creaking", "bang bang" or other metal impact or friction sounds during bumps, deceleration bumps, or turns .
Reduced shock absorption effect: The vehicle's ability to absorb road bumps decreases, significantly reducing ride comfort, and even causing "up and down shaking" .
Reduced handling performance:
During turns, the side roll intensifies, and in severe cases, there is a risk of skidding ;
During emergency lane changes or high-speed turns, the vehicle "pushes forward" or "swings", with inaccurate steering ;
The brake "nudges" is obvious (damage to the front axle spring), and the braking distance is prolonged .
Abnormal tire wear: Due to incorrect caster angle or toe-in of the wheels, single-sided feather-like wear occurs, reducing tire lifespan by 40%–60% .
Early damage to shock absorbers: After the spring fails, the load on the shock absorber increases, leading to oil leakage or damping failure .
Extreme situation: Spring fracture will cause the suspension system to completely lose stability, presenting serious safety hazards .
Handling suggestions
Stop immediately and inspect: Once the above symptoms occur, especially if the vehicle tilts, abnormal noise, or abnormal handling occurs, it is necessary to go to a professional repair facility for inspection .
Replace in pairs : Both sides must be replaced simultaneously to avoid inconsistent stiffness of new and old springs affecting vehicle balance .
Perform four-wheel alignment after replacement : Ensure that the wheel alignment parameters return to the original factory standard to prevent abnormal tire wear and handling problems .
Preventive measures :
Avoid long-term overloading;
Regularly check if the spring is deformed, cracked, or corroded;
It is recommended to inspect the suspension system every 20,000 kilometers .
Note: In normal use, the torsion spring of a household car usually "never needs replacement" but if the vehicle has traveled over 80,000 kilometers or has been used for more than 5 years, the fatigue failure probability significantly increases, and it is necessary to pay special attention .
If you want to know more, keep reading the other articles on this site!
