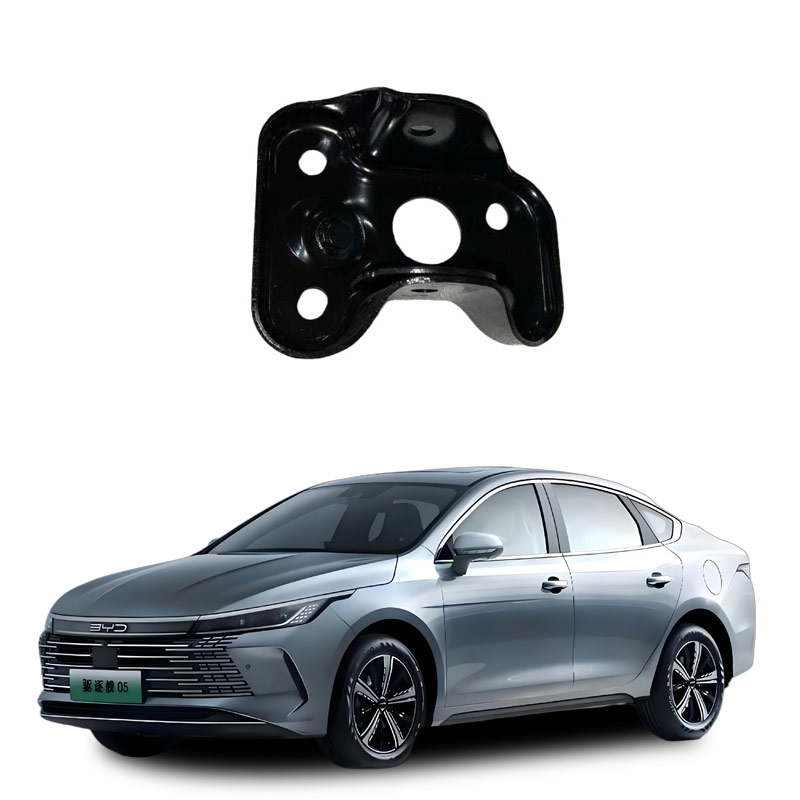

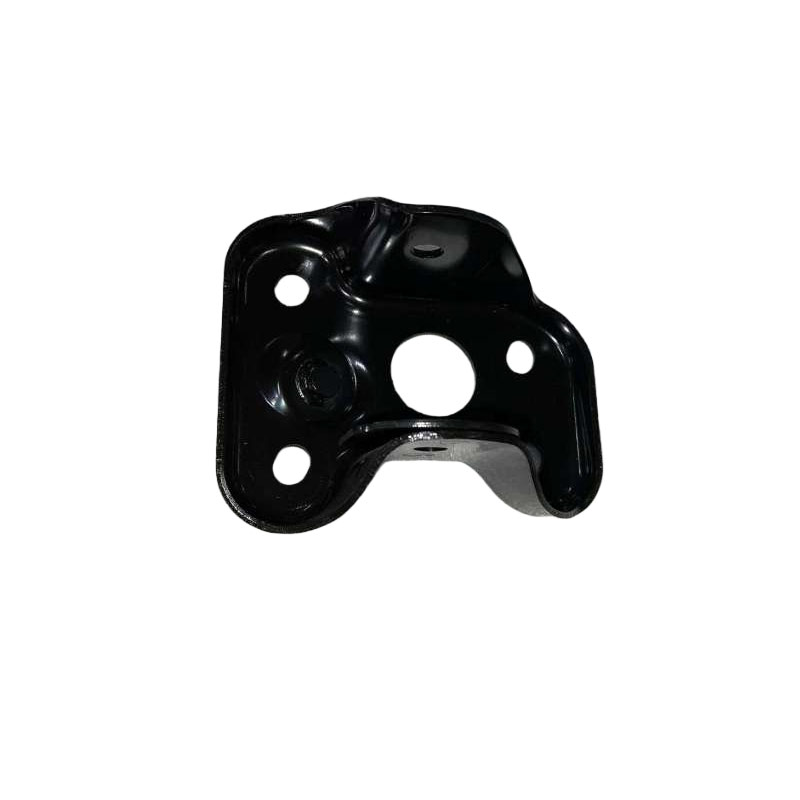

What is the right rear torsion beam mounting bracket assembly for the car?
The right rear torsion beam mounting bracket assembly is a crucial component that connects the torsion beam rear suspension to the vehicle structure. It is mainly used to fix the end of the torsion beam's longitudinal arm to the vehicle body, ensuring that the suspension system can stably and reliably transfer loads and control the movement of the wheels. Core function
Connection Function: Rigidly connect the end of the torsion beam to the body longitudinal beam or the sub-frame.
Load-bearing and Force Transmission: Bear the vertical force, lateral force and longitudinal force from the wheels and transfer them to the vehicle body.
Enhancement of Reliability: Through optimizing the structure (such as preset angles, flanging, etc.), prevent the side panel from deforming during the tightening of the bolts, and enhance the connection strength.
Structural Features (Based on the Latest Patent Design)
According to the utility model patent published in 2026, this component usually includes:
Two connection side plates: outward， with a preset angle of 3°， to avoid local deformation during the tightening of the bolts.
Connection base plate： Connects the two side plates to form an installation space for the end of the torsion beam.
Bolt holes： For inserting the installation bolts to fix the beam to the bracket.
Flanging structure： Set on the edge of the side plate， extending outward， to improve stiffness and anti-deformation ability.
Common Application Scenarios
Often used in the rear suspension system of front-wheel drive (FF) vehicles.
Widely applied in small vehicles， economy cars and some commercial vehicles， due to its simple structure， low cost and small space occupation.
Note on Terminology
"Torsion beam"： Refers to the lateral beam in the rear suspension， used to connect the left and right wheels.
"Torsion bracket" (such as engine torsion bracket)： Usually refers to the bracket that fixes the engine or transmission， unrelated to the torsion beam. Therefore, "the rear right torsion beam mounting bracket assembly" specifically refers to the metal structural component in the rear suspension system of the chassis that connects the torsion beam to the vehicle body, rather than the torsion bracket related to the engine.
The function of the right rear torsion beam mounting bracket assembly is mainly related to the structure and function of the torsion beam rear suspension system. According to public information, its core functions can be summarized as follows:
Structural support and connection: This bracket is used to firmly fix the torsion beam (i.e., the rear crossbeam) to the vehicle body, ensuring that the left and right rear wheels form an overall connection through the torsion beam, maintaining the geometric stability of the rear suspension.
Load transmission and dispersion: During vehicle operation, this bracket bears and transmits the vertical force, lateral force, and longitudinal force (such as acceleration, braking) from the wheels, while distributing these loads to avoid local stress concentration.
Limiting torsion beam displacement: Although the torsion beam is a "semi-independent" suspension, there is a certain degree of coupling between the left and right wheels. The bracket limits the abnormal displacement of the torsion beam in abnormal working conditions, ensuring the stability of wheel alignment parameters (such as camber, toe-in).
Improving driving stability and safety: If the bracket is damaged, it may cause the torsion beam to loosen, the rear wheel alignment to be out of position, resulting in vehicle veering, abnormal noise, control instability, and even safety hazards.
Note: The "torsion bracket" mentioned in some materials usually refers to the engine torsion bracket (used to fix the engine), while "torsion beam mounting bracket" specifically refers to the component in the rear suspension system that fixes the torsion beam. Their functions and installation positions are completely different and should not be confused.
The right rear torsion beam mounting bracket assembly of the car is usually a problem of the rear suspension system, especially in vehicles with a torsion beam non-independent rear suspension. According to public information, the following key information is summarized:
The function of the torsion beam mounting bracket
The torsion beam is the core component of the rear suspension, connecting the left and right rear wheels, and balancing the vibration through flexible deformation.
The mounting bracket is used to fix the torsion beam assembly to the vehicle body or subframe, providing support, buffering, and positioning functions.
Damage to the bracket will cause the suspension to become unstable, resulting in abnormal noise, control abnormalities, and even safety hazards.
Common fault phenomena
Chassis abnormal noise: A "clunking" or "jolt" sound is emitted when passing over a dip or bumpy road surface.
Increased vehicle body vibration: The stability of the vehicle at high speed decreases, and the rear wheels have a bouncing sensation.
Abnormal tire wear: Due to the misalignment of the rear wheel alignment parameters (such as camber, toe-in).
Suspension components loosening or shifting: In severe cases, broken brackets or脱落 of rubber bushings can be observed.
Maintenance suggestions
Immediately stop driving or drive cautiously
If the bracket is broken， it may cause the torsion beam to shift， affecting the rear wheel alignment， and there is a risk of losing control， so it is not recommended to continue driving at high speed.
Confirm the specific vehicle model and parts
The torsion beam brackets of different vehicle models (such as Passat， Bora， etc.) have different structures， and it is necessary to check the vehicle model to obtain matching parts. Original parts are more reliable.
Maintenance method
Minor damage (such as aging of the rubber bushing)： The bushing can be replaced separately.
Bracket fracture or deformation： It must be replaced as a whole， and welding repair is not allowed (the strength cannot be guaranteed).
After replacement， four-wheel alignment must be performed； otherwise， it will accelerate tire wear.
Operation difficulty
The vehicle needs to be lifted， and the tires， brake lines， and stabilizer bars need to be removed.
This involves chassis work， and it is recommended to be handled by a professional repair shop or 4S store； non-professional personnel should not operate it.
