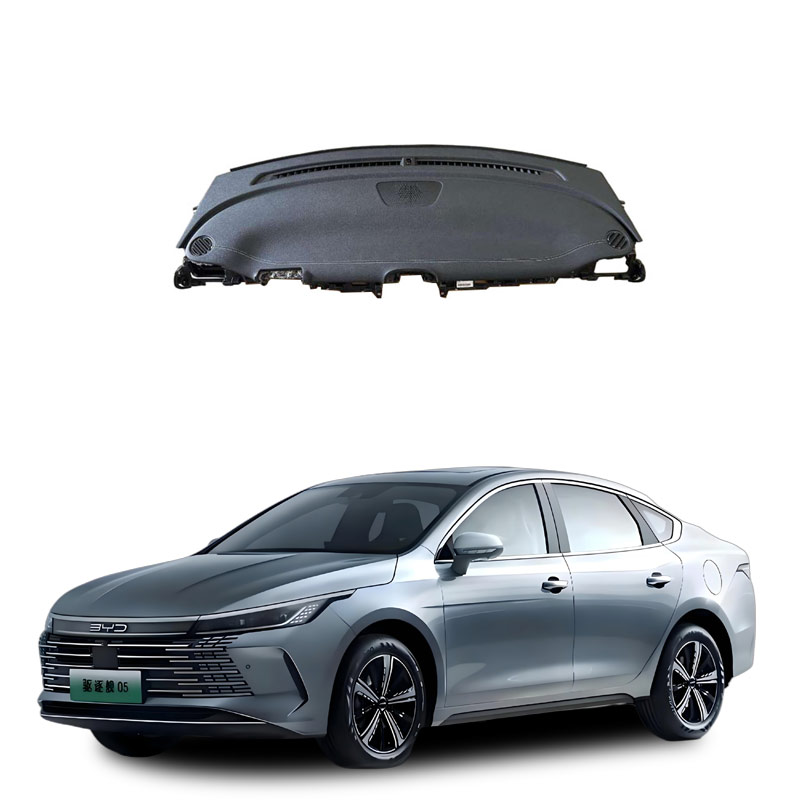

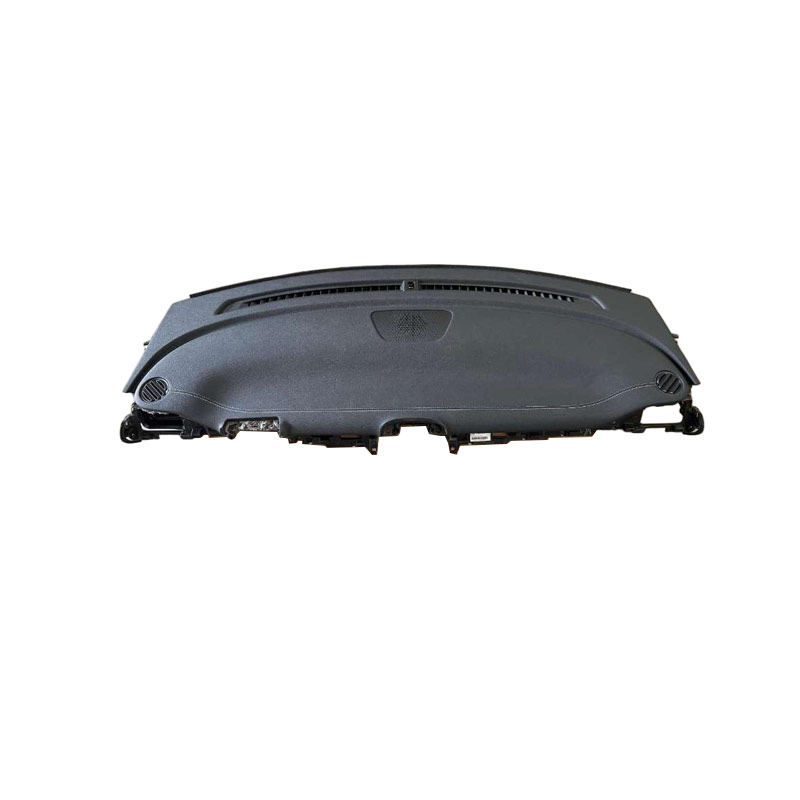

What are the upper components of the car dashboard?
The upper components of the car dashboard usually refer to the upper half area of the dashboard assembly located directly in front of the driver, close to the windshield. They mainly perform functions such as information display, safety protection, and human-machine interaction. According to authoritative public information, the core components include:
Main Instrument Panel (Upper Instrument Panel): Integrates core indicating instruments such as speedometer, tachometer, fuel gauge, and water temperature gauge, as well as various warning and indicator lights (such as engine fault light, seat belt not fastened reminder, etc.).
Safety Airbag (SRS Airbag): Most passenger cars have front-seat occupant side airbags integrated in the upper part of the dashboard. They deploy rapidly to protect the driver's head and chest in case of a collision, with the surface often marked with "AIRBAG".
Multifunctional Switch Buttons (commonly known as "little black sticks" or "small cylinders"): Used to switch the display information of the dashboard (such as average fuel consumption, instantaneous fuel consumption, range, total mileage, etc.), and some models also support resetting maintenance reminders or fault lights.
Full-LCD Dashboard Cover (applicable to high-end models): In vehicles equipped with full LCD displays, the upper part may be covered by a transparent or semi-transparent protective cover to protect the high-resolution display and enhance the sense of technology.
Instrument Panel Cross Beam (Instrument Panel Cross Beam): As a structural support component, it is located at the rear of the upper part of the dashboard and bears the load and enhances collision safety.
Note: According to safety regulations, items such as mobile phone holders and decorative items are strictly prohibited from being placed on the upper part of the dashboard to avoid becoming flying objects when the airbags deploy, causing serious injuries.
The upper components of the car dashboard mainly perform three core functions: information display, safety protection, and human-machine interaction. Their specific functions are as follows:
Core Functions
Centralized display of driving information: The upper part usually integrates combined instruments (such as speedometer, tachometer, fuel gauge, water temperature gauge, etc.) and various indicator lights/alarm lights, reflecting the key states of the engine, transmission system, braking system, etc. in real time.
Ensuring driving safety: As the driver's visual focus area, the upper part is designed in accordance with ergonomic principles, reducing the frequency of looking down to check; some models also integrate a head-up display (HUD) projection area, projecting navigation, speed, etc. onto the front windshield to enhance driving safety.
Integrated control and decorative functions: The upper part often has air outlet, storage compartments, audio control buttons, etc., and serves as the focus of interior design, reflecting the overall style of the vehicle.
Typical Component Composition
Combined Instrument Assembly: Includes mechanical or electronic displays to show basic driving data.
Warning Indicator Light Group: Such as safety airbag (SRS), ABS, oil pressure, coolant temperature, etc. alarm lights.
HUD Projection Area (if present): Transparent reflective film or dedicated optical components for projecting information.
Decorative Panels and Covers: Enhance aesthetics while protecting internal wiring and sensors.
Note: Some materials refer to the upper part of the dashboard as the dashboard area, while strictly speaking, the instrument panel assembly (Instrument Panel, IP) includes the upper part (dashboard area), middle part (storage/air outlet), and lower part (control console). The focus of this answer is on the core functions of the upper dashboard display area.
The upper components of the car dashboard usually refer to the area above the dashboard, including warning lights, indicator lights, information displays, backlighting, etc. According to the latest public information, the common causes of faults in this area and the corresponding solutions are as follows:
Common Fault Causes
Fuse Blown: Causes the upper part of the dashboard components to lose power, resulting in inability to display or backlight failure. Line plug loose or poor contact: This affects signal transmission and causes some indicator lights to malfunction or flicker abnormally.
Sensor failure: If the data from sensors such as speed, water temperature, or oil pressure is abnormal, corresponding warning lights will be triggered.
Internal components of the dashboard aging or damaged: Such as burned-out LED bulbs, fallen solder joints on the circuit board, or failed chips.
Software or ECU failure: Errors in the vehicle computer program may cause display confusion or false alarms.
Power supply abnormality: Insufficient battery voltage, generator failure, or poor grounding, which affect the stable operation of the instrument.
External environmental interference: Direct exposure to strong light, extreme temperatures, or electromagnetic interference may temporarily affect the display effect.
Initial troubleshooting suggestions:
Check fuses: Check if the relevant fuses in the dashboard have blown. If necessary, replace them with the same specification new ones.
Observe the type of warning lights:
Red light (such as oil pressure, braking, airbag): Immediately stop the vehicle for inspection.
Yellow/orange light (such as engine failure, ABS): It is recommended to repair as soon as possible.
Restart the vehicle: Some software false alarms can be restored by power-off restart (turn off the ignition switch and restart after 30 seconds).
Use a diagnostic tool to read fault codes: Read the specific fault codes recorded by the ECU through the OBD interface to accurately locate the problem.
If self-checking cannot solve the problem, or if there are situations such as multiple lights simultaneously lighting up, the instrument screen going black, or loss of key information, it is recommended to go to a professional repair facility for maintenance as soon as possible to avoid safety hazards.
