The main components of the automotive auxiliary dashboard function

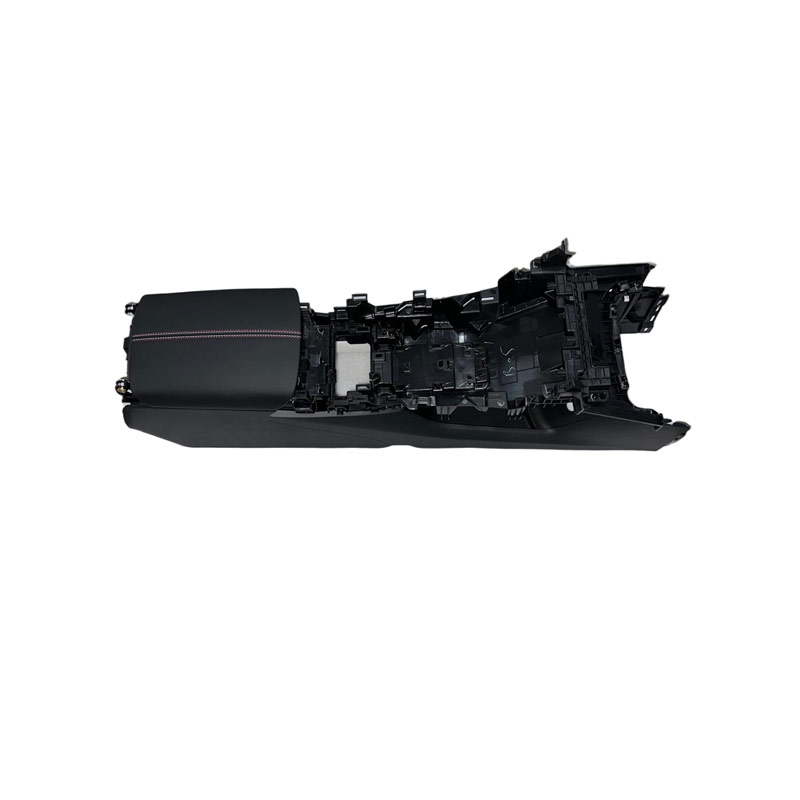

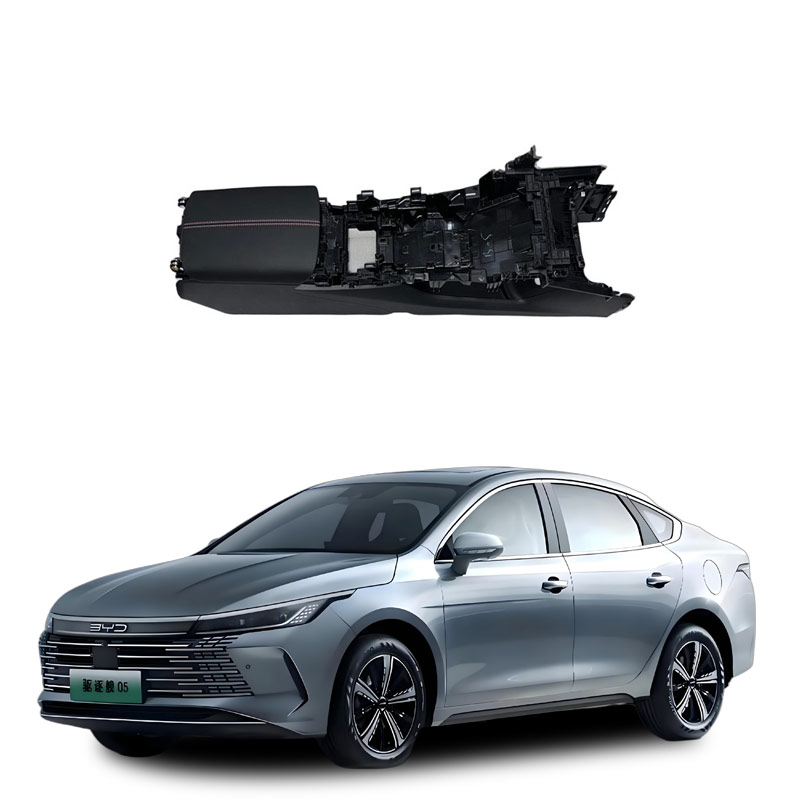

The automotive auxiliary dashboard (often referred to as the secondary dashboard) is an important component of the entire dashboard assembly. Its main components play a crucial role in terms of functionality, safety, and human-machine interaction.
The core functions of the main components
Carrying control and operation functions: The main structure of the secondary dashboard is used to integrate air conditioning control panels, electronic shift mechanisms, cup holders, armrest boxes, storage compartments, wireless charging modules, etc., enabling drivers to complete common operations without shifting their gaze .
Supporting the human-machine interaction interface: As the basic framework of the central control area, it supports touch screens, physical buttons, knobs, etc., improving the convenience and safety of operation .
Enhancing safety: In collision scenarios, the main body of the secondary dashboard needs to have certain energy absorption properties to reduce the impact on passengers (especially the knees); some models also integrate knee airbags (KAB) .
Optimizing space layout and comfort: Through the reasonable arrangement of storage spaces, air vents, decorative elements, etc., it improves the interior atmosphere and enhances the comfort of passengers .
Integrating wiring and sensors: As the passage for cable routing and the installation platform for sensors, it ensures the stable operation of the electrical system . Additional Explanation
The auxiliary dashboard is usually located between the front seats and works in coordination with the main dashboard (directly facing the driver), forming a three-in-one system of "functional integration carrier + safety protection structure + human-machine interaction interface".
Its design needs to meet multiple requirements such as rigidity, lightweight, energy absorption, and ergonomic design.
When the main component of the automotive auxiliary dashboard fails, it usually refers to the combination instrument (i.e., the dashboard) or its related auxiliary systems malfunctioning. According to the latest publicly available information, such failures may be caused by various reasons and require specific symptoms to be investigated.
Common causes and corresponding solutions
Power supply and insurance issues
Fuse melting, insufficient battery voltage, short circuits or poor contact in power supply lines, can cause the dashboard to lose power or display abnormalities.
Suggestion: First, check if the relevant insurance fuses for the instrument are intact and measure the battery voltage to ensure it is normal (standard range is 12.4V–12.7V).
Sensor signal abnormalities
Faults in speed sensors, oil pressure sensors, water temperature sensors, etc., will send incorrect or missing signals to the instrument, causing pointers not to respond or warning lights to illuminate.
For example: A Suzuki Tianyu speed sensor failure will trigger the speedometer fault light.
Line or connector faults
Old wiring, damaged connectors, loose or corroded plugs, can cause signal transmission interruption.
Note: Some models may be affected by the excessive gap of the right rear door, interference from additional components, or lock body faults, which may indirectly affect the dashboard wiring.
Internal hardware damage of the instrument
PCB failure, damage to LED/LCD displays, failure of voltage regulators, etc., require replacement of the combination instrument assembly.
Software or communication faults
Modern vehicles rely on CAN bus (such as HS2CAN) for communication. If the network is interrupted or the control unit software is incorrect, it may cause the instrument to go black or display garbled characters.
Solution: Read the fault codes through the OBD interface. If necessary, upgrade the ECU software.
Diagnostics system linkage failure
If it prompts "Front auxiliary unavailable" or "Driving assistance system failure", it is often due to the obstruction of millimeter-wave radar (by mud, snow, or water film), loose brackets, or installation deviation.
Handling suggestions: Clean the radar surface (usually located in the front grille), restart the vehicle; if ineffective, need to have the radar calibrated or replaced at a 4S store.
Initial troubleshooting steps
Observe the fault phenomenon: Is it partial instrument failure (such as only the speedometer) or complete black screen? Are there specific warning lights illuminated?
Check the fuses and battery: Ensure basic power supply is normal.
Check if there has been recent collision or additional installations: May affect wiring or sensors.
Clean the front radar area: Especially after rain or snow.
Use a diagnostic instrument to read the fault codes: This is the key to accurately locating the problem. It is recommended to operate at a professional repair point (such as a 4S store).
If the instrument is completely inoperative or key information (such as speed or engine speed) cannot be displayed, do not continue driving. Immediately pull over and contact rescue services.
If further judgment is needed, provide the specific model, fault codes (if any), and detailed symptoms (such as whether accompanied by abnormal sounds, other system abnormalities, etc.).
