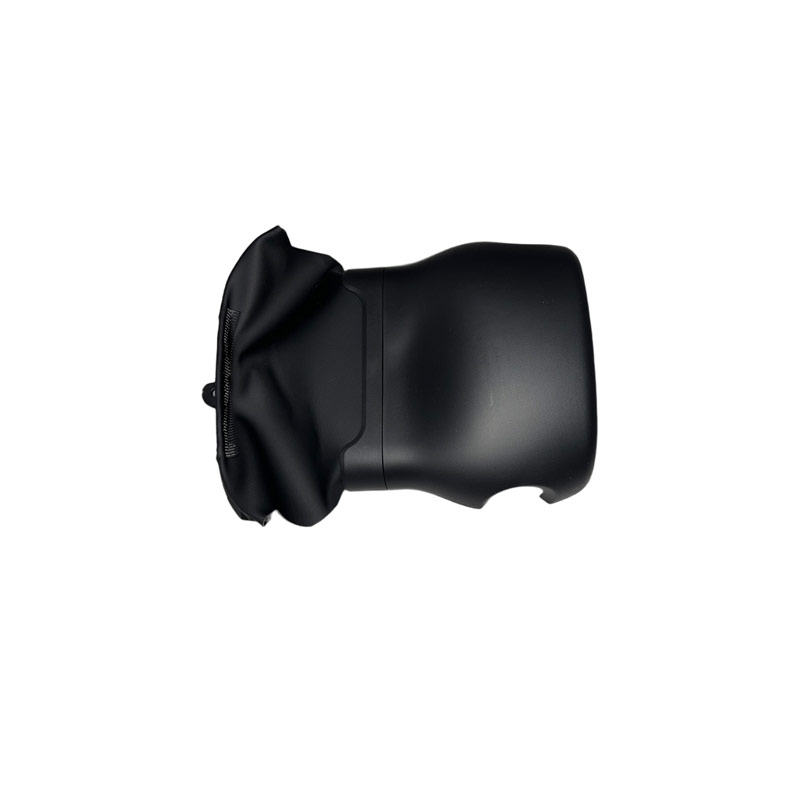

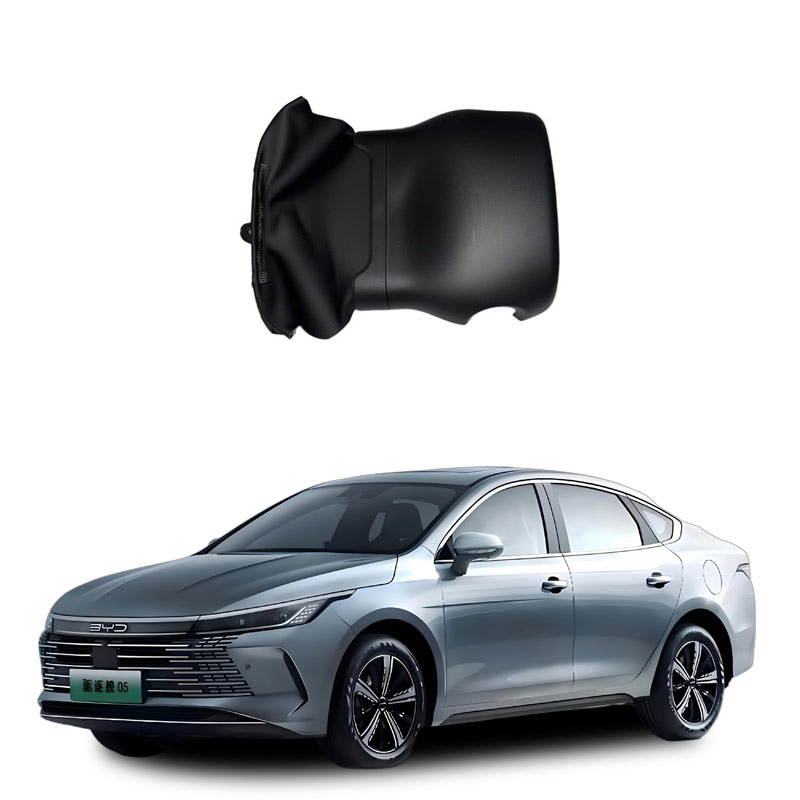

What is the protective cover assembly on the car combination switch?
The protective cover assembly on the automotive combination switch is a protective structure installed outside the vehicle combination switch, mainly used for:
- Protective function: Preventing dust, dirt, liquids, etc. from entering the internal part of the combination switch and affecting its normal operation;
- Structural support and fixation: Assisting in fixing the combination switch assembly in the position on the steering column;
- Safety and aesthetics: Providing certain buffering in case of collision or during daily use, and enhancing the overall integrity of the cockpit interior.
According to public information, this cover is usually made of plastic and installed under the steering wheel and in the steering column area, integrated with the combination switch assembly. Sometimes, it is also called "combination switch guard" or "combination switch cover assembly".
Key features
- Position: Located under the steering wheel and on the steering column, covering the combination switch body;
- Function:
Protect internal electrical contacts;
Prevent accidental operation;
Provide installation interfaces;
- Material: Mostly engineering plastics, balancing strength and lightweight;
- Related patents: Jiangling Automobile recently obtained a patent named "A combination switch guard installation structure and vehicle" (CN115891858B), emphasizing its innovation in enhancing protection and driving experience.
Note the distinction
"Combination switch guard" sometimes appears in pairs with "lower guard", together forming a complete guard assembly. In some models, it may also be classified as "steering system guard" or "dashboard lower guard plate", but its core function always revolves around protecting the combination switch.
The main function of the protective cover assembly on the automotive combination switch is to protect the combination switch from being invaded by dust, dirt, liquids, etc. from the outside, ensuring the reliability and safety of the switch operation.
According to public information, the specific functions include:
Dust and dirt prevention: Preventing dust, mud, or foreign objects from entering the internal part of the combination switch, avoiding contact failure or functional malfunction .
- Improving operational safety: Reducing the risk of accidental operation through physical protection, especially providing a more stable feel and control experience during vehicle operation .
- Extending service life: Reducing the corrosion or wear of internal metal contacts and mechanical structures by environmental factors, improving the durability of the combination switch .
- Assisting installation and fixation: Some patent designs (such as CN115891858B of Jiangling Automobile) optimize the installation structure of the guard, making it more fitting and stable, further enhancing the protective effect .
In addition, this guard is usually made of plastic and installed on the steering column, covering the external part of the combination switch, having both aesthetic and practical functions .
The "guard assembly" on the automotive combination switch usually refers to the protective shell or guard of the combination switch, which generally does not directly participate in electrical control, but if there is a fault (such as cracking, loosening, deformation, etc.), it may indirectly cause dust to enter, moisture to get in, or mechanical jamming of the internal mechanism, thereby causing functional abnormalities.
According to public information, the "combination switch guard assembly" fault itself is rarely listed separately, but the overall fault of the combination switch is more common. The following are typical problems and solutions related to "guard assembly fault":
Common associated fault manifestations
- Intermittent failure or complete failure of functions such as turn signals, high and low beam lights, and windshield wipers: Guard damage may cause moisture or dust to enter, resulting in oxidation or short circuit of internal contacts .
- Heating of the combination switch or emitting a burnt smell: Failure of guard sealing, allowing moisture to invade and causing corrosion of the wiring, increased contact resistance leading to overheating .
- Abnormal operation feel (such as jamming, loosening): Guard fastening bolts loosening or structural deformation causing misalignment of the internal mechanical structure .
Possible reasons
The protective cover may develop cracks or fall off due to aging, external impact or improper installation.
The sealing performance declines, allowing moisture and dust to enter the interior, accelerating oxidation or corrosion of the contacts.
The internal connectors or terminals may shift or have poor contact due to long-term vibration and high humidity environment.
Suggested handling steps:
Initial inspection: Observe if the protective cover has obvious cracks, deformation or loosening; smell for any burnt odor and check if there is abnormal heating.
Function test: Verify one by one if the turn signals, headlights, wipers, horn, etc. are working properly.
Avoid disassembling by yourself: The combination switch involves driving safety. It is not recommended for non-professionals to disassemble it, especially for vehicles with airbags, more caution is needed.
Timely repair: If it is confirmed that the protective cover is damaged or has abnormal functions, it is necessary to go to a professional repair facility or 4S store for testing. In necessary cases, the combination switch assembly should be replaced.
Note: For some models (such as BYD Speedster), the failure of the combination switch may be related to the wear of the CAN wiring harness. If communication abnormalities occur after the protective cover is damaged (such as instrument panel errors), it is necessary to carefully check if the wiring harness is compressed or short-circuited.
