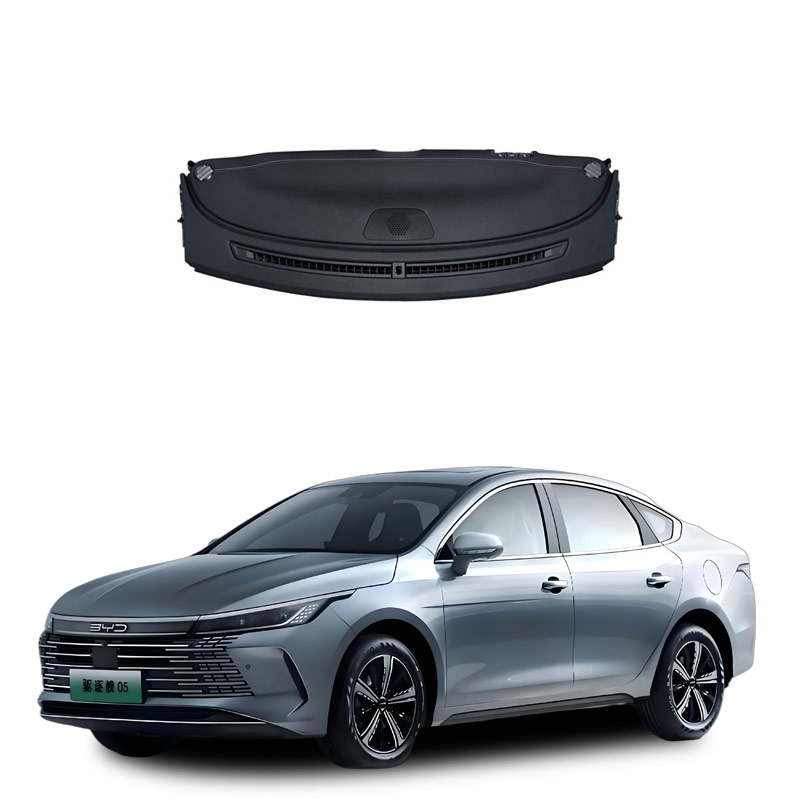

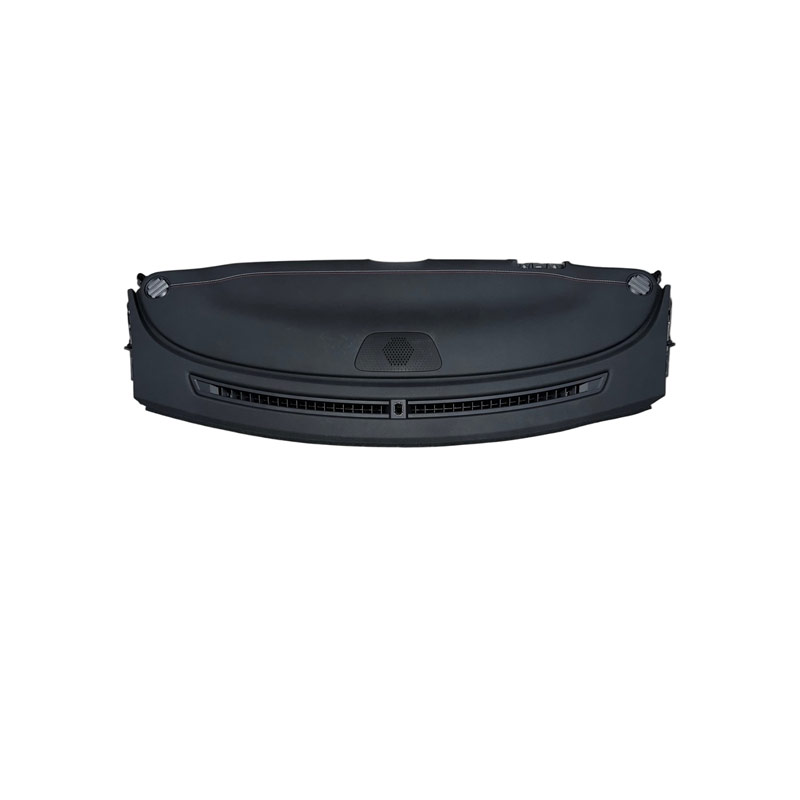

What are the upper components of the car dashboard?
The upper components of the car dashboard typically refer to the upper half area of the dashboard assembly located directly in front of the driver, close to the windshield. They mainly perform functions such as information display, safety protection, and human-machine interaction. According to authoritative public information, the core components include:
Main Instrument Panel (Upper Instrument Panel): Integrating various instruments (such as speedometer, tachometer, fuel gauge, water temperature gauge, etc.) and warning lights, it is the main interface for the driver to obtain the vehicle's operating status.
Front Airbags (Passenger Side): Most passenger cars have front passenger airbags integrated in the upper part of the dashboard (often marked with "AIRBAG"), which deploy rapidly to protect the occupants in case of a collision.
Multifunction Control Buttons or "Small Black Sticks"/"Small Cylinders": Some models have physical buttons or knobs in the upper part of the dashboard for switching information display (such as average fuel consumption, range, reset maintenance reminder, etc.).
Full-LCD Dashboard Cover (Applicable to High-End Models): In vehicles equipped with full LCD displays, the upper part may contain a transparent cover or decorative panel for the display screen, which is a key component of the human-machine interaction upgrade.
Instrument Panel Beam Frame (Crossbeam) Structure: As a supporting framework, it is located at the upper end of the dashboard interior and bears the load and enhances collision safety.
Note: Do not place ornaments, phone stands, or shade pads on the upper part of the dashboard, as this may obstruct the deployment of the airbags or become a projectile in a collision, causing serious safety hazards.
The upper components of the car dashboard mainly perform three core functions: information display, safety protection, and human-machine interaction. Their specific functions are as follows:
Centralized display of key driving information: Including basic parameters such as speed, engine speed, fuel level, water temperature, oil pressure, charging status, as well as various indicator lights (such as high beam, fog light, ABS, airbag, etc.).
Enhanced driving safety: Through intuitive visual cues, it helps the driver quickly identify abnormal vehicle conditions and take appropriate measures; some models also integrate head-up display (HUD) or augmented reality navigation to reduce the frequency of looking down at the dashboard.
Integrated control and decorative functions: The upper part often has ignition switches, light/wiper control knobs, air conditioning outlets, etc., and also serves as an important part of the interior design, combining aesthetics with ergonomic considerations.
Note: Some materials mix the concepts of "upper part of the dashboard" and "dashboard" but strictly speaking, the "dashboard" (Instrument Cluster) is the core sub-component of the upper part of the dashboard, specifically referring to the display area containing instruments and indicator lights; while the "dashboard" (Instrument Panel, IP) is a broader assembly that encompasses the shell, storage space, and air outlets.
Faults in the upper components of the car dashboard usually refer to abnormalities in the upper area of the dashboard (such as indicator lights, warning lights, small screens, or backlight areas). The common causes and recommended solutions are as follows:
Common Fault Causes
Power Supply Abnormality: Fuse melting, insufficient battery power, or short circuit in the power supply line, resulting in the upper components of the dashboard not being able to be powered normally .
Poor Contact of Lines or Connectors: Loose, oxidized, or damaged wiring harness connectors, causing unstable signal transmission.
Internal Components Aging or Damage: Long-term use of the dashboard's internal circuit boards, chips, and LED lights leads to performance degradation or damage .
Software or System Fault: Incorrect software in the on-board ECU, signal interference, or system false alarms, which may cause display abnormalities . External environmental influence: Extreme temperatures, violent vibrations or dust entering the instrument panel may cause hardware failures.
False alarms or setting issues: Some indicator lights may illuminate due to driver mode changes, system brief misjudgments or setting modifications. Restarting the vehicle may restore it.
Preliminary troubleshooting suggestions:
Check fuses: Confirm whether the fuses related to the instrument panel are blown. Replace them if necessary.
Observe battery status: Check if the battery voltage is normal (should be above 12V). Eliminate the problem of insufficient power supply.
Restart the vehicle: Wait for a few minutes after turning off the power before restarting. This can clear temporary software faults.
Check the type of fault lights:
If it is a red warning light (such as oil pressure, battery, ABS, etc.), stop immediately for inspection;
If it is a yellow or orange warning light, drive cautiously and have it repaired as soon as possible.
Avoid disassembling by yourself: The dashboard structure is precise. It is recommended to have a professional technician use a diagnostic tool to read the fault codes before repairing.
If the problem persists or is accompanied by abnormal power or abnormal noises, do not continue driving. Contact a professional repair agency for handling. You can search for nearby legitimate repair points through Autohome or Pacific Auto.
