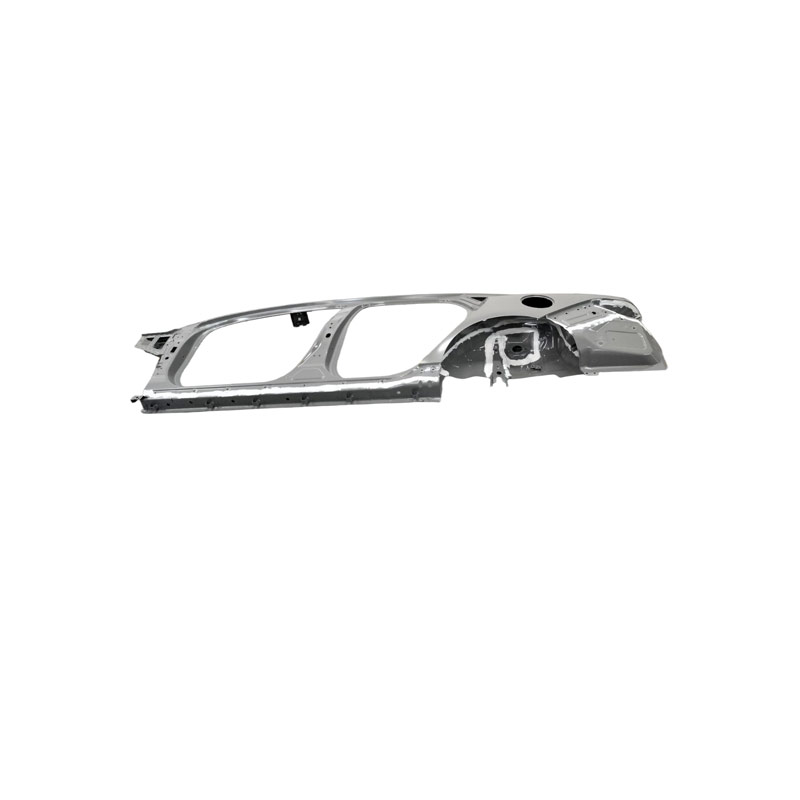

The function of the left side panel assembly of the car
The left side panel assembly of a car, usually referring to the left front fender (also known as the door panel or fender panel), is an important covering and structural component of the vehicle's front left section. According to authoritative automotive technical materials, its main functions are as follows:
Core Function
Covering and Protection: Wraps the upper half of the left front wheel, preventing sand, mud, and debris kicked up by the wheel from splashing onto the chassis, reducing erosion to the braking system, suspension, and the underside of the vehicle.
Reserved Movement Space: Provides sufficient clearance for the steering and movement of the front wheels, avoiding collisions during driving and ensuring safe handling.
Aerodynamic Optimization: Its streamlined arch shape helps guide air flow, reduces the drag coefficient, and improves driving stability and fuel economy.
Structural Connection: Connects the engine cover, front door, and front bumper, filling in the gap between components, ensuring smooth lines and uniform gaps on the vehicle's front section, and meeting manufacturing process standards.
Structural and Maintenance Characteristics
Material Selection: Mostly uses steel (high strength) or aluminum (lightweight), balancing durability and fuel efficiency.
Assembly Method: Some models are integrated with the body, enhancing overall rigidity; more often, they use independent assembly structures, facilitating quick replacement after minor collisions and reducing maintenance costs.
Maintenance Suggestions: Small scratches or dents can be repaired by sheet metal work; if there are through-type damages or large deformations, it is recommended to replace the entire component to restore the original factory precision and appearance.
Note: If the "left side panel assembly" in the question refers to the entire left body outer panel system including doors, skirts, etc., then it also involves the "side panel assembly assembly", which covers supporting the roof, connecting the front and rear bodies, installing doors and glass, and providing safety protection in side collisions.
However, in the usual context, "left side panel" mostly refers to the left front fender.
"Left Side Panel Assembly Failure" is a rather broad term. Considering the current time (April 2026) and common fault types, it may involve "left front door, left body control area or left dashboard-related components". Based on the public information released by authoritative automotive platforms (such as PCCar, Yiche.com), the possible causes and corresponding solutions are as follows:
Common Fault Types and Corresponding Causes
Remote Control Locking Failure of the Door
Remote control key battery is low
Left front door lock motor failure (carbon brush wear or gear jamming)
Door lock lever position offset
Body control module (BCM) failure
Door wiring plug loose or wire断裂
Window Failure to Rise/Lower
Window lifting motor damage or overheating protection
Main control switch (master control button) copper plate failure or circuit aging
Glass guide groove dirt accumulation， rubber strip aging causing excessive resistance
Lifting mechanism fixing screws loose or guide rail deformation
Control module or wiring short circuit
Left Side Instrument/Central Control Panel Buttons Fail (such as navigation， air conditioning control)
Touch screen or button sensor contact failure
Mainboard circuit burnout or control signal abnormality
Vehicle system data disorder requiring reset or re-matching
Control circuit board failure
Left Side Body Sensor Failure (such as wheel speed， radar， airbag related)
Wheel speed sensor signal dirty or damaged
Airbag system plug loose， ground connection poor or battery low
Radar affected by rain， snow or hardware damage
ECU communication abnormal
Suggested Troubleshooting Steps
Initial Inspection
Confirm whether it is a single-function failure (such as only the window or only the door lock) or multiple left-side panel functions fail simultaneously.
Check the remote control key battery (replace CR2032 for testing).
Observe for any abnormal sounds， burnt smell， or instrument alarm lights.
Simple Self-Resolution
For window failure： Try to initialize the window lifting system (hold up for 3 seconds → hold down for 3 seconds， repeat 1–2 times). For malfunctioning vehicle buttons: Try long-pressing the restart button or restoring factory settings (for some models, you may need to remove the dashboard for operation).
Professional Diagnosis
If the above methods do not work, or if it involves systems such as airbags, radars, BCM, CAN network, etc., do not disassemble by yourself.
It is recommended to go to a 4S store or authorized repair center, use a dedicated diagnostic instrument to read the fault codes, and accurately locate the problem.
Precautions
Safety First: For faults related to airbags, braking, steering systems (such as "airbag" "wheel speed" "collision sensor" prompts on the left front side), stop immediately and have professional maintenance.
During the warranty period: If it is a new vehicle or still within the warranty period, some electrical faults can be repaired free of charge.
If specific vehicle model and fault phenomenon (such as "window cannot be raised" "door lock does not respond" "instrument indicates left front sensor failure" etc.) can be provided, the scope of troubleshooting can be further narrowed.
