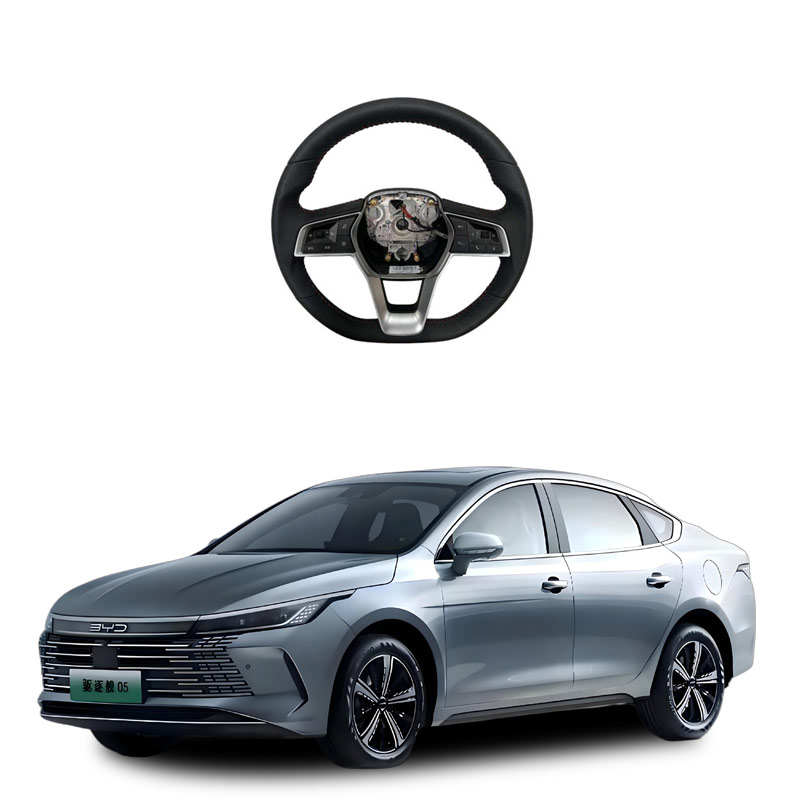

The function of the car steering wheel assembly
The steering wheel assembly (typically referring to the steering wheel assembly) is the core interaction component between the driver and the vehicle's steering system. Its main functions can be summarized as follows: Core function
Transmitting steering intention: Convert the driver's operation of turning the steering wheel into mechanical or electrical signals and input them into the steering system.
Providing road feedback: Through the return force motor or mechanical structure, feedback the road conditions and vehicle dynamics to the driver.
Integrating control functions: Integrate operation buttons such as turn signals, horn, wipers, cruise control, and audio, enhancing driving convenience and safety.
Composition and working principle (taking modern vehicles as an example)

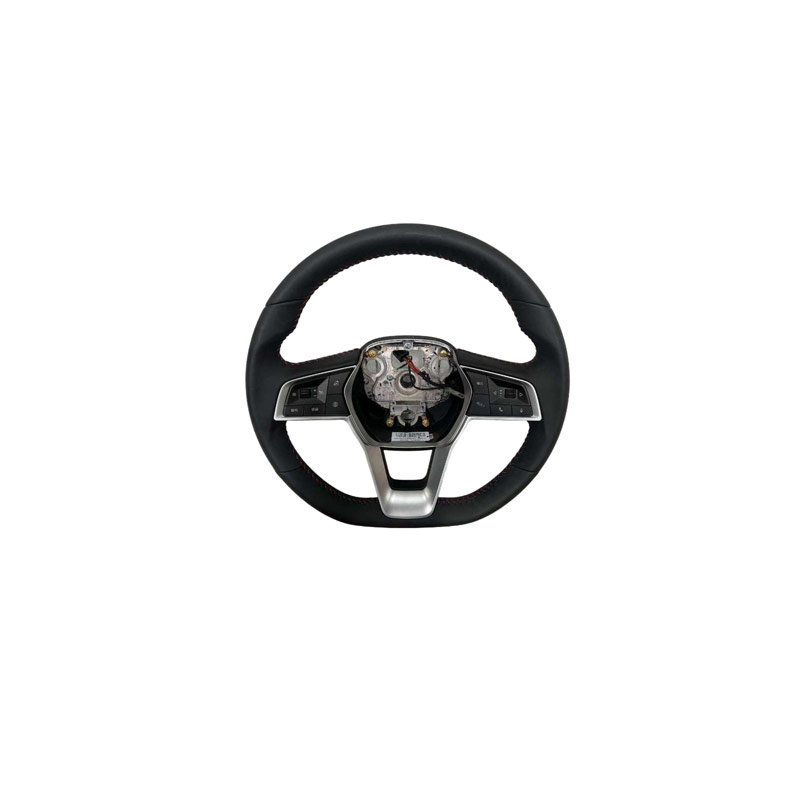

Steering wheel body: Includes the hub, spokes, rim, and airbag installation structure, providing a grip point for the driver and allowing them to apply steering force.
Sensor components:
Steering wheel angle sensor: Detects the rotation angle of the steering wheel.
Torque sensor: Sensing the steering force applied by the driver.
Signal transmission: Through the spiral cable (brush) to transmit signals to the main controller (ECU).
Execution and feedback: The ECU, based on parameters such as vehicle speed and steering angle, controls the steering execution assembly (such as electric power assistance motor or hydraulic system) to drive the front wheels to turn and adjusts the return torque to optimize the handling feel.
In the traditional mechanical steering system, the steering wheel assembly directly transmits force through the steering shaft and the steering gear (such as the gear-rack type) to the wheels; while in the Steer-by-Wire system (Line Control Steering), the mechanical connection is eliminated, and all operations are carried out by electrical signals and motors.
Safety and comfort design
Crush energy absorption structure: Absorbs impact forces during a collision, reducing the harm to the driver.
Integrated safety airbags (DAB): Most models integrate the driver's main airbag inside the steering wheel. Adjustable design: Supports up/down and front/back adjustment, suitable for different driver body types.
The faults of the car steering wheel assembly usually manifest as problems such as difficulty in steering, abnormal noises, shaking, deviation, poor return, or lock-up of the steering wheel. According to authoritative automotive repair materials, the following are the common fault manifestations and possible causes:
Common Fault Manifestations and Corresponding Causes
Heavy steering or difficulty in turning
Insufficient or deteriorated assist fluid
Damaged assist pump or leakage of seal
Internal wear of the steering gear (such as excessive clearance between gear and rack)
Low tire pressure or abnormal suspension system
Abnormal noises from the steering wheel (such as clicking or clattering sounds)
Wear of the steering ball joint or outer ball joint of the cross-link rod (damage to the dust cover causing dry grinding of metal)
Poor lubrication of the steering column universal joint or wear of the bearing
Wear of the shock absorber top rubber and stuck bearings
Damage to the internal gears or bearings of the steering gear
Shaking of the steering wheel
Loosening or wear of internal parts of the steering gear
Loose hub bearings of the front wheel
Poor tire balance or deformed wheel rim
Deviation of the vehicle (automatically deviating to one side when driving in a straight line)
Uneven wear of steering gear gears, resulting in asymmetric transmission of steering force
Incorrect front wheel alignment parameters (such as front toe, camber angle)
Unequal tire pressure or wear differences
Difficulty in returning the steering wheel
Oiling deficiency or burn damage of the steering joint main pin and bushing
Corrosion or insufficient lubrication of the cross-link rod joint
Excessive meshing or insufficient assist in the internal gear of the steering gear
The steering wheel cannot be turned at all
Trigger of the steering lock mechanism (commonly occurs after engine shutdown when the steering wheel does not return to the center)
Faults of the electronic power steering system (such as failure of sensors or control unit)
Severe jamming of mechanical components (such as stuck steering gear, broken cross-link rod)
Suggested Treatment Steps
Initial inspection: Confirm whether the tire pressure is normal, whether the assist fluid level is sufficient, and whether there is any obvious leakage.
Observe the location of the abnormal noise: When turning the steering wheel in place, determine whether the sound comes from the front wheel, the steering column, or the engine compartment.
Avoid continued driving: If there is heavy steering, shaking, or deviation, stop the vehicle immediately to avoid high-speed driving.
Professional repair: Go to a qualified repair facility, use a diagnostic tool to read the fault codes, and conduct mechanical inspection.
