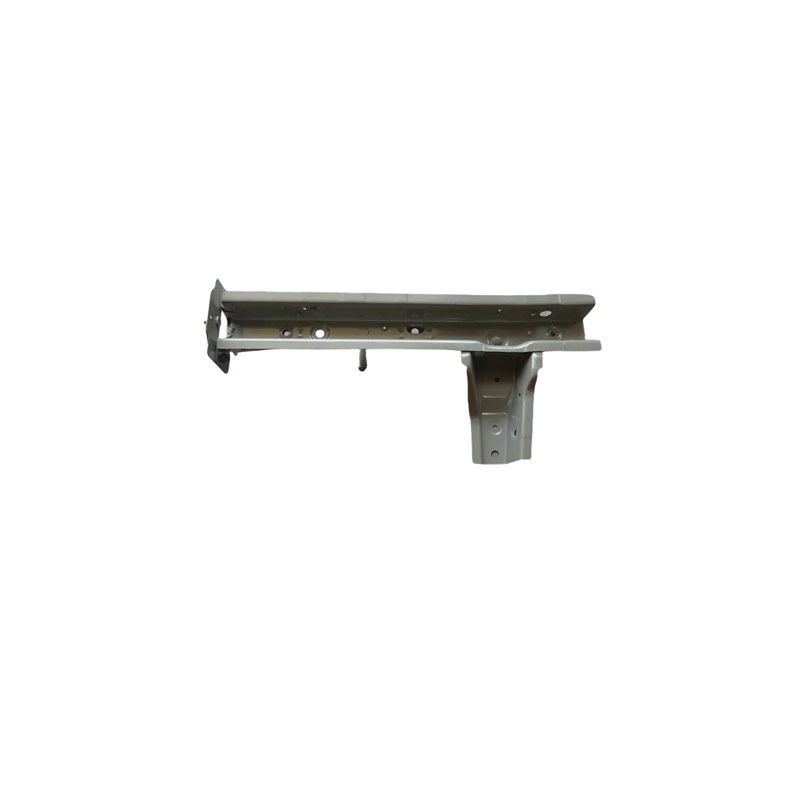

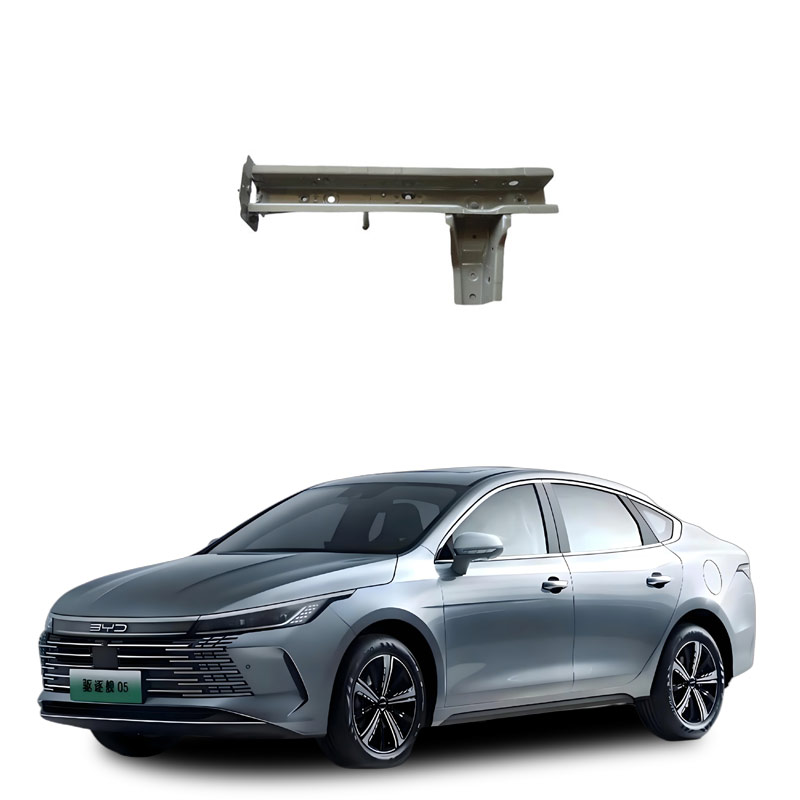

What are the rear components of the left rear longitudinal beam of the car?
The rear component of the left rear longitudinal beam of a vehicle typically refers to the rear section of the left rear longitudinal beam, which is a key load-bearing component in the vehicle's structure located beneath the luggage compartment (trunk) and on the left side.
According to authoritative public information, its core definition and functions are as follows:
Location: Located at the rear of the vehicle, inside the left rear wheel, beneath the trunk floor, and is an important component of the side beam frame of the vehicle frame.
Structural form: Mostly made of low-alloy steel through stamping, with a cross-section in the form of a groove, I-beam, or box; some high-end models (such as NIO ES8, Cadillac CT6) adopt an integrated aluminum alloy structure to achieve lightweighting.
Functional role:
Carries the longitudinal load of the vehicle, enhancing the rigidity of the body;
In rear-end collisions, it undergoes controlled crushing deformation to absorb energy, protecting the passenger compartment and key components (such as the fuel tank, battery pack);
Collaborates with the impact beam and energy absorption box to form the rear safety protection system.
Typical aliases: rear side member, floor side member, rear floor side frame.
In addition, there is a utility patent (CN 213892680 U) specifically optimizing the design of "the rear floor side assembly structure of the rear floor longitudinal beam". By adding wave-shaped sections, anti-bending rods, collapse holes, and strengthening plates, its bending stiffness and energy absorption performance are enhanced, suitable for improving collision safety.
In summary, this component is the core structural beam of the left rear part of the vehicle body, which is crucial for the safety and rigidity of the entire vehicle. During maintenance, it requires professional institutions to use a beam alignment instrument for precise replacement or repair.
The left rear longitudinal beam of a vehicle (commonly referred to as the rear longitudinal beam) is a key load-bearing component in the vehicle's structure. Its rear component plays an important role in vehicle safety and structural integrity. Based on current public information, its main functions are as follows:
Core function
Structural support: As an important component of the vehicle frame, the rear longitudinal beam extends longitudinally along the vehicle, together with crossbeams and floors, forming a load-bearing framework that supports the chassis, suspension, and passenger compartment structure.
Collision energy absorption: In rear-end or rear collision scenarios, the rear longitudinal beam undergoes controlled crushing deformation to absorb impact energy, reducing the force transmitted to the passenger compartment and protecting the driver and passengers' safety.
Energy transfer path: Transmits the impact force from the rear impact beam (through the energy absorption box) to the main body structure of the vehicle, achieving "one point of force application, full body absorption", avoiding excessive deformation of the local area.
Installation and connection: The rear part of the rear longitudinal beam often integrates components such as the spare tire bracket, fuel tank bracket, and exhaust system hanger points, serving as the key supporting foundation of the rear floor assembly.
Special characteristics of the rear component
The "rear" of the rear longitudinal beam usually refers to the area near the rear end, near the rear axle or the trunk floor. The design of this area pays more attention to:
Controllable collapse: In high-speed rear-end collisions, it collapses in an orderly manner to protect the fuel tank and passenger space;
Collaboration with the rear impact beam: Through a low-speed energy absorption box connected to the rear impact beam, in low-speed (<15 km/h) collisions, it absorbs energy to prevent the rear longitudinal beam from deforming, reducing maintenance costs;
Trend of lightweighting and integration: Modern models use integrated aluminum alloy or hot-formed high-strength steel for the rear part of the rear longitudinal beam to achieve weight reduction and strength balance.
If the rear longitudinal beam (especially the rear part) undergoes bending, cracking, or permanent deformation in an accident, it will significantly weaken the vehicle's passive safety. It is recommended that professional repair institutions assess whether to replace it instead of simply correcting it.
The left rear longitudinal beam (i.e., the rear longitudinal beam) is a key structural component of the vehicle body, mainly responsible for collision energy absorption and bearing. Once this part malfunctions, the handling method should be determined based on the degree of damage. The following are systematic handling suggestions based on authoritative public information:
Damage assessment
Before any repair measures are taken, the damage must be evaluated by a professional institution, including:
Checking the extent of deformation, depth, and whether it affects surrounding structures (such as suspension, fuel tank, exhaust system, etc.);
Using professional tools (such as laser measuring instruments, ultrasonic or magnetic particle testing) to determine if there are cracks or yield in the interior.
Repair plan selection
Depending on the severity of the damage, there are mainly two handling methods:
Minor deformation (such as local indentation, no cracks)
Can try cold repair or correction stretching:
Use a hammer + support iron for cold state shaping, preserving the original vehicle anti-corrosion layer;
Or use a frame correction instrument, fixing with fixtures and reverse stretching to restore the original state.
Severe damage (such as fracture, severe wrinkling, welding cracks)
It is not recommended to repair by welding, as it cannot restore the original factory strength and poses safety hazards. It is recommended to replace the entire new crossbeam.
Post-repair key processing steps
Regardless of which repair method is used, reapply anti-corrosion and rust prevention treatment, as follows:
Polish the damaged area to the metal original color;
Apply epoxy primer (which has both anti-corrosion and enhances the adhesion of putty);
Reapply putty, polish, and spray topcoat.
Note: Thermal repair (such as cutting, welding) will severely damage the original vehicle anti-corrosion layer. It is only used when necessary and requires thorough rust prevention.
Suggested operation process
Stop driving immediately if the damage affects control or poses safety hazards;
Go to a regular repair facility (such as 4S store or professional body repair shop), avoid non-professional handling;
Request a pre- and post-repair inspection report to ensure dimensions meet original factory standards;
Replacement parts must match the vehicle model, especially pay attention to the connection accuracy of the crossbeam with the frame and suspension.
Precautions
Possible problems after repair: abnormal noise, steering deviation, reduced driving stability, even if the appearance is repaired well;
Insurance claim: If caused by an accident, it is recommended to contact the insurance company for assessment, and for some vehicle models, replacing the crossbeam is a claimable item;
