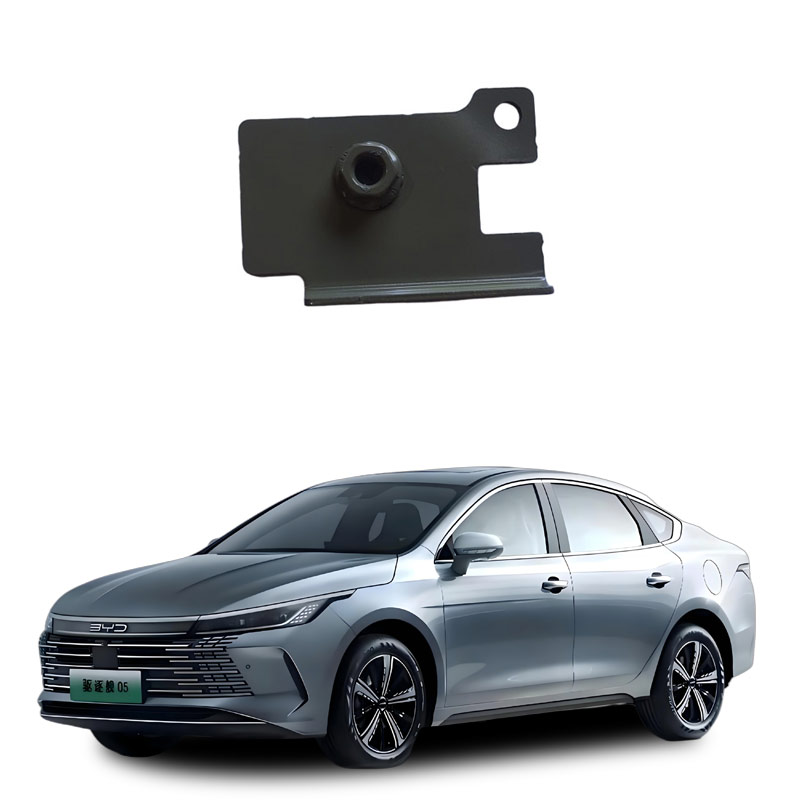

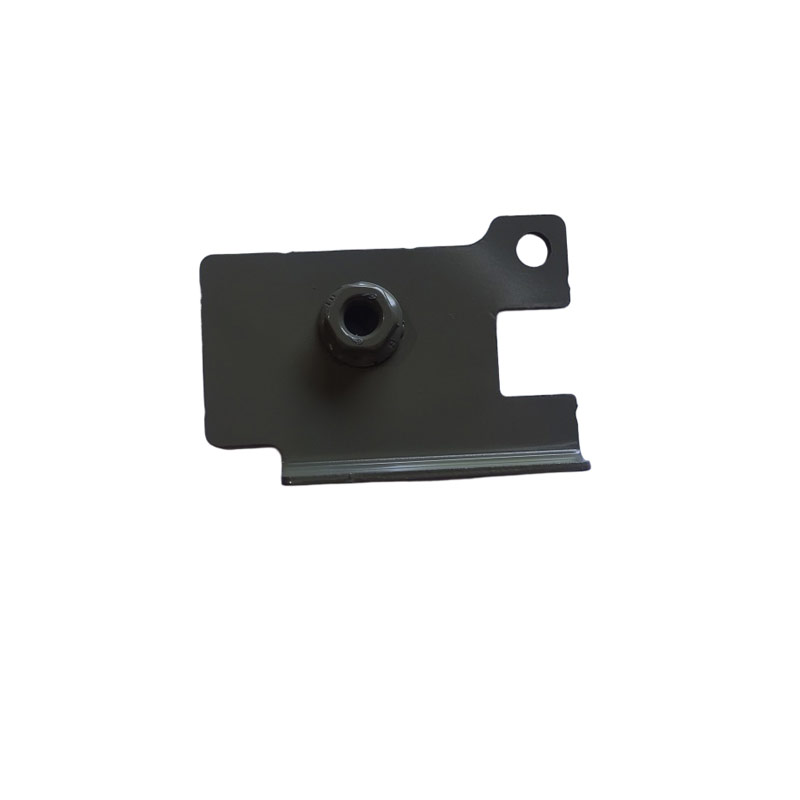

What is the positioning block on the right side of the front module of the car?
The right positioning block of the vehicle's front module refers to the structure or tooling component used during the vehicle assembly process to precisely locate the front module (FEM) at the right side of the vehicle body. Its main function is to ensure that the front module (including the front bumper, headlights, radiator, sensors, etc., as integrated components) has the correct gap, alignment, and installation accuracy with the vehicle body as per the design standards during assembly.
According to public information, this positioning block typically has the following features:
Function positioning: As the connection and positioning reference between the front module assembly and the vehicle body (such as the front longitudinal beam, front reinforcement beam), it ensures the consistency of assembly.
Structural form: It may be a positioning plate with holes, conformal positioning pins, tongue structure, or a positioning component with pre-adjustment mechanisms, often used in conjunction with the corresponding structure on the left side.
Application scenarios: It is mostly used in the front module installation fixtures on the welding or assembly line of the white body, achieving high-precision positioning through reference pins, alignment mechanisms, etc.
Patent technology manifestation: For example, in Dongfeng off-road vehicles' "linkage mechanism positioning auxiliary device", the right positioning base plate is used for precise positioning with the right side front reinforcement beam assembly; the assembly fixture of Zolax uses the third clamping unit to position the front headlight bracket, indirectly achieving right-side module positioning.
In summary, the right positioning block is a key positioning structure that ensures the correct installation of the front module on the right side of the vehicle body. It belongs to a precision assembly component in automotive manufacturing, and ordinary users usually do not directly come into contact with or observe it in daily use.
The main function of the right positioning block of the vehicle's front module is to ensure the precise positioning and installation of the front module during assembly. Its function can be understood from both the manufacturing and structural perspectives:
Manufacturing and assembly stage function
Positioning reference: On the assembly line, the mechanical hand aligns with the reference holes or features on the vehicle body through the positioning block (including the right positioning block) to ensure the accurate installation position of the front module (including headlights, grille, bumper, etc.).
Error prevention and repeatability: The positioning block combined with the tooling fixture ensures consistency in each installation, reduces human error, and improves assembly efficiency and quality.
Structural and functional aspect function
Limitation and stability: As a part of the connection structure between the front module and the vehicle body, the right positioning block limits the relative displacement of the module during vehicle operation, enhancing the overall rigidity and stability.
Stress dispersion: Some positioning blocks use rubber or elastic materials to absorb vibrations and impacts, reducing direct collisions between metal parts and improving durability.
Note: If "right positioning block" refers to the small square visible on the front of the vehicle (such as near the headlights), it is more likely to be a component like a headlight cleaning device, radar, or camera; if it refers to the assembly fixture or structural connection positioning block, it belongs to manufacturing and assembly positioning elements. The specific location needs to be determined.
The expression "failure of the right positioning block of the vehicle's front module" is not directly corresponding to a professional term or common fault description in public information. Based on current mainstream automotive maintenance knowledge and related materials, there may be the following possible explanations and troubleshooting directions:
Possible explanations and troubleshooting directions
Term confusion or misreading:
"Positioning block" is not a standard term in automotive electronic systems. It is more likely to refer to the failure of right-side related sensors, modules, or circuits, such as:
Right front radar sensor
Right front airbag system (such as airbag spring, airbag sensing module)
Right-side signal anomaly of the vehicle control module (BCM) or front control unit
Based on the "right front side fault" phenomenon in authoritative materials of PCC Auto:
Several authoritative materials of PCC Auto point out that Mercedes-Benz and other models indicate "right front side fault" usually involves the following aspects:
Wiring plug loosening or poor contact: such as airbag springs, under-seat plugs
Airbag system anomaly: including airbag spring damage or sensing system failure Oxygen sensor displacement or damage: Caused by intense driving or collision
Fuel injector blockage or intake valve carbon buildup: Indirectly causing the engine control module to misjudge
Right front lamp bulb burned out: Mechanical issue that is easy to detect
If it involves "front-end modules":
Some high-end models (such as Mercedes-Benz, BMW) are equipped with front-end assistance driving modules or radar control units. The abnormal right positioning function may manifest as:
Adaptive cruise control failure
Lane departure assistance failure
Blind spot monitoring false alarm
Such faults can only be confirmed by reading specific fault codes (such as U0423, B1000, etc.) through a diagnostic tool.
Suggested operation steps
Confirm the type of fault light and its display content
Is it the "right front side fault" prompt on the dashboard? Or is it the "radar fault" or "position abnormal" message on the central control screen?
Is there any other system anomaly (such as airbag light on, ACC failure)?
Preliminary self-check
Check if the right front headlights are properly illuminated and if the bulb is black
Observe if there is any obstruction, water accumulation or physical damage in the right front radar area (usually inside the front bumper)
Ensure the vehicle is parked in an open area to avoid signal interference from underground garages, etc.
Use professional diagnostic equipment to read the fault codes
It is necessary to connect the vehicle to an OBD-II diagnostic tool to read the fault codes stored in specific control modules (such as SRS, BCM, DAS)
It is recommended to go to a 4S store or a professional repair facility, especially for brands like Mercedes-Benz, where the original factory diagnostic system (such as Xentry) is required
Avoid self-disassembly
The right front side involves the airbag system. Non-professional operation may lead to false triggering or safety hazards Summary
"The right positioning block failure" is most likely an incorrect and non-standard description of a problem with the right front sensor, safety module, or control unit. The core solution approach is:
- Read the fault code → Precisely locate the faulty module → Perform targeted repair or replacement
If further assistance is needed, please provide the specific vehicle model, year, and complete fault message for a more accurate determination.
