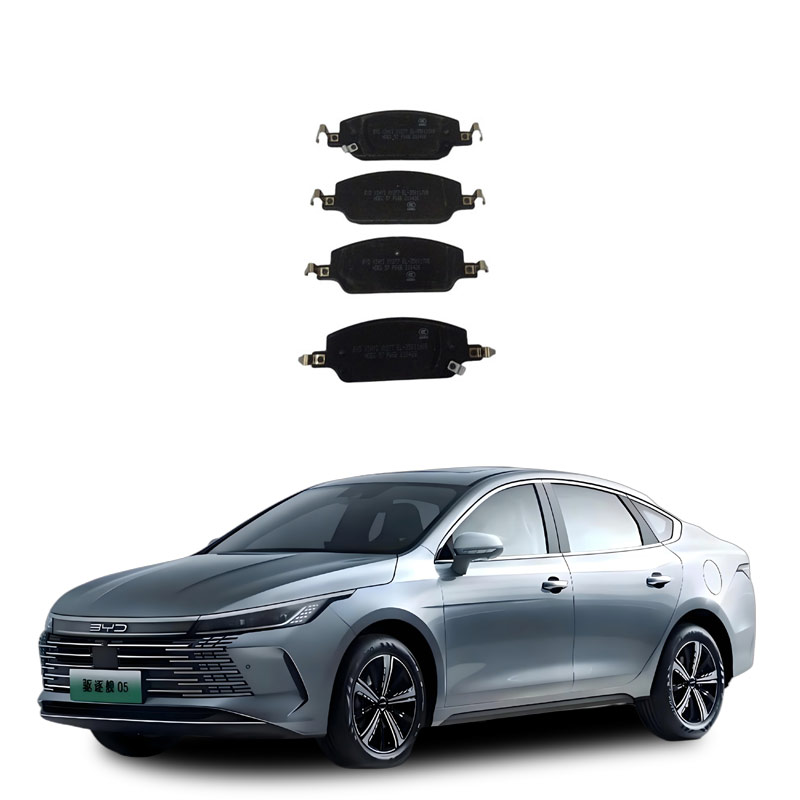

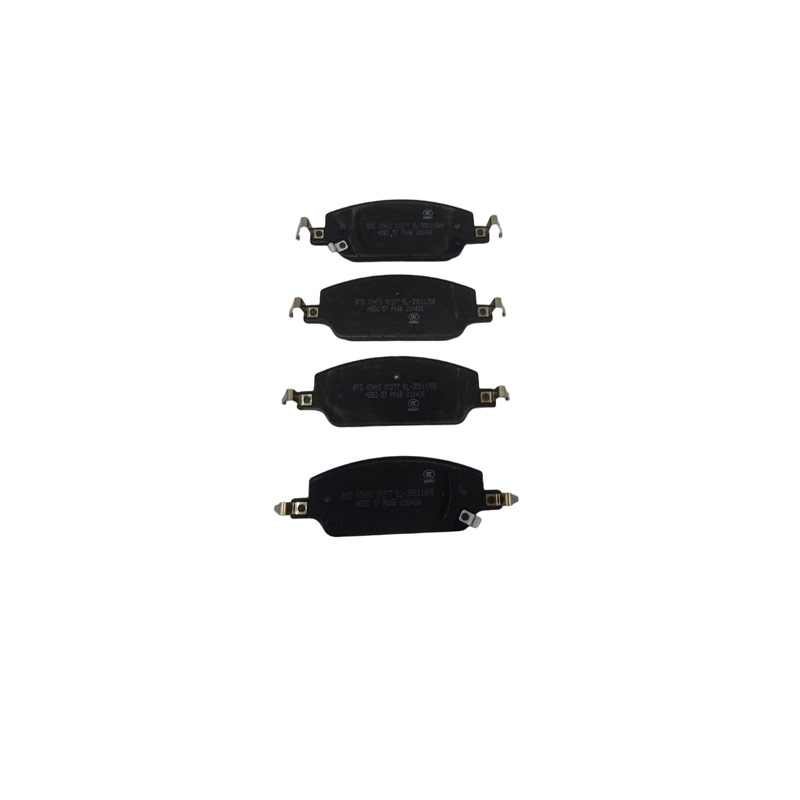

The function of the front brake pad assembly of a car
The front brake pad assembly is a crucial safety component in the braking system. Its main function is to generate braking force through friction, causing the vehicle to decelerate or stop. Here are the key functions and structural points of it:
Core Function
Generate Braking Force: When the driver depresses the brake pedal, the brake caliper pushes the front brake pad to clamp onto the rotating brake disc (disc braking), utilizing friction to convert the vehicle's kinetic energy into heat energy, thereby achieving deceleration or stopping .
Ensure行车 Safety： The front brake takes up most of the braking force (especially in emergency braking)， and a well-performing front brake pad can significantly shorten the braking distance and prevent braking failure .
Protect Other Brake Components： Timely replacement of worn-out front brake pads can prevent the metal backing plate from directly wearing down the brake disc， avoiding costly damage .
Structural Composition
The front brake pad is typically composed of the following parts ：
Friction Material Layer： Directly in contact with the brake disc， generating friction force， the material includes semi-metal， ceramic， NAO (non-asbestos organic) and others.
Back Plate： High-strength steel plate or aluminum alloy， used to support the friction layer and transfer braking force.
Heat Insulation Layer： Located between the friction layer and the back plate， reducing heat conduction to the caliper or brake fluid.
Noise Reduction Device (optional)： Such as noise reduction pads or coatings， used to reduce braking noise.
Difference between Front vs Rear Brake Pads
Function Focus： The front brake pad is responsible for the main braking force， while the rear brake pad serves as an auxiliary function .
Wear Speed： The front brake pad wears out more quickly due to higher load than the rear pad .
Design Differences： Front brake pads often use materials with higher heat resistance and resistance to heat degradation to cope with higher working temperatures .
Tips： It is recommended to check the thickness of the front brake pad every 5，000–10，000 kilometers. When the friction material is less than 3mm， consider replacement； when it is less than 1–1.5mm， it must be replaced immediately to ensure braking safety .
The front brake pad assembly of a car is a high-priority safety issue that requires immediate handling. Here are the key information and response suggestions：
Confirm if it is truly "damaged"
Common manifestations of brake pad damage include：
Sharp abnormal noise (metal backing plate rubbing against the brake disc)
Softening of the brake pedal or longer travel
Significantly longer braking distance
Shaking of the steering wheel or vehicle body (possibly accompanied by brake disc problems)
Worn thickness < 3mm (standard for front wheels)
If there are signs of metal scraping or brake failure， please stop the vehicle immediately and do not continue driving.
Processing Steps
Stop using the vehicle
Avoid high-speed driving or emergency braking to prevent accidents or further damage to the brake disc.
Contact a professional repair shop
It is recommended to go to a regular auto repair shop or 4S store for inspection and replacement. Self-replacement is risky， especially without professional tools and experience .
Replacement Principle
Same-side Pair Replacement： The left and right front wheel brake pads must be replaced simultaneously， otherwise it will cause uneven braking force and vehicle drift .
Synchronous Inspection of Brake Discs： If the brake disc has deep grooves， cracks， thickness lower than the minimum limit (usually <22mm， depending on the model)， or end face runout >0.05mm， it also needs to be replaced or treated as a polished disc .
Choose Appropriate Accessories
It is recommended to use original or brand parts (such as Bosch， Akebono， NRS， etc.)， avoiding inferior products that cause abnormal noise， burning， or cracking .
Material Options： Ceramic (quiet， less dust)， Semi-metal (wear-resistant， suitable for intense driving).
III. Common Misconceptions Reminder
"Replace only the damaged side" → Must be paired replacement . "The brake discs can still be used; no replacement is necessary." → If the disc surface is severely worn or deformed, replacement is mandatory; otherwise, the new brake pads will not fit properly.
"Just replace it yourself" → The braking system is related to safety; professionals suggest leaving it to technicians.
Four. Subsequent Maintenance Suggestions
Check the thickness of the brake pads every 5,000 - 10,000 kilometers.
After replacement, perform a test drive for running-in (avoid sudden braking for the first 200 kilometers).
Regularly check the brake fluid (recommend replacement every 3 - 5 years or 4 - 6 kilometers).
