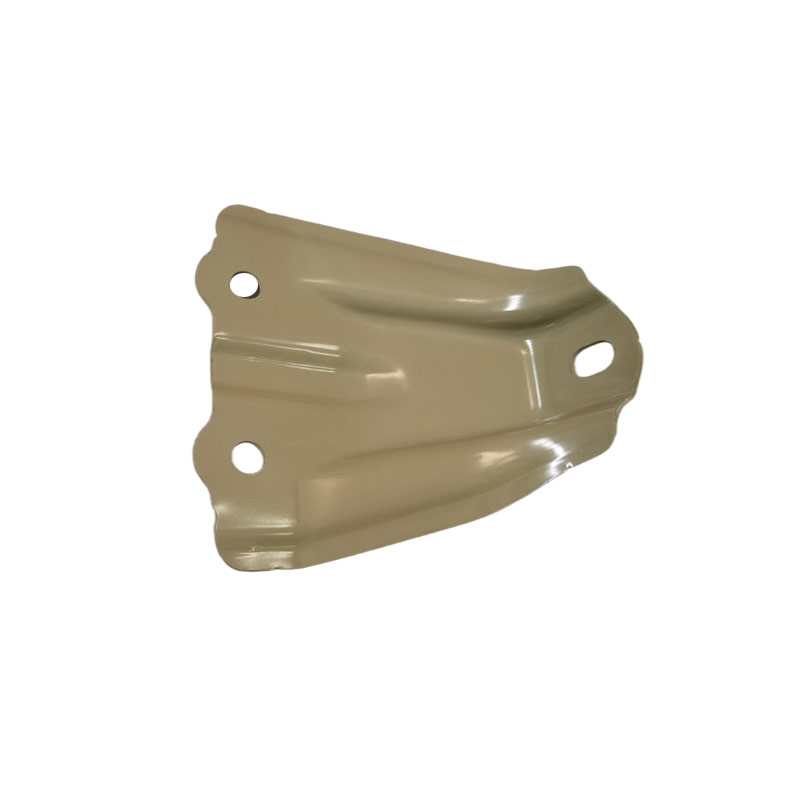

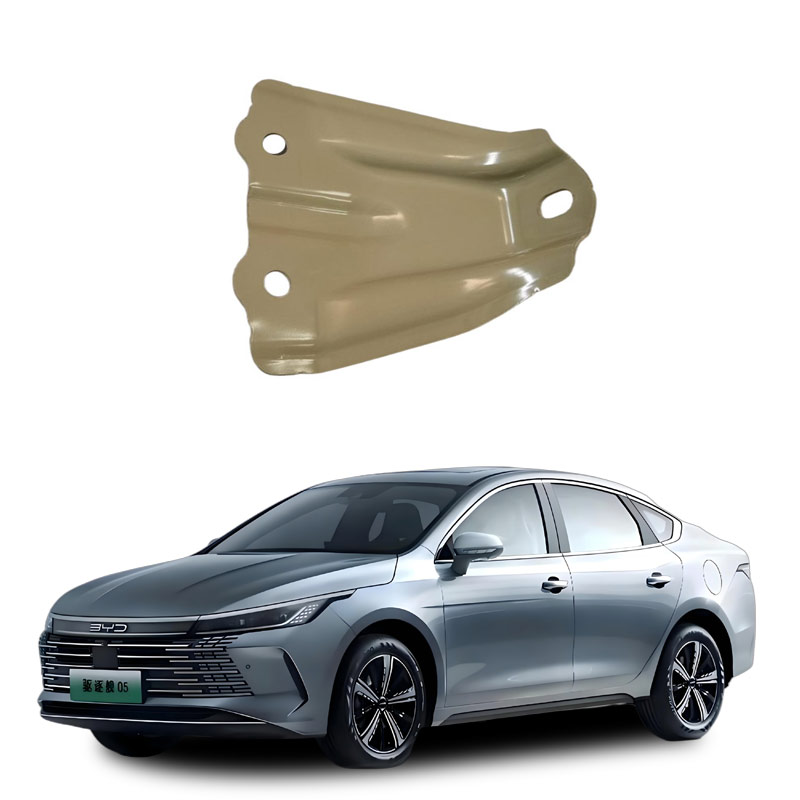

What is the third crossbeam connection plate of the car's roof cover?
The "third crossbeam connection plate" on the top cover of a car usually refers to the rear crossbeam connection plate, which is a key sheet metal component used to connect the rear crossbeam (the third top crossbeam) to the side panel structure (such as A-pillars, B-pillars, or side panel inner plates) of the vehicle body.
According to public information and automotive body-in-white design conventions:
Most modern sedans (such as the Audi A8L) have a top structure consisting of three top crossbeams: the front crossbeam, the middle crossbeam, and the rear crossbeam.
The "third crossbeam" is the rear crossbeam, located at the upper end of the vehicle body, near the trunk or rear windshield.
The function of the "connection plate" is to reliably connect this crossbeam to the side panel assembly (such as the inner plate on the A-pillar, the reinforcement plate on the side panel, etc.), to enhance the bending stiffness of the roof and rollover safety.
Function and structural characteristics
Structure form: Usually made of stamped steel, with bulges, welding holes, and lap edges to match the arched shape of the roof cover and reduce assembly gaps.
Connection method: Fixed to the side panel inner plate, crossbeam body, etc. through resistance spot welding or laser welding.
Design purpose:
Improve the overall rigidity of the roof;
Protect the passenger compartment in rollover accidents;
Provide installation support for rear doors, roof, and sealing strips.
Related technical improvements
There are patents (such as CN220053949U) proposing to directly connect the top beam to the roof beam by setting a folding connection plate on the inner plate of the A-pillar and the reinforcement plate of the side panel, without the need for additional brackets, which enhances stiffness and reduces costs.
Another design (such as CN201811637411.6) optimizes the welding overlap area between the crossbeam reinforcement plate and the side panel inner plate, further improving the connection stiffness.
The "third crossbeam connection plate" on the top cover of the car usually refers to the second or middle crossbeam (in the order from front to back: the first one is close to the front windshield, the second one is in the middle, and the third one is close to the rear windshield). According to public information, the main functions of the top crossbeams and their connection plates are as follows:
Core function
Enhance roof rigidity: Prevent the vehicle from twisting and deforming during driving, turning, or bumps, and enhance the stability of the overall vehicle structure.
Roll-over safety protection: Maintain the head space of the passenger compartment in rollover or roll-over accidents, especially crucial for models with panoramic sunroofs.
Support roof interior and accessories: Provide installation benchmarks and load-bearing structure for roof interior panels, sunroof mechanisms, seat belt fixation points, lighting systems, etc.
Specific explanation of the "third crossbeam connection plate"
Most sedans are equipped with 2–3 top crossbeams, and the "third one" is usually located at the rear, close to the rear windshield, connecting the left and right C-pillars or the rear side panel.
"The connection plate" is a structural connection component between the crossbeam and the side panel and column, used to transfer loads, ensure the crossbeam is firmly fixed, and optimize the collision energy path.
If this crossbeam is behind the panoramic sunroof, its design also needs to take into account the requirements for sunroof sealing, drainage, and sound insulation.
Note: Some models (such as the Audi A8) have no obvious crossbeam bulge on the roof, but there is still an internal strengthening structure; while models with visible crossbeams often have segmented panoramic sunroofs.
Regarding the "failure of the third crossbeam connection plate on the car top cover", there is currently no direct description in public information about "failure of the roof cover beam connection plate". However, based on automotive structure and relevant materials， the following analysis can be made：
Key explanation
"Top cover" usually refers to the roof inner liner or outer panel， while the "crossbeam connection plate" generally belongs to the bottom structure of the vehicle body (such as floor crossbeams， longitudinal beam connection pieces).
The "crossbeam connection plate" in the vehicle body structure is mainly located in the chassis area， used to connect the floor， longitudinal beams， and crossbeams， enhancing torsional stiffness and collision safety. If the problem specifically refers to the crossbeam or connection structure at the roof area (such as the roof luggage rack crossbeam, roof reinforcement beam, etc.), it may involve:
Roof longitudinal beam / side beam (resisting side impact load)
Roof crossbeam (supporting roof strength, present in some models)
Luggage rack installation crossbeam (non-structural component, only for bearing)
Possible causes of failure (based on structural logic inference)
If the "third crossbeam connection plate" is located in the roof area and fails, it may include:
Installation loosening or detachment: Commonly occurs in the fixing brackets of the roof luggage rack crossbeam.
Material fatigue or corrosion: Long-term use leads to rusting at connection points or metal fatigue.
Collision or external force impact: Such as the roof being crushed by heavy objects, rollover, etc., causing deformation or fracture.
Design or manufacturing defect: Such as microcracks generated during stamping, which expand under stress.
Recommended handling steps
Confirm the specific location and function:
Distinguish whether it is a structural crossbeam (affecting safety) or a decorative/attachment crossbeam (such as the luggage rack).
Stop using the related function:
If it involves roof load-bearing (such as the luggage rack), suspend loading items.
Professional inspection:
Go to a 4S store or professional repair facility for visual inspection, size measurement, non-destructive testing (such as ultrasonic testing).
Repair or replacement:
Loosening: Tighten or replace the fasteners;
Structural deformation / fracture: Requires replacement of the original part and welding reinforcement according to the manufacturer's standards.
Note: If the roof structure component is damaged, it may significantly reduce the side impact protection capability and the overall rigidity of the vehicle. It is essential to pay attention.
