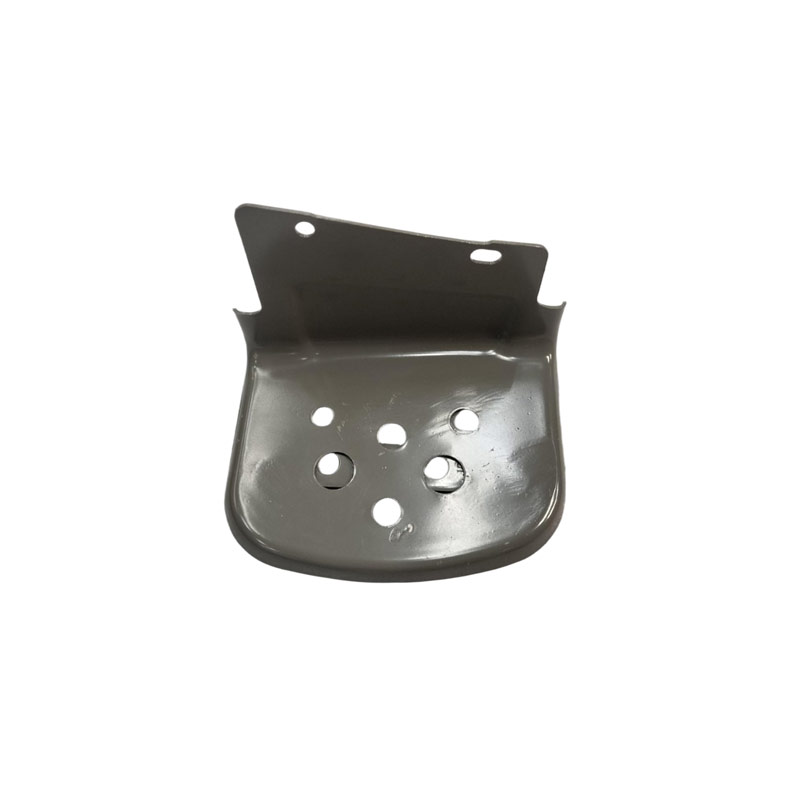

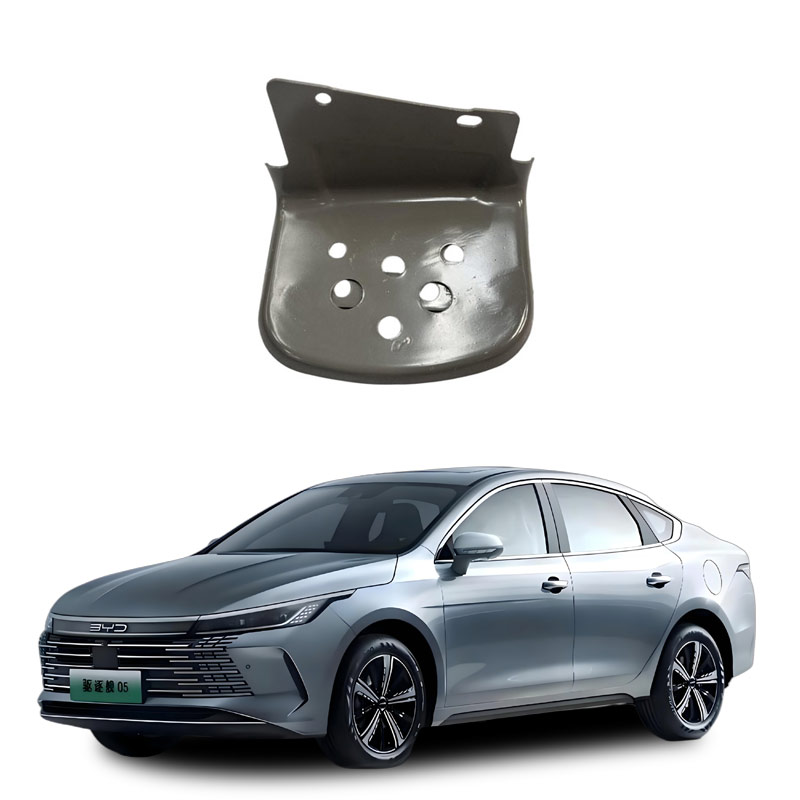

What is the assembly part for the reinforcement plate of the car rear door lock?
The assembly component for the rear door lock reinforcement plate is a specialized automotive part assembly used to enhance the structural strength of the locking mechanism installation area on the rear door (or rear hatch). It is typically composed of the rear door lock reinforcement plate, the nut plate assembly, the foam sound insulation gel block, the flange structure, etc., and is fixed to the C-pillar, rear door inner panel, etc. of the vehicle body through welding or bolts.
Main functions and features
Enhanced structural stiffness: By strengthening the plate body and internal structure (such as U-shaped cavity, reinforcing ribs), the anti-deformation ability of the rear door lock installation point is improved.
Improved door opening and closing quality: The internal filling of the foam sound insulation gel block fills the cavities after the coating line, effectively reducing noise and vibration, and improving the sound quality and touch of door opening and closing.
Easy installation and integration: The integration of the nut plate assembly facilitates the quick assembly of lock mechanisms, hinges, etc.; some designs also support the installation of rear hatch lights.
Adaptation to lightweight and platformization requirements: The structure is simple and suitable for multi-model shared platform development, shortening the development cycle.
Typical structural composition (taking Chery's patent as an example)
Rear door lock reinforcement plate: Main structure, forming an open structure cavity.
Structural cavity: Contains the foam sound insulation gel block, used for sound absorption and buffering.
Nut plate assembly: Used for lock bolt connection.
Flange structure: Includes front, top, bottom, and rear four sides of flanges, used for spot welding connection with the C-pillar reinforcement plate and other components to ensure stiffness. Application scenario
It is mainly used for the locking mechanism installation area of the rear door (side door) or the rear trunk door (tailgate).
It is widely applied in car models such as sedans and SUVs, especially in those with high requirements for NVH performance (noise, vibration, and sound insulation roughness).
When the rear door lock mechanism fails and the door cannot be opened, it is necessary to prioritize checking the child lock. If the lock mechanism is confirmed to be damaged, it is necessary to seek professional repair or emergency opening.
Fault investigation and emergency handling
Check the status of the child lock and the central control: The most common reason for the rear door not opening is that the child safety lock was mistakenly activated. Check if the lever near the side lock of the door is in the locked position and return it to the unlocked position. Also, confirm if the central lock is on, and try using a spare key or have the driver press the unlock button.
Try simple self-rescue methods: If there is a jam due to low temperature or lubricant solidification, move the vehicle to the sunlight to heat it or pour warm water near the lock core (avoid water flowing into the vehicle).
Be cautious and try to cooperate with two people， one pulling the door from the outside and the other pushing from the inside， or gently tapping around the door lock， but avoid violent impact to prevent damage to the body.
Professional repair and solutions
Contact professional institutions： If self-rescue is ineffective， it is recommended to contact professional automotive repair personnel， 4S stores， or regular locksmith companies to assist in opening the door.
Replace the lock mechanism component： After confirming that the lock mechanism is damaged， usually， the interior panel needs to be removed to replace the new lock mechanism or repair the pull wire. It is not recommended to damage the lock mechanism yourself to avoid causing greater damage. Pay attention to preventing the lock mechanism from getting damp and rusting during daily maintenance and add an appropriate amount of lubricating oil regularly.
