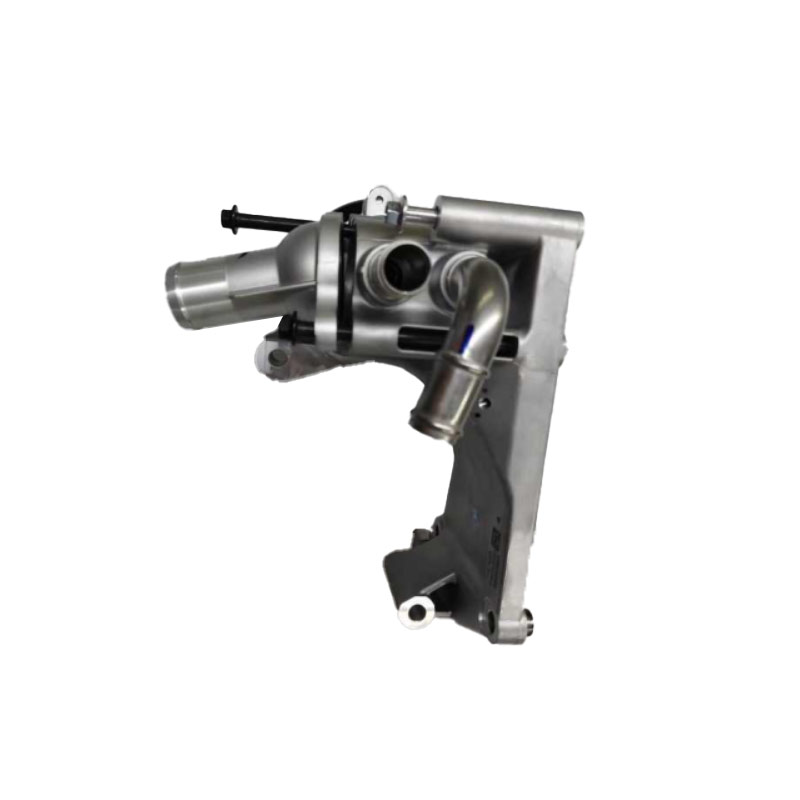

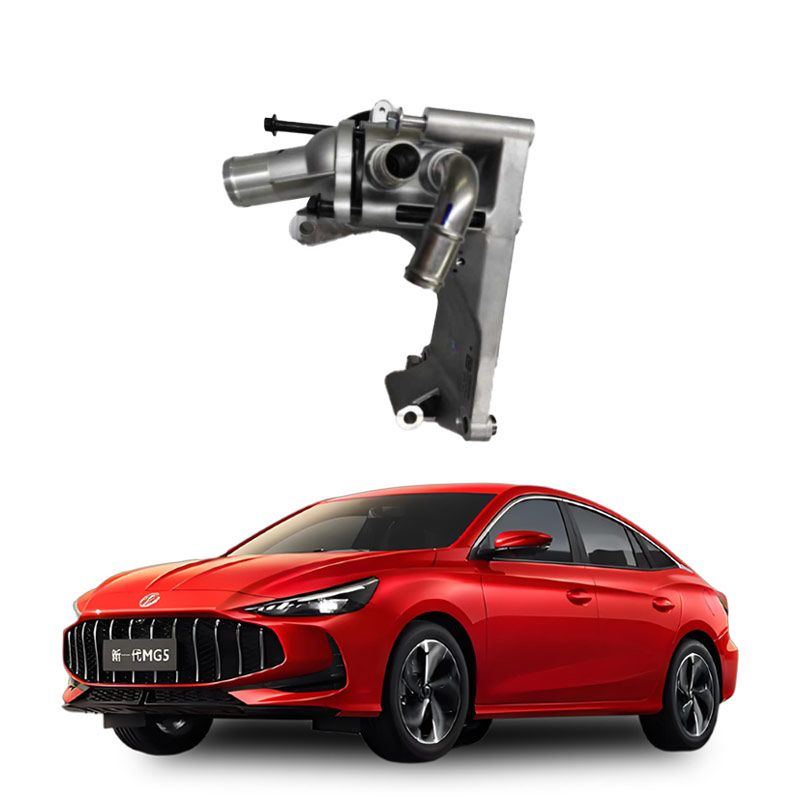

What is a car water pump
Youdaoplaceholder0 The automotive water pump is a core component of the automotive engine cooling system, responsible for driving the coolant to circulate between the engine and the radiator to maintain the normal operating temperature of the engine. Youdaoplaceholder0 It is usually composed of a water pump housing, impeller and other structures, and is driven to operate by the engine crankshaft or fan belt.
Definition and working principle
The water pump of a car is installed on the engine block and, together with the radiator, water pipes and other components, forms a cooling system. Its core function is to pump out the hot water in the engine block through centrifugal force and simultaneously pump in the cold water, achieving the circulation of coolant. When the engine is cold-started, the coolant only circulates within the engine (small circulation). When the temperature rises above approximately 95°C, the thermostat opens and hot water is pumped into the radiator, dissipating heat through air flow.
Replacement cycle and maintenance
Youdaoplaceholder0 Replacement cycle : It is generally recommended to check or replace it after 60,000 to 100,000 kilometers of driving. If the water pump is driven by a timing belt (such as in some German/Japanese models), the water pump should be checked simultaneously when replacing the timing belt to save labor costs.
Youdaoplaceholder0 Maintenance measures : Replace high-quality antifreeze every two years or 40,000 kilometers to prevent scaling and corrosion of the impeller; Regularly check the belt tension to prevent it from being too loose and increasing the load on the water pump.
Fault signal
Immediate maintenance is required in the following situations:
Abnormal coolant: Frequent replenishment or pink/green water stains around the water pump (seal failure) are found.
Abnormal noise issue: Continuous sharp friction sounds or metal scraping sounds in the engine compartment (bearing wear or loose impeller).
Abnormal temperature: The water temperature gauge frequently alarms or the coolant "boils over" (the circulation capacity decreases).
The core function of the car water pump is to pressurize the coolant to ensure its circulation in the engine cooling system, thereby effectively removing the engine heat, preventing the engine from overheating , and maintaining the normal operating temperature of the engine.
Main function and working principle
The automotive water pump is the core component of the cooling system, and its functions include:
Youdaoplaceholder0 To prevent engine overheating : pressurize the coolant to circulate between the engine block, cylinder head and other components and the radiator, continuously removing heat and avoiding high temperature damage to the engine.
Youdaoplaceholder0 promotes efficient coolant flow : pressurize the coolant and send it into the engine water jacket to reduce air resistance, ensure stable coolant flow and pressure, and improve heat dissipation efficiency.
Youdaoplaceholder0 Maintaining engine performance : This is crucial by stabilizing the operating temperature, enhancing combustion efficiency, reducing emissions, and extending engine life, especially during high-load operation.
The working principle is based on centrifugal force to achieve circulation:
The engine drives the water pump impeller to rotate through the pulley, and the coolant is sucked into the center of the impeller.
Under the action of centrifugal force, the coolant is thrown towards the edge of the shell to form pressure and flows out from the water outlet. A low-pressure area is formed at the center of the impeller, and the coolant in the radiator is drawn in under the pressure difference, achieving a reciprocating circulation.
Fault Impact and Maintenance
A faulty water pump can lead to a decline in cooling performance, engine overheating, coolant leakage or abnormal noise. It needs to be replaced in time to prevent engine damage. Regular inspections can extend the service life and ensure driving safety.
