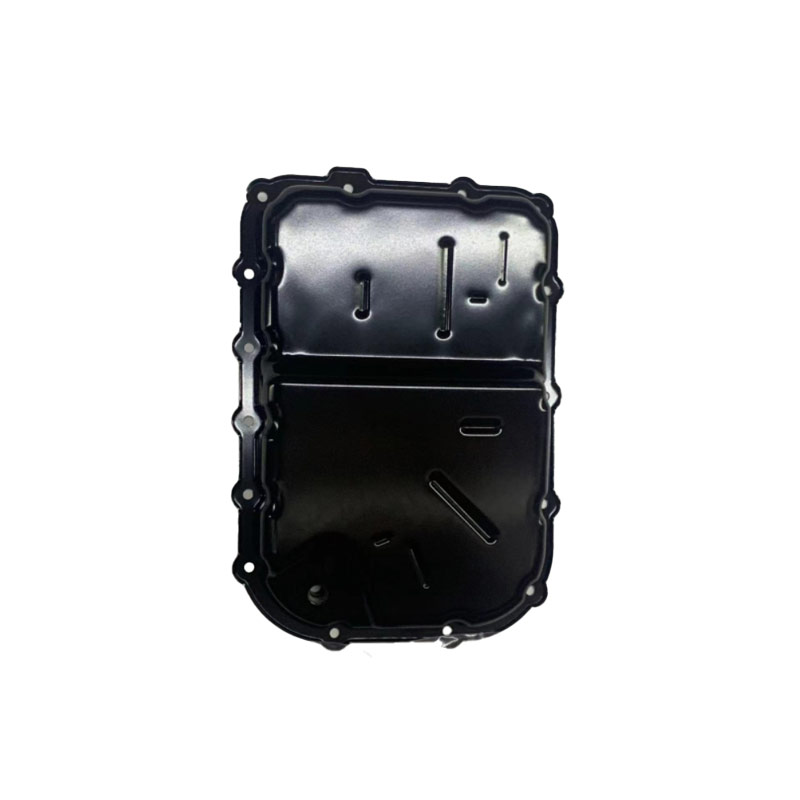

What material is the oil pan of a car transmission made of
There are mainly three types of materials for the oil pan of a car transmission:
Aluminum alloy material
Aluminum alloy oil pans feature light weight, good heat dissipation and strong corrosion resistance, making them suitable for vehicles traveling on urban roads. For instance, the transmission oil pan of the BMW X3 is made of aluminum alloy, which takes into account both durability and lightweight requirements.
Cast iron material
The cast iron oil pan has a stable structure and high strength, making it suitable for high-temperature or high-load working conditions. For instance, the transmission oil pan of the Audi A4 is made of cast iron, which meets the demands of complex road conditions.
Plastic material
Plastic oil pans (such as PA66 engineering plastic) are low in cost and light in weight, but they are prone to deformation at high temperatures. Some models (such as the transmission oil pan of the BMW X3) adopt a differentiated design, using only plastic in non-core components to reduce costs.
The core function of the transmission oil pan is to store and seal the transmission oil, assist in heat dissipation, prevent impurities from entering, and collect lubricating oil to prevent oxidation , ensuring that the transmission operates efficiently at an appropriate temperature and in a clean environment.
Core function
Youdaoplaceholder0 Storage and sealing of transmission fluid : Serve as a stable container to store transmission fluid, ensuring an adequate supply to the lubrication system and preventing leakage through a sealed structure.
Youdaoplaceholder0 Auxiliary cooling : helps dissipate the heat generated by the operation of the transmission, lower the oil temperature, and maintain an appropriate working temperature.
Youdaoplaceholder0 Prevent impurities from entering and protect lubricating oil : Seal the crankcase to prevent external impurities from entering the interior; Collect the lubricating oil flowing back from the friction surface, settle the metal debris and prevent oxidation and deterioration.
The main manifestation of transmission oil pan faults is oil leakage. The common causes and treatment methods are as follows:
Common causes
Youdaoplaceholder0 Aging/damage of the gasket : The main cause of oil leakage is that the gasket of the oil pan fails to seal due to aging or damage.
Youdaoplaceholder0 Loose screws or failed seals : The connecting screws of the oil pan are not tightened or the sealing components fail, causing oil to seep out from the gaps.
Youdaoplaceholder0 Oil seal aging : The elasticity of the oil seal weakens, leading to a decline in sealing performance and causing oil leakage.
Youdaoplaceholder0 Abnormal internal pressure of the transmission : Excessive internal pressure may force the oil to leak from the oil pan.
Processing method
Youdaoplaceholder0 Replace sealing parts : If the problem lies with the gasket, screw or oil seal, the damaged parts (such as the gasket, screw or oil seal) need to be replaced.
Youdaoplaceholder0 Replace the oil pan : If the oil pan itself has cracks or damage, it needs to be replaced as a whole.
Youdaoplaceholder0 Check and tighten the connecting parts : re-tighten the loose parts to ensure sealing.
Youdaoplaceholder0 Adjust the transmission pressure : Check for abnormal internal pressure issues (professional maintenance is required).
It is recommended to contact professional maintenance personnel promptly upon discovering oil leakage to prevent abnormal wear of the transmission due to oil deficiency.
Whether the transmission oil pan can still be used after damage depends on the specific situation:
Minor injury
If the oil pan is only slightly scratched and there are no cracks or oil leakage, and the appearance is not obviously damaged, it usually does not affect its use.
Severe injury
If cracks, oil leakage or structural damage occur in the oil pan, it must be replaced immediately. Oil leakage can lead to the failure of the transmission's lubrication and heat dissipation functions, which may cause shift faults, power transmission interruption and other problems.
It is recommended to carry out maintenance as soon as possible after discovering damage to the oil pan to avoid losing the big picture over small gains.
