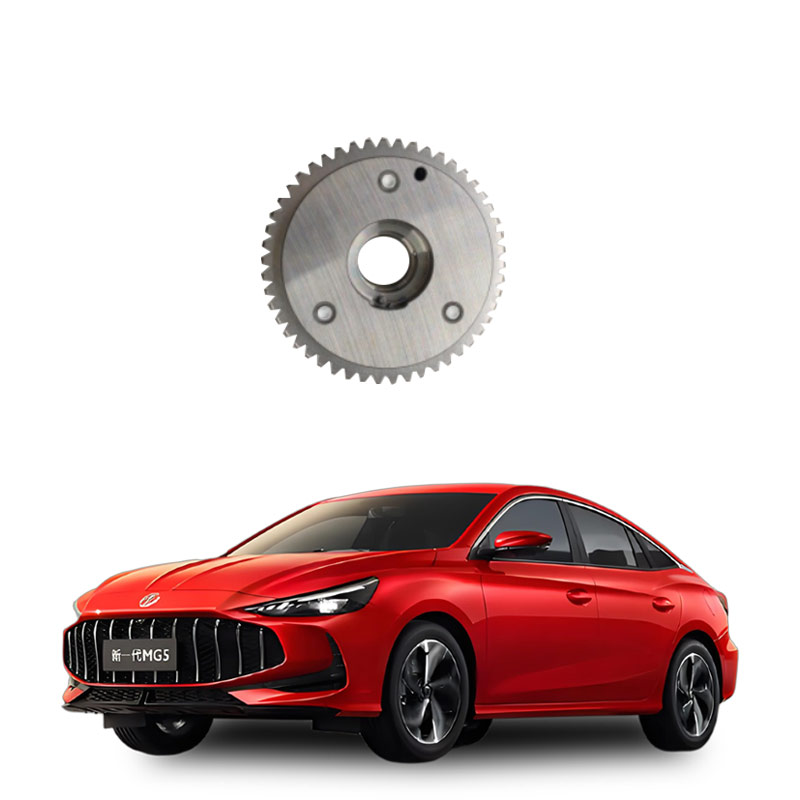

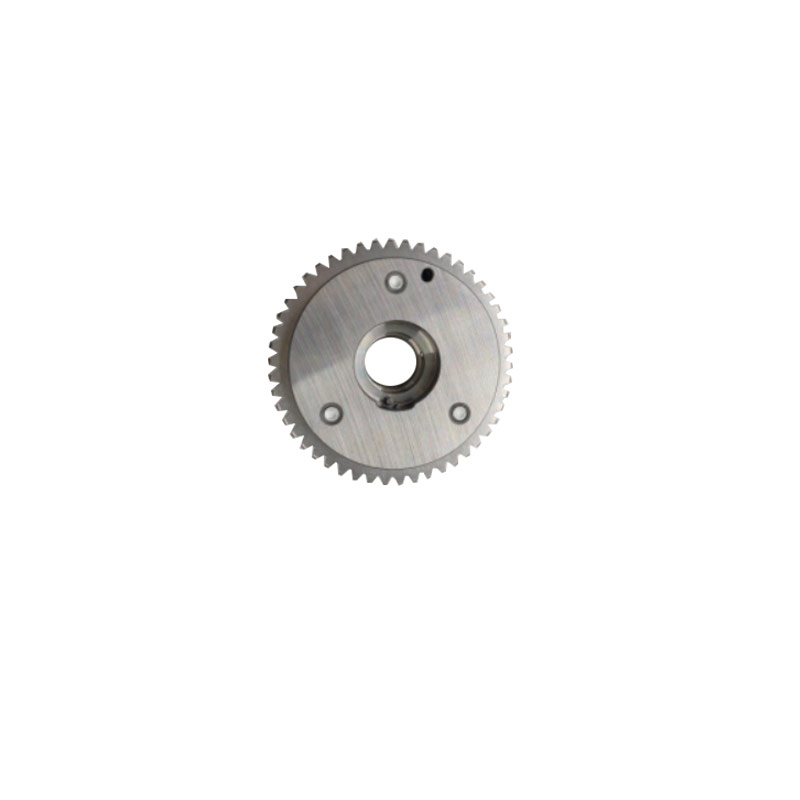

What is a car phase regulator
The automotive phase regulator is a device that changes the valve timing by adjusting the phase Angle and is mainly used to optimize engine performance. Its core function is to adjust the opening and closing time of the valves according to the engine's speed and load, thereby enhancing power output and fuel economy.
Structure and working principle
A phase regulator is typically composed of a phase regulator body, a camshaft sprocket, a motor, etc., and the phase of the camshaft is adjusted through a hydraulic system or motor drive. For instance, an electric phase regulator connects the camshaft and sprocket through a three-axis speed change mechanism, and the motor drives the adjustment of the phase difference to achieve dynamic adjustment of valve timing.
Main application scenarios
It is mainly used in variable valve timing systems (such as VVT), covering the requirements of different engine operating conditions. For instance, an intake phase regulator can optimize combustion efficiency, while an exhaust phase regulator can reduce exhaust gas interference.
Automotive phase modulators are mainly used to change the parameters of the resonant circuit by modulating the signal, causing a phase shift in the carrier signal to form a phase-modulated wave. They are mainly used for signal modulation and transmission in power systems.
Core function
Youdaoplaceholder0 Signal modulation : By adjusting parameters such as inductance and capacitance of the resonant circuit, the phase of the carrier signal is changed to achieve phase modulation of the signal.
Youdaoplaceholder0 circuit control : It is used in power systems to control voltage stability, for example, maintaining the output voltage of a generator at around the rated value (such as 14V) to ensure the normal operation of electrical equipment.
Youdaoplaceholder0 protection function : When excessive charging current is detected or reverse flow occurs, the circuit is quickly cut off to prevent overcharging of the battery or damage to the equipment.
The difference from a car regulator
Phase regulators focus on signal processing and circuit control, while automotive regulators are more dedicated to voltage stability and overcurrent protection in power systems. The application scenarios of the two are different, but both involve circuit parameter regulation and protection mechanisms.
The working principle of an automotive phase regulator is mainly based on a hydraulic system or motor drive. By adjusting the relative position between the camshaft and the crankshaft, the valve timing (i.e., the time when the valves open and close) is changed.
The principle of hydraulic phase modulators
Take the side-mounted OCV VVT system as an example. Its core components are the phase regulator and the oil control valve (OCV). The phase regulator adjusts the relative position between the camshaft sprocket and the rotor through the hydraulic chamber, and the oil control valve controls the hydraulic pressure according to the engine operating conditions. When the load is low, close the intake valve in advance; when the load is high, delay closing the intake valve to optimize power output.
The principle of an electric phase regulator
The electric phase regulator adopts a three-axis structure: the first axis is connected to the camshaft, the second axis is driven by the motor, and the third axis is connected to the sprocket. The motor achieves phase regulation by adjusting the speed difference. When the positive timing Angle is fixed, the three axes rotate synchronously. When adjusting the phase, the motor drives the shaft to accelerate or decelerate.
Both types require sensors to monitor the positions of the crankshaft and camshaft, and control the actions of the actuator through the ECU.
Faults in the car regulator (usually referring to the generator regulator) can lead to abnormal voltage, difficult starting and other problems. The following are the specific manifestations and causes:
Common phenomena
Youdaoplaceholder0 voltage anomaly
Excessive power generation can lead to overcharging of the battery, with the voltage possibly exceeding 14V, accelerating battery aging and even causing damage. When the power generation is insufficient, the voltage may be lower than 10V, resulting in difficult start-up and weak acceleration.
Youdaoplaceholder0 battery-related faults
If the battery indicator light is abnormal (constantly on or flashing), the battery life will be shortened. In severe cases, it may not be able to store electricity.
Youdaoplaceholder0 engine performance decline
If the engine shakes, accelerates weakly or stalls directly, it needs to be inspected and repaired in time.
Cause of malfunction
Youdaoplaceholder0 voltage fluctuation
Unstable output voltage of the generator (such as fluctuations in diesel engine speed and large changes in load) causes the regulator to adjust frequently, accelerating the aging of components.
Youdaoplaceholder0 Excessive mechanical load
Long-term overloading operation (such as idling or oil leakage into the generator area) increases the working load of the regulator.
Youdaoplaceholder0 component aging
The internal transistors of the regulator (such as FETs, Darlington transistors) are broken down or open-circuited, resulting in voltage loss of control.
