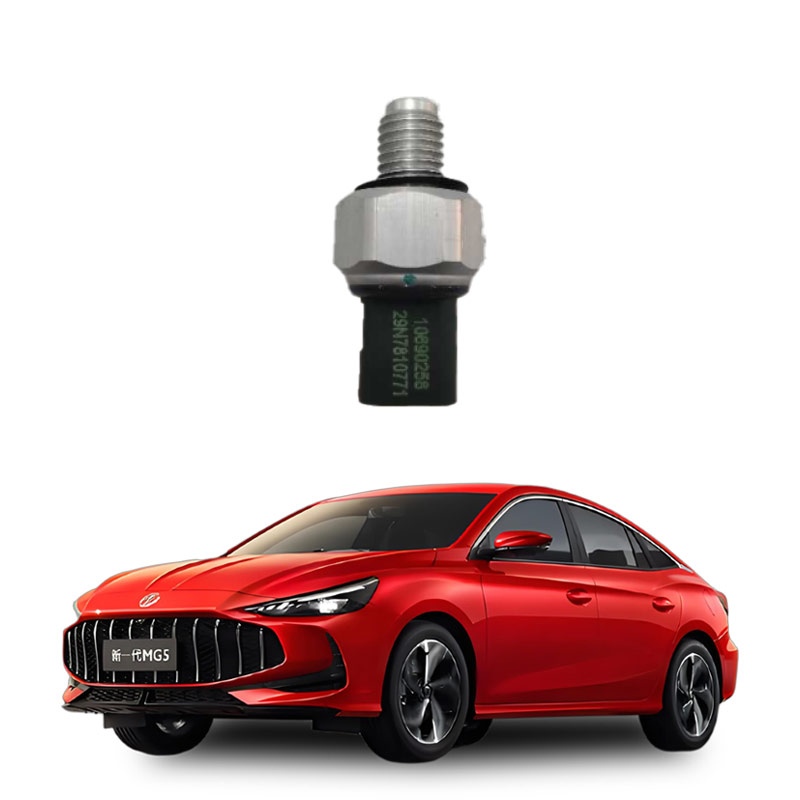

The function of the oil sensor plug in a car
The core function of the automotive oil sensor plug (i.e., the oil pressure sensor) is to detect the engine oil pressure in real time and feed the data back to the control system to ensure the normal lubrication, heat dissipation and sealing of the engine, and prevent excessive wear or failure caused by abnormal pressure ; When the pressure is insufficient or too high, it will trigger the dashboard alarm light to alert the driver.
Core functions and working principles
The oil sensor plug is installed on the main oil passage of the engine. By monitoring the pressure from the oil pump to the oil passage, it ensures that the oil pressure is within a safe range (usually 0.3-0.5 MPa). Its working principle is based on the conversion of pressure into electrical signals:
Youdaoplaceholder0 Pressure detection : Thick-film resistors or ceramic elastomers (such as Wheatstone Bridges) are used to sense pressure changes. When under pressure, the resistance value changes, and an electrical signal proportional to the pressure is output.
Youdaoplaceholder0 Signal processing : Electrical signals, after amplification and filtering, are transmitted to the on-board computer to control engine operation or trigger alarms.
The impact of faults and the importance of maintenance
Youdaoplaceholder0 Fault manifestation : When damaged, the oil warning light remains constantly on and the pressure cannot be monitored in real time. If abnormal pressure is not detected, it may lead to engine bearing seizure, seal failure or scrapping.
Youdaoplaceholder0 Maintenance key : Regular inspection is required to prevent failure due to aging, damaged rubber rings or high-temperature environments; When a fault occurs, it should be replaced in time to prevent serious damage to the engine.
The core function of the automotive oil sensor (i.e., the oil pressure sensor) is to detect the engine oil pressure, transmit the pressure data to the instrument panel through electrical signals, and control the alarm system at the same time. Its working principle is as follows:
Detection and signal conversion
The oil sensor plug is installed on the main oil passage of the engine or the oil filter seat, and it senses the pressure changes in the oil passage through an internal pressure-sensitive element. When the engine is running, the pressure signal is converted into an electrical signal, which is amplified by the signal processing circuit and then transmitted to the oil pressure gauge or instrument panel. The oil pressure gauge converts the pressure value into a pointer position display by changing the current ratio of the internal coil. Youdaoplaceholder0.
Alarm function
When the oil pressure is detected to be lower than the set value, the sensor plug will trigger the alarm circuit to light up the alarm light on the dashboard, reminding the driver to replenish the oil or inspect the system in time.
Structural composition
It is mainly composed of thick-film pressure sensor chips, signal processing circuits (including power supply circuits, temperature compensation circuits, amplification circuits, etc.), shells and leads. Among them, the signal processing circuit is responsible for key functions such as stable power supply, noise filtering, and signal calibration.
When the oil sensor plug (oil pressure sensor) is damaged, the most fundamental phenomenon is that the oil warning light remains constantly on and the oil status cannot be monitored in real time. This may lead to the triggering of the engine protection mechanism, performance degradation or serious mechanical failure.
Main phenomena and influences
Youdaoplaceholder0 indicator light abnormal :
The oil warning light and the engine failure light remain on continuously.
The instrument display is abnormal, such as the oil pressure value being fixed at 0.99 at idle speed and other abnormal values.
Youdaoplaceholder0 Performance and fault cues :
When the engine power and speed drop, it may automatically shut off to protect the engine.
The diagnostic instrument reads the fault code P01CA (the voltage of the oil pressure sensor is too high).
Youdaoplaceholder0 potential risk :
Failure to warn of insufficient engine oil or excessive pressure may lead to engine cylinder pulling, bearing bush damage or even scrapping.
If the sealing rubber ring is damaged, it may cause oil leakage.
