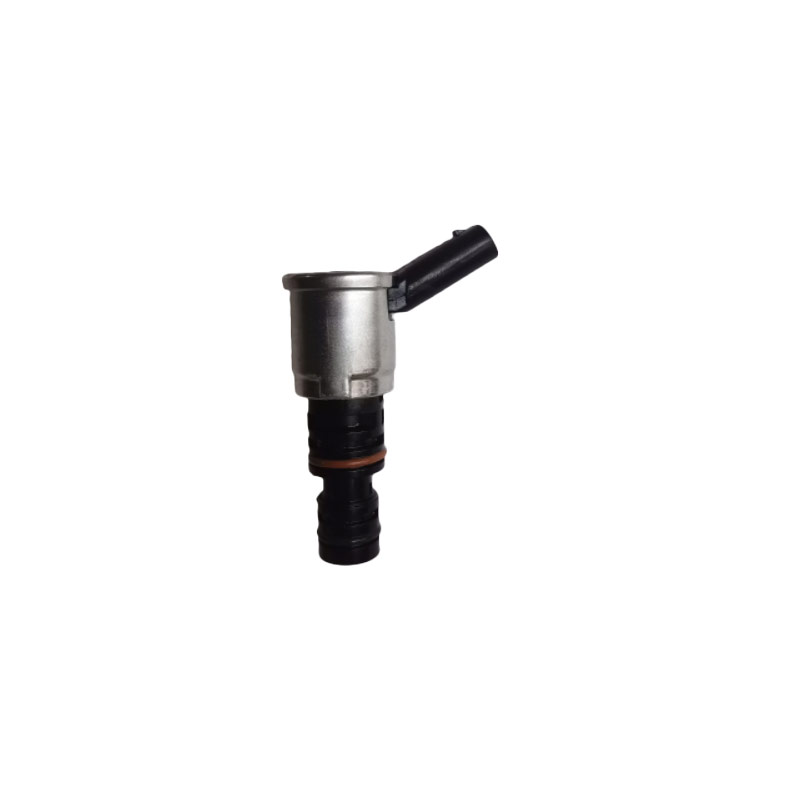

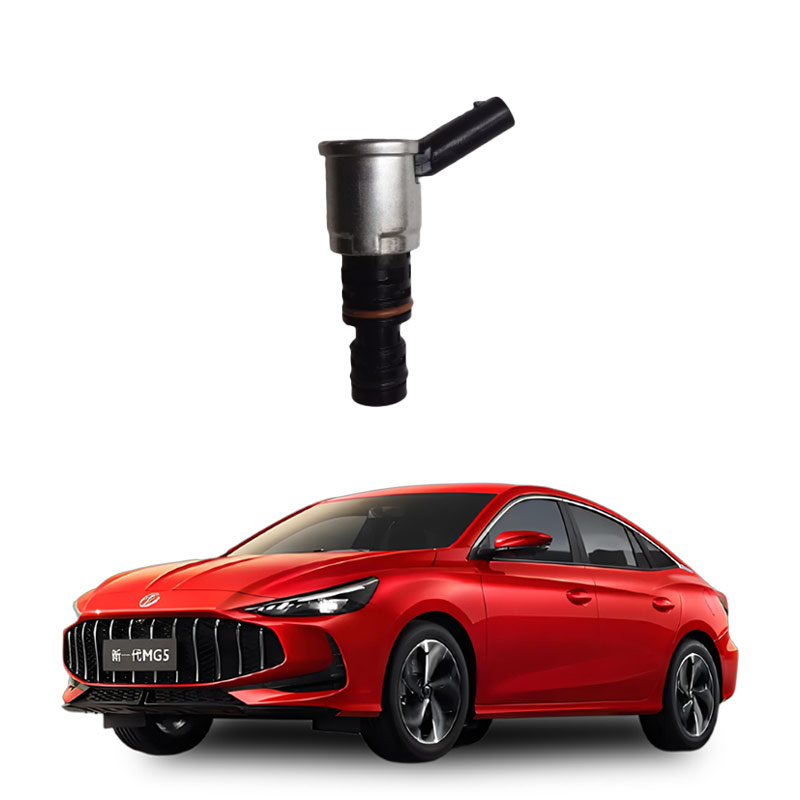

The function of the flow control valve for automotive oil pumps
The main function of the flow control valve for the automotive oil pump is to limit the maximum flow of the oil pump , so as to prevent excessive flow of the oil pump when the engine speed is too high, which may lead to increased power loss or abnormal rise in oil temperature.
Specific functions
This control valve is usually installed inside the oil pump and ensures the pressure stability of the oil pump at different speeds by regulating the flow rate. When the engine is idling, the oil pump flow rate is sufficient to meet the requirements of the steering system. As the rotational speed increases, if the flow rate is not effectively controlled, it may lead to excessive power consumption of the oil pump and overheating of the lubrication system.
The difference from solenoid valves
Solenoid valves are mainly used in the electronic control systems of engines and gearboxes (such as ECUs and TCUs). They control the opening and closing of valves by powering on or off, achieving precise fuel or air management. They belong to a different functional category from the flow control of oil pumps.
The working principle of the flow control valve for automotive oil pumps mainly relies on the pressure regulation mechanism and the diaphragm movement principle. It maintains the stability of fuel pressure by dynamically adjusting the valve opening.
Core working principle
Youdaoplaceholder0 Pressure regulating mechanism : The oil pump motor sucks fuel from the oil tank and pressurizes it to deliver it to the oil supply pipe. The pressure limiter (or inspection valve) controls the return fuel volume based on the oil pressure signal. When the system pressure is higher than the set value, the valve opens to increase the return oil volume. When the pressure is insufficient, the return oil is reduced to maintain a stable oil supply pressure.
Youdaoplaceholder0 diaphragm movement principle : The diaphragm flow control valve senses pressure changes through the diaphragm: when the vacuum degree of the intake manifold changes, the diaphragm moves to drive the valve opening to change, thereby regulating the return oil volume. For instance, a decrease in vacuum (an increase in engine load) can lead to diaphragm compression, a reduction in valve opening, and a decrease in oil return volume to maintain pressure balance.
Regulation under different working conditions
Youdaoplaceholder0 low speed/medium and small load : The oil pump operates at a low speed, the valve opening is small, and the fuel pressure is high.
Youdaoplaceholder0 High speed/heavy load : The oil pump operates at high speed, the valve opening increases, and the return oil volume increases to reduce the system pressure.
The damage of the oil pump flow control solenoid valve will affect driving , which may cause problems such as weak acceleration, idle vibration, and abnormal engine noise. In severe cases, it may even lead to safety hazards and requires immediate repair to prevent further damage to the engine.
Main impacts and symptoms
The oil pump flow control solenoid valve is responsible for regulating the oil circuit pressure. Its damage will directly interfere with the engine fuel supply system, specifically manifested as:
Youdaoplaceholder0 Abnormal power output : weak acceleration, no movement when accelerating, or slow power response. When stepping on the accelerator, there may be jolts or brief pauses.
Youdaoplaceholder0 Decreased operational stability : The engine shakes significantly at idle, and unstable power output may occur during driving.
Youdaoplaceholder0 Engine condition deterioration : Accompanied by abnormal noises (such as metal friction sounds), long-term lack of repair may lead to engine overheating or accelerated wear.
Youdaoplaceholder0 Fuel consumption and emission issues : fuel efficiency decreases, fuel consumption increases, and emissions may exceed standards.
Cause and risk analysis
The solenoid valve regulates the oil pressure by controlling the opening and closing of the oil hole. Once damaged, the oil circuit becomes unbalanced, resulting in the engine oil being unable to be normally delivered to the key components of the engine. The risks of continuing to drive include:
Youdaoplaceholder0 Engine damage expansion : Abnormal oil pressure may cause wear of internal components such as pistons and cylinder blocks, significantly increasing maintenance costs.
Youdaoplaceholder0 Safety hazard : Sudden power interruption or vibration may affect the vehicle's handling, especially when driving at high speeds.
Suggestions for Coping
Youdaoplaceholder0 Immediately stop driving for inspection : Once the above symptoms occur, avoid long-distance driving and contact professional maintenance personnel to inspect the solenoid valve and oil circuit system.
Youdaoplaceholder0 Preventive maintenance : Regularly inspect the fuel lines (recommended every 100,000 kilometers) and use high-quality fuel to reduce the risk of blockage.
