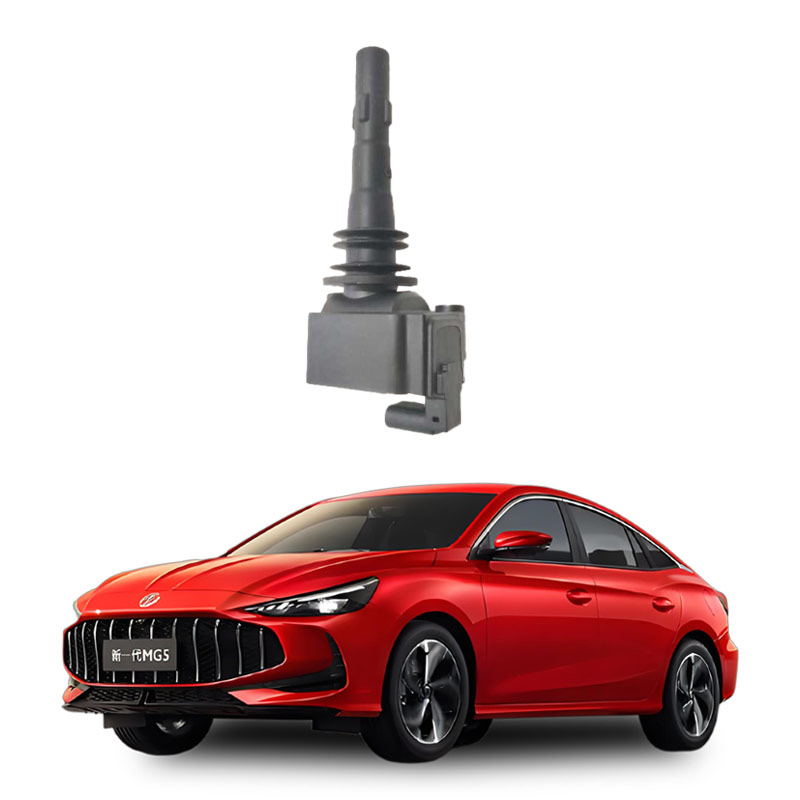

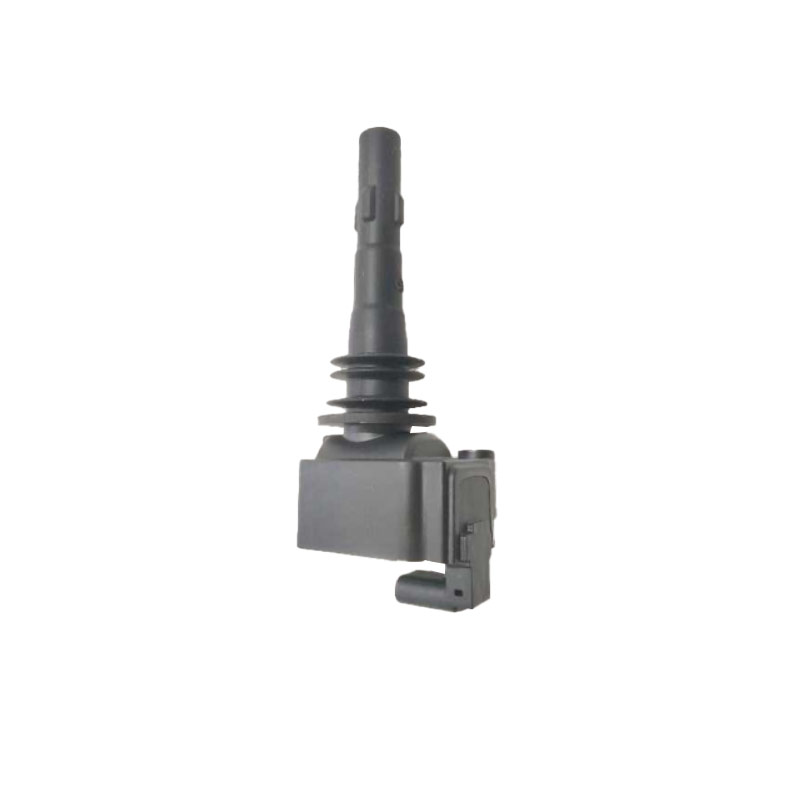

What is a car ignition coil
The ignition coil of a car is a key component in the car ignition system.
The ignition coil of a car is mainly responsible for converting the low voltage (usually 12 volts) provided by the vehicle battery into a high voltage (usually tens of thousands of volts) to generate a spark to ignite the fuel mixture in the engine cylinders. The ignition coil operates based on the principle of electromagnetic induction, converting low-voltage electricity into high-voltage electricity to ensure the normal operation and smooth combustion of the engine . The ignition coil of a car is mainly composed of the ignition coil and the switch device.
The reason why the ignition coil can convert the low-voltage electricity on the vehicle into high voltage is that it has the same form as a common transformer, and the turns ratio of the primary coil to the secondary coil is large. However, the working mode of the ignition coil is different from that of a common transformer. A common transformer operates continuously, while the ignition coil operates intermittently. It repeatedly stores and releases energy at different frequencies according to the different speeds of the engine.
When the primary coil is connected to the power supply, a strong magnetic field is generated around it as the current increases, and the iron core stores the magnetic field energy. When the switch device disconnects the primary coil circuit, the magnetic field of the primary coil rapidly decays, and a very high voltage will be induced in the secondary coil. The faster the magnetic field of the primary coil disappears, the greater the current at the moment of current disconnection, and the larger the turns ratio of the two coils, the higher the voltage induced by the secondary coil.
The core symptoms of a damaged ignition coil in a car include severe shaking of the body and engine at idle, weak and jerky acceleration during driving, abnormal increase in fuel consumption, rapid accumulation of carbon deposits, and engine misfire or difficulty in starting . These symptoms result from insufficient ignition energy leading to incomplete combustion.
The core symptoms of a damaged ignition coil in a car include severe shaking of the body and engine at idle, weak and jerky acceleration during driving, abnormal increase in fuel consumption, rapid accumulation of carbon deposits, and engine misfire or difficulty in starting . These symptoms result from insufficient ignition energy leading to incomplete combustion.
Main symptom manifestations
Youdaoplaceholder0 idle speed and driving abnormalities .
When idling, the vehicle body and engine shake violently, and the exhaust pipe emits intermittent exhaust gas accompanied by an abnormal "putt-putt" sound.
When the engine speed is lower than 2,500 RPM during driving, the acceleration is weak and the vehicle body jerks. When the speed exceeds 2,500 RPM, the shaking may ease, but the power remains unstable.
Youdaoplaceholder0 Power and combustion problems .
When accelerating sharply, the vehicle experiences obvious jolts, the throttle response is sluggish, and the power drops significantly when climbing slopes or overtaking.
Insufficient ignition energy of the spark plug leads to incomplete combustion, causing fuel consumption to increase by 20% to 30%, black smoke from exhaust and a pungent odor.
Youdaoplaceholder0 Mechanical damage and warning .
Carbon deposits rapidly accumulate on the spark plugs, valves and combustion chambers, and the spark plug electrodes turn black.
When an engine is missing a cylinder (one or more cylinders stop working), in severe cases, if two adjacent cylinders are missing simultaneously, it can lead to the inability to start.
The engine fault light on the dashboard may illuminate, indicating an abnormality in the ignition system.
Whether the ignition coils need to be replaced all at once depends on the vehicle's usage time and the current condition of the ignition coils. Youdaoplaceholder0 If the ignition coil has been in use for a short period of time (such as within 100,000 kilometers) and only has individual faults, usually only the damaged ones need to be replaced; However, if the engine has been in use for a long time (more than 100,000 kilometers), even if there is one malfunction, it is recommended to replace the entire engine to ensure its stable operation.
Change the decision-making basis and suggestions
Youdaoplaceholder0 The situation where only faulty coils are replaced : If the vehicle mileage is within 100,000 kilometers and only 1-2 ignition coils are faulty (such as engine shaking, acceleration jerks), while the other coils are working normally, the damaged parts can be directly replaced to save costs.
Youdaoplaceholder0 situations where it is recommended to replace all: : If the mileage exceeds 100,000 kilometers, even if only one coil fails, it is recommended to replace all four. Since other coils may be approaching the end of their service life under the same working environment, replacing them all can avoid secondary maintenance, reduce the risk of engine shaking or stalling, and ensure the balanced ignition energy of each cylinder.
If you want to know more, keep reading the other articles on this site!
