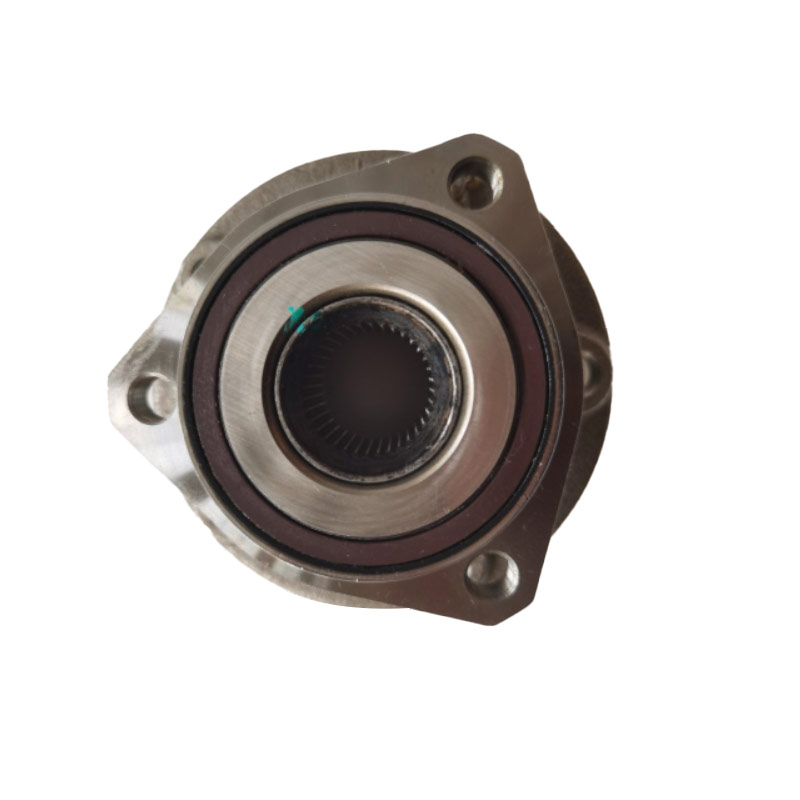

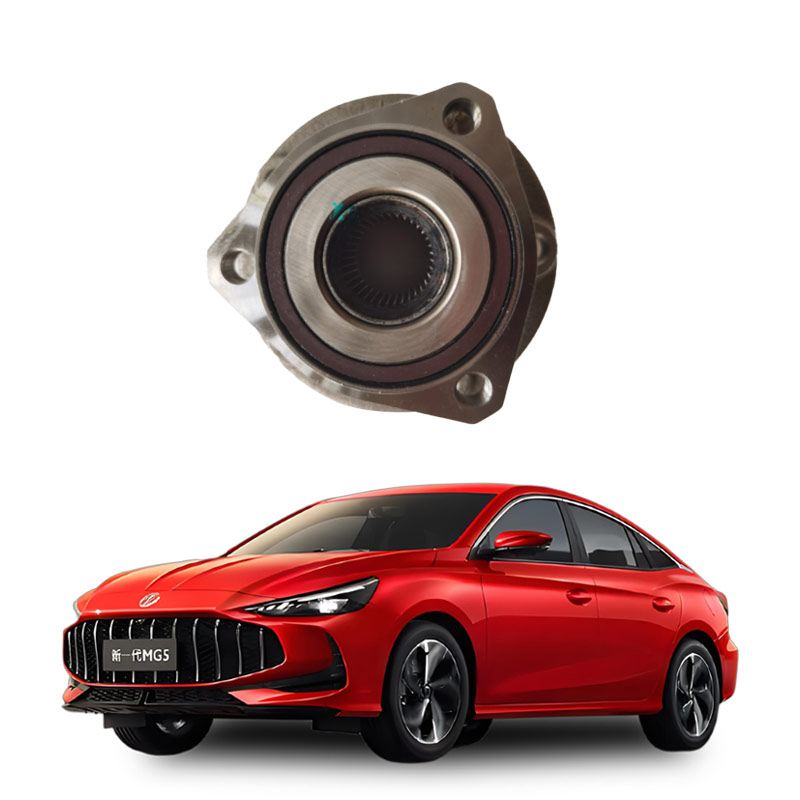

What kind of bearing is the front wheel bearing of a car
The front wheel bearing of a car is a hub bearing, mainly used to support the front wheels and bear axial and radial loads, while providing precise guidance for the rotation of the hub. The traditional structure is usually composed of two sets of tapered roller bearings or ball bearings, which are installed in the hub unit.
Structure and Function
The front wheel bearings need to simultaneously bear the radial (vertical direction) and axial (rotational direction) loads of the wheel to ensure the stable operation of the wheel hub. The traditional design uses a combination of two sets of tapered roller bearings or ball bearings, and the installation, lubrication and sealing processes are all completed on the automotive production line.
Damage manifestation
If the front wheel bearing is damaged, abnormal noises (such as continuous humming), steering wheel vibration, and abnormal tire wear may occur. Timely inspection and replacement are required.
The front wheel bearings of automobiles mainly undertake the following core functions:
Support the weight of the vehicle
The front wheel bearings need to withstand dual pressures in both axial and radial directions, support the weight of the vehicle itself and the load, and ensure driving stability.
Reduce friction and lubrication
The interior is filled with grease to reduce the friction between the wheels and the vehicle body, improving handling and fuel efficiency.
Precise hub guidance
Guide the wheel hub to rotate along the predetermined trajectory, reduce tire wear, and ensure the accuracy of straight driving and steering.
Improve driving stability
Through shock absorption and balance adjustment, it alleviates road impact and enhances driving comfort, especially performing outstandingly in complex road conditions.
Simplify assembly and maintenance
Modern design has optimized the installation process, reduced maintenance costs, and facilitated regular inspections and troubleshooting.
When the front wheel bearing of a car is damaged, phenomena such as continuous "buzzing" abnormal sounds during driving, steering wheel shaking, unstable vehicle body at high speed, increased tire noise, uneven tire wear, abnormal rise in wheel hub temperature, vehicle deviation and decreased braking performance will occur. Timely inspection and repair are necessary to ensure driving safety.
Main symptoms and detection methods
Youdaoplaceholder0 Abnormal noise and noise : the higher the vehicle speed, the more obvious it becomes, and it persists even when coasting in neutral. Steering or bumpy roads may intensify.
Youdaoplaceholder0 Abnormal handling : The steering wheel shakes frequently (significantly at 60-80km/h), the vehicle body shakes or veers off course.
Youdaoplaceholder0 tire and temperature issues : wavy wear on the tread, with a difference of more than 2mm on both sides; The rims are hot to the touch after driving (with a temperature difference of more than 40℃).
Youdaoplaceholder0 self-check method :
Jack test: Push and pull the tire. If the axial clearance is greater than 1mm or there is a rustling sound when rotating, it indicates damage.
Decibel test: When traveling at a constant speed of 60km/h, the noise in the vehicle compartment exceeds 65 decibels or surges sharply in specific frequency bands (1000-1500Hz).
Maintenance suggestions
Damaged bearings must be replaced. Original factory parts (such as SKF, NTN) should be preferred, and counterfeit parts or refurbished parts should be avoided. Professional press installation is required. Hammering operations are strictly prohibited.
When the front wheel bearings of a car are damaged, whether to replace one or a pair depends on a comprehensive judgment based on the vehicle mileage, driving environment and cause of damage : if the vehicle mileage is short (e.g., less than 100,000 kilometers), the road conditions are good and only one side is damaged, they can be replaced separately. If the vehicle is old (more than 5 years old), has a long mileage (more than 100,000 kilometers), or is frequently driven on bad road conditions, it is recommended to replace it in pairs to avoid potential safety hazards.
The applicable conditions for replacing a bearing
It is feasible to replace the damaged bearing alone in the following circumstances:
Youdaoplaceholder0 Short vehicle mileage : If the mileage is less than 100,000 kilometers, it indicates that the overall wear of the bearings is relatively light.
Youdaoplaceholder0 Good driving environment : mainly driven on flat urban roads, without frequent impacts or bumps.
Youdaoplaceholder0 Unilateral clear fault : one side is damaged only due to an accident, local impact or abnormal noise, while the other side is found to be normal after inspection.
This method can save about 50% to 70% of maintenance costs, but it is necessary to ensure that the new bearings are of the same brand and model as the old ones to avoid performance differences.
It is recommended to replace a pair of bearings
The following scenarios are recommended to be replaced in pairs to ensure safety:
Youdaoplaceholder0 High-mileage or old vehicles : Vehicles with a mileage of over 100,000 kilometers or an age of more than 5 years have a high risk of synchronous aging of the bearings on both sides.
Youdaoplaceholder0 Harsh driving environment : Often driving on bumpy roads such as potholes and dirt roads, with uneven loads on both sides of the bearings.
Youdaoplaceholder0 four-wheel drive or symmetrical design models : such as Audi quattro, etc. The left and right bearings are evenly stressed, and damage on one side may indicate hidden wear on the other side.
Replacing in pairs can prevent problems such as inconsistent front wheel speeds, vehicle deviation or uneven tire wear caused by differences in friction coefficients.
