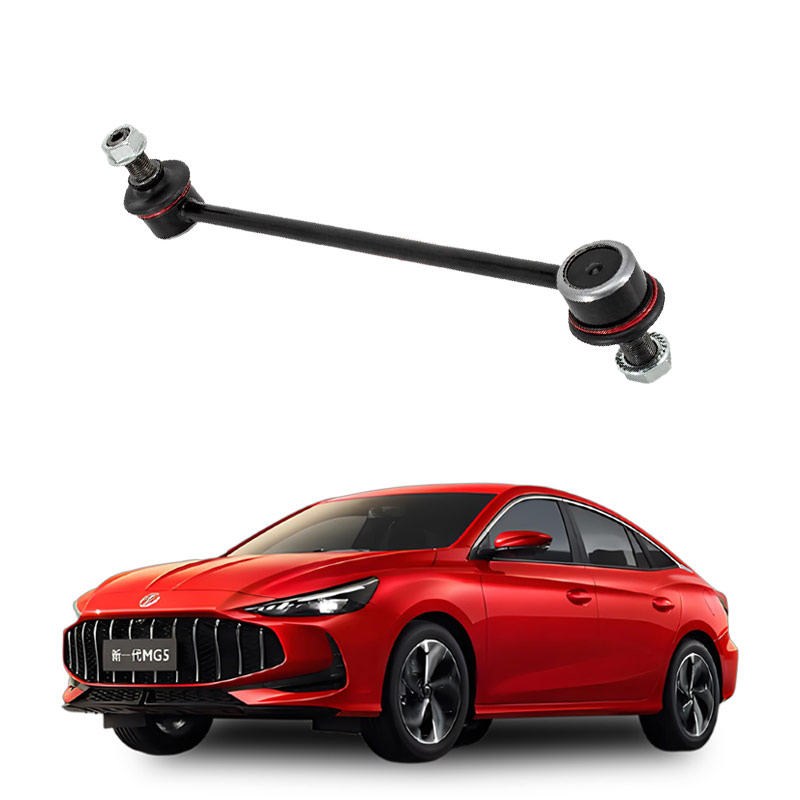

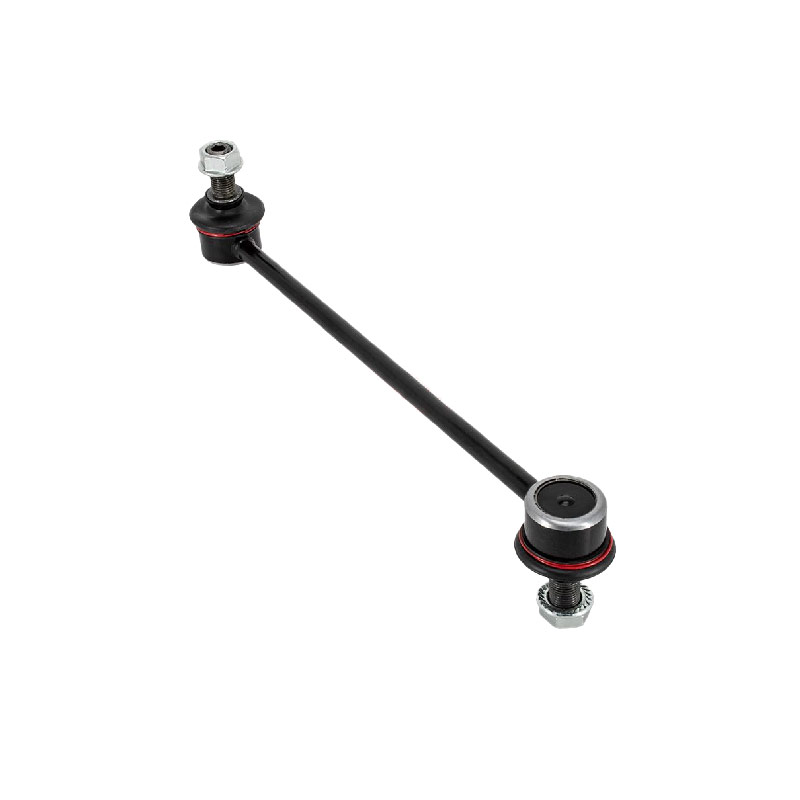

The function of the connecting rod of the front stabilizer bar
The core function of the front stabilizer bar connection rod is to prevent excessive lateral roll of the vehicle body when turning, and to keep the vehicle body balanced as much as possible , thereby improving the vehicle's handling stability and driving safety.
Working principle and core functions
The front stabilizer bar connecting rod is a key component of the stabilizer bar system, usually made of high-strength steel, and connects the stabilizer bar with the suspension components. Its mechanism of action is based on the principles of elasticity mechanics:
When a vehicle turns, the centrifugal force causes the body to roll sideways, with the outer suspension compressing and the inner suspension stretching, resulting in inconsistent deformations on both sides of the suspension.
The connecting rod transmits this deformation force, causing the stabilizer bar body to twist and generate a reverse elastic force: the outer side exerts downward pressure and the inner side pulls upward, thereby offsetting the roll moment and reducing the vehicle body's tilt Angle.
When driving in a straight line or on a flat road, the connecting rods do not function when the suspensions on both sides move synchronously.
Importance and Impact
Youdaoplaceholder0 Enhance handling stability : Reduce roll amplitude (measured to be over 40%), improve the body response speed when changing lanes at high speed and cornering, and lower the risk of fishtailing or loss of control.
Youdaoplaceholder0 Optimize safety and comfort : Balance the load on both wheels, improve ride smoothness on bumpy roads, and prevent rollover accidents in extreme situations.
Youdaoplaceholder0 affects steering characteristics : Adjusting the stiffness of the front stabilizer bar connection rod can change the vehicle's steering tendency - increasing the front stiffness will enhance the understeer characteristics and improve the handling accuracy.
Faults and Maintenance
Youdaoplaceholder0 Common problems : Aging of the rubber sheath (about 65% failure rate for 3-year vehicles) and broken connecting rods (12% probability in extreme road conditions) may lead to increased roll, loss of steering control or abnormal noise.
After replacing the front stabilizer bar connection rod assembly, four-wheel alignment is usually required. This operation involves the disassembly and assembly of suspension system components, which may cause the tire Angle to deviate, and subsequently lead to problems such as uneven tire wear or vehicle deviation.
Is it necessary to locate immediately
If there is no steering wheel deviation, vehicle veering off course or abnormal tire wear after replacement, the positioning can be postponed. However, if the following situations occur, it is recommended to make timely adjustments:
The steering wheel is not straight or it is difficult for the steering wheel to automatically return to its correct position while driving
The vehicle deviated significantly from its original lane when traveling in a straight line
Abnormal tire wear (such as severe wear on one side)
Suggested processing procedure
After replacement, test drive for about 300 kilometers first to observe if there is any deviation, abnormal noise or shaking
If the above problems occur, four-wheel alignment correction is required
If no problem is found, the location may not be determined for the time being, but the tire wear condition should be checked regularly
Damage to the connecting rod of the front stabilizer bar of a car can lead to a decrease in vehicle stability and cause the following problems:
Decreased driving stability
After damage, the vehicle will show obvious roll and sway when turning or on bumpy roads. In severe cases, it may affect handling safety.
Uneven tire wear
Due to the weakened roll suppression ability, the contact between the tires and the ground is uneven, resulting in accelerated wear and shortened service life.
The burden on the suspension system has increased
Suspension components need to bear additional impact loads, accelerating the wear of other suspension system parts (such as shock absorbers, springs, etc.).
The risk of accidents increases
Insufficient stability can easily lead to rollover, especially when driving at high speed, it may cause traffic accidents due to loss of control.
It is recommended to repair this component in a timely manner once it is found to be damaged. Usually, the damaged connecting rod needs to be replaced and the related components such as the rubber sleeve and dust cover should be inspected.
