What is the ball cage inside the front half shaft of a car
The ball cage inside the front half shaft of a car is a type of constant velocity universal joint, located inside the half shaft assembly. Its main function is to smoothly transfer the power output by the transmission to the wheels, while absorbing the displacement changes caused by wheel jumping or steering, ensuring the stability of power transmission and ride smoothness.
Structure and Function

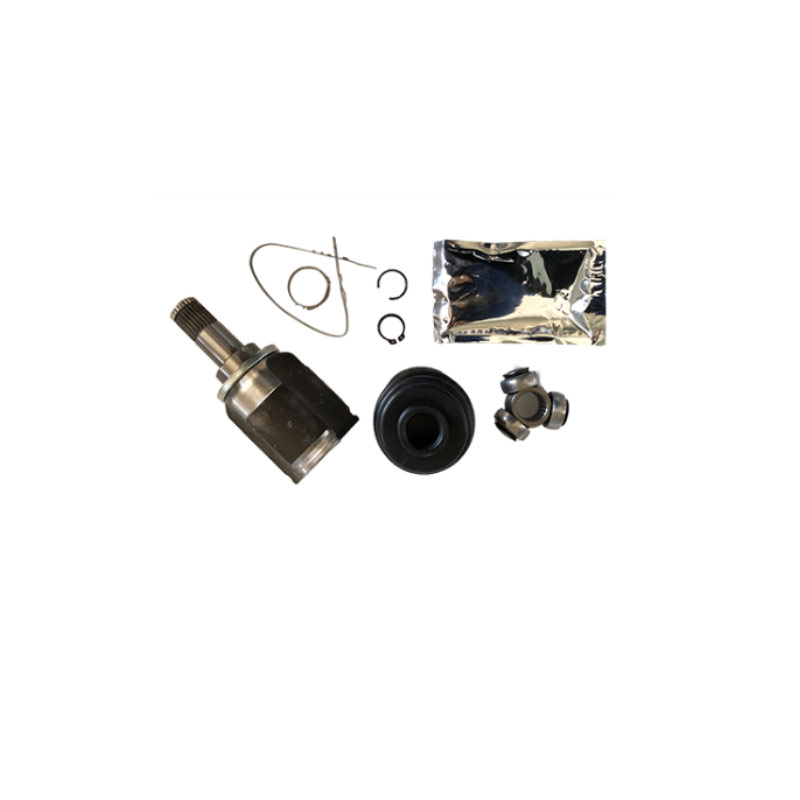

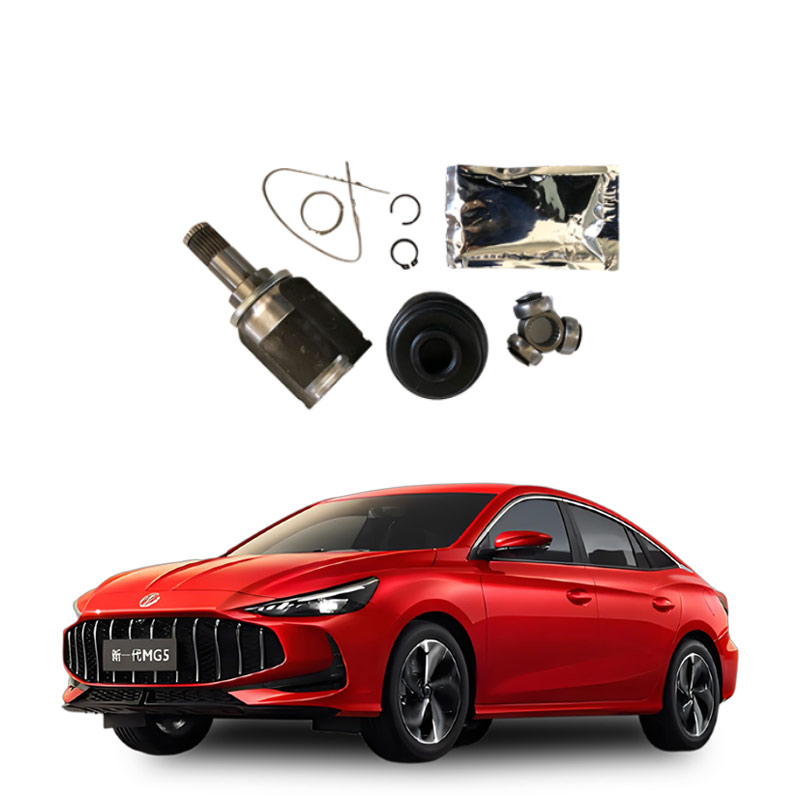

The inner ball cage is usually composed of a bell-shaped shell, steel balls, a cage, a dust cover and grease. Its core function is to allow the half shaft to maintain constant speed transmission at any Angle, especially when the vehicle turns, it can effectively reduce the fluctuation of power transmission.
Installation location
The inner ball cage is installed between the half shaft and the output shaft of the gearbox, and works in coordination with the outer ball cage to jointly complete the power transmission. The ball cage inside the front half axle is usually located at the front of the vehicle and is responsible for driving the front wheels.
Q&A
The inner ball cage is often in complex working conditions for a long time, which may cause abnormal noises, vibrations or power transmission interruptions and other problems. Regular inspection or replacement is required. For instance, frequent turns or abnormal noises when passing over speed bumps might be a sign of wear on the inner ball cage.
The core function of the ball cage (constant velocity universal joint) inside the front half shaft of a car is to smoothly transfer the power output by the transmission to the drive axle, ensuring the continuity and stability of power transmission when the wheels jump or turn. [1-4]
Analysis of Specific Functions
Youdaoplaceholder0 multi-angle power transmission
The inner ball cage connects the differential of the transmission to the drive axle. During vehicle steering or driving, it transmits power at different angles through steel balls and the cage, avoiding power interruption.
Youdaoplaceholder0 absorbs axial displacement
When the wheels jump up and down or turn, the inner ball cage compensates for the axial displacement through the rolling of steel balls inside the bell-shaped shell, ensuring that the power transmission path is always aligned.
Youdaoplaceholder0 dust-proof seal protection
The inner ball cage is wrapped with a dust cover to prevent dust and water stains from entering and causing lubrication failure, while also avoiding external impurities from affecting the transmission accuracy.
Maintenance Precautions
Youdaoplaceholder0 Lubrication management : The sealing performance of the dust cover should be checked regularly. Special high-temperature resistant grease (blue-black in color) should be replaced every two years or 40,000 kilometers.
Youdaoplaceholder0 Abnormal noise identification : When damaged, it will produce a "click-click" abnormal noise during acceleration or on bumpy roads. In severe cases, it may be accompanied by oil leakage or steering failure.
Damage to the ball cage inside the half shaft can lead to the following effects:
Driving shake
Damage to the inner ball cage can cause abnormal shaking of the vehicle during driving, affecting the smoothness and comfort of driving.
The steering wheel is stuck.
In severe cases, the steering wheel may fail to turn or even get stuck, leading to the failure of the steering function and increasing the driving risk.
Aggravated tire wear
Half shaft failure may cause uneven wear on the tires and shorten their service life.
The assist system is damaged.
Long-term lack of maintenance may cause damage to the power steering oil pump, affecting the ease of steering operation.
Abnormal noise from the chassis
Damage to the inner ball cage may cause abnormal noises when driving straight, affecting the driving experience.
It is recommended to carry out timely maintenance upon discovering any abnormalities to avoid causing greater losses.
