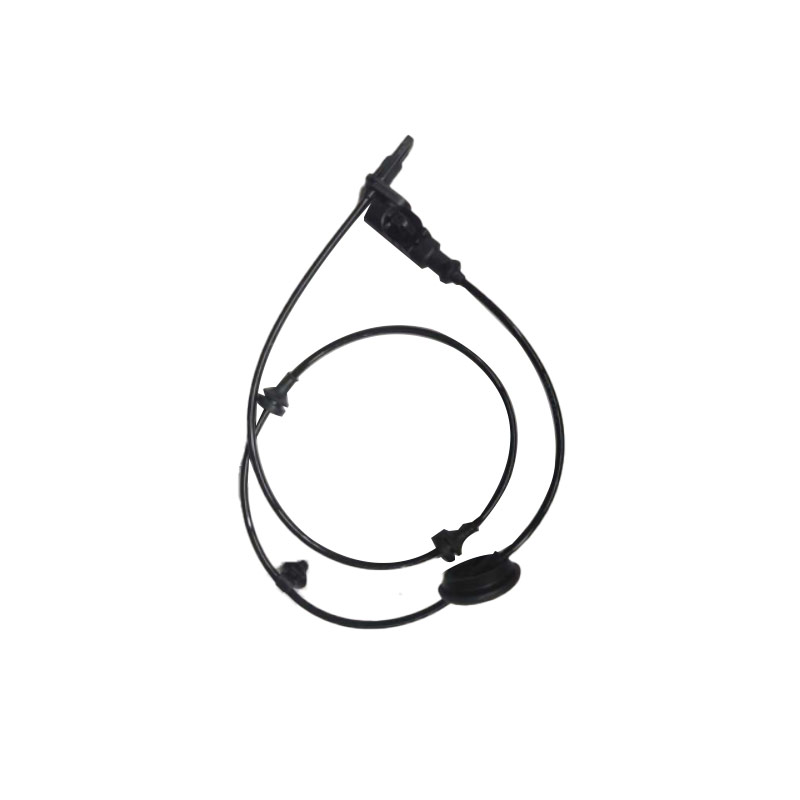

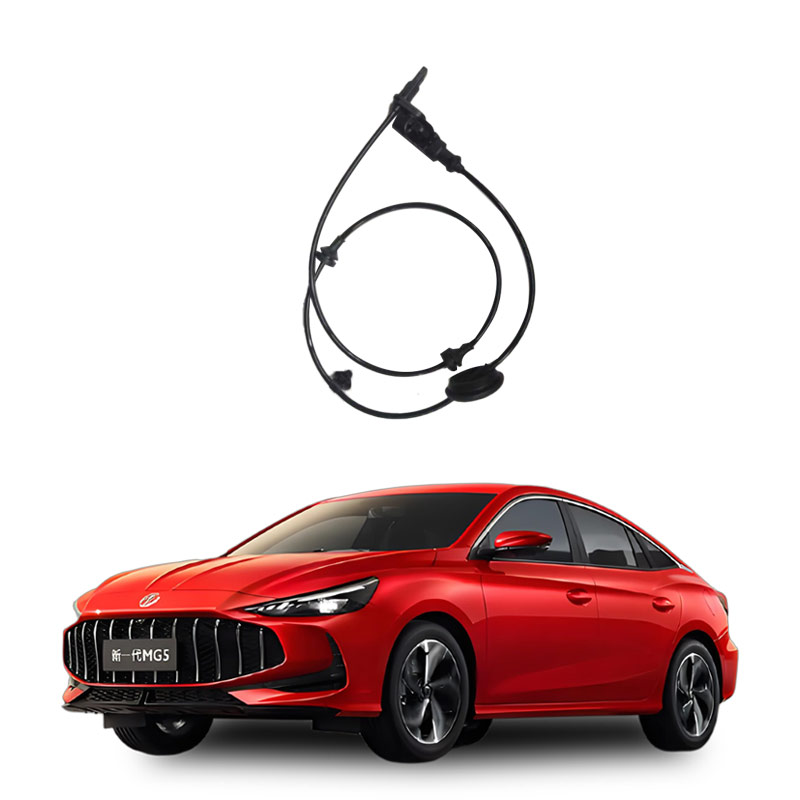

What is an automotive ABS sensor
The abs sensor is applied in the ABS (Anti-lock Braking System) of motor vehicles. In the ABS system, inductive sensors are mostly used to monitor the vehicle speed. The abs sensor works in conjunction with the gear ring that rotates synchronously with the wheels to output a set of quasi-sinusoidal alternating current electrical signals. The frequency and amplitude of these signals are related to the wheel speed. This output signal is transmitted to the ABS electronic control unit (ECU) to achieve real-time monitoring of wheel speed.
The damage of the ABS sensor in a car can lead to the failure of the ABS system, causing problems such as the ABS warning light on the dashboard coming on, the wheels locking up during emergency braking, and a decrease in vehicle stability, significantly increasing the risk of driving safety. However, the vehicle can still be driven with caution and needs to be repaired as soon as possible.
The main symptoms of are
ABS sensor failure can trigger the following typical symptoms, directly affecting driving safety:
Youdaoplaceholder0 ABS fault light on : The dashboard displays an ABS warning light, indicating a system anomaly.
Youdaoplaceholder0 Wheels lock up during emergency braking : When braking suddenly, the wheels lock up, causing the vehicle to skid, lose control or roll sideways.
Youdaoplaceholder0 Brake performance decline : the brake pedal becomes harder, the stroke lengthens, and the braking distance increases.
Youdaoplaceholder0 Reduced vehicle stability : The vehicle is prone to fishtailing when turning or on slippery roads, and the electronic stability system (such as ESP) may fail.
The specific impact of on driving safety
The core risk of ABS sensor damage lies in the weakening of active safety capabilities:
Youdaoplaceholder0 Deterioration of handling : After the wheels lock up, the direction becomes difficult to control, especially at high speeds or during emergency evasive maneuvers, and the probability of accidents increases significantly.
Youdaoplaceholder0 Extended braking distance : Weakened braking effect, longer parking time required, and higher risk in rainy and snowy weather.
Youdaoplaceholder0 Associated system failure : may affect systems that rely on wheel speed data, such as traction control or automatic cruise control functions.
The following is a video about the impact of ABS sensors:
Youdaoplaceholder0 Other potential effects
In addition to direct security risks, the following problems may also be triggered:
Youdaoplaceholder0 Legal liability and compliance : In regions where ABS is mandatory, faulty vehicles may fail the annual inspection or face penalties.
Youdaoplaceholder0 Increased maintenance costs : Delayed maintenance may cause damage to other components of the braking system, such as brake pads or three-way catalytic converters, further pushing up costs.
Youdaoplaceholder0 Driving experience decline : unstable engine idling, delayed acceleration or deviation in the speed display on the instrument panel.
The ABS sensors of automobiles are indeed divided into front, rear, left and right. Youdaoplaceholder0 each wheel is equipped with an independent sensor, corresponding to the four positions of front left, front right, rear left and rear right respectively , which are used to monitor the rotational speed of each wheel in real time to ensure the stable operation of the braking system.
The number and location distribution of ABS sensors
The standard configuration of is four sensors : the ABS systems of the vast majority of modern cars (including sedans and SUVs) are equipped with one sensor on each wheel, namely one on the front left, one on the front right, one on the rear left and one on the rear right, totaling four. For instance, models like the Volkswagen Lavida explicitly adopt this design.
Youdaoplaceholder0 Installation position : The sensor is usually located on the inner side of the wheel, specifically on the outside of the hub bearing, the inner ring of the brake disc or near the brake caliper. It can only be observed when the vehicle is lifted. Special vehicle models such as trucks may have slight differences, but the core principle remains that each wheel is independently configured.
Youdaoplaceholder0 Marking and function description
Youdaoplaceholder0 identification rule : sensors are positioned by code, for example:
VL or LF stands for Front Left.
VR or RF stands for Front Right.
HL or LR stands for Rear Left.
HR or RR stands for Rear Right.
Youdaoplaceholder0 Core function : Each sensor independently monitors the rotational speed data of the corresponding wheel and transmits the signal to the ABS control unit. When braking suddenly, the system compares the data of each wheel to prevent wheel locking, avoid vehicle skidding or veering off course, thereby shortening the braking distance and enhancing driving stability.
Youdaoplaceholder0 exception statement
A few vehicle models may reduce the number of sensors due to design differences, for example:
Some models of Mercedes-Benz sedans are equipped with three sensors (left front, right front and rear wheel differentials).
Some trucks or older models may only be equipped with two sensors (left rear and right rear brake pads), but such cases are less common and are usually used for skidding detection rather than the standard ABS function.
